Remote control unit

Operating this unit

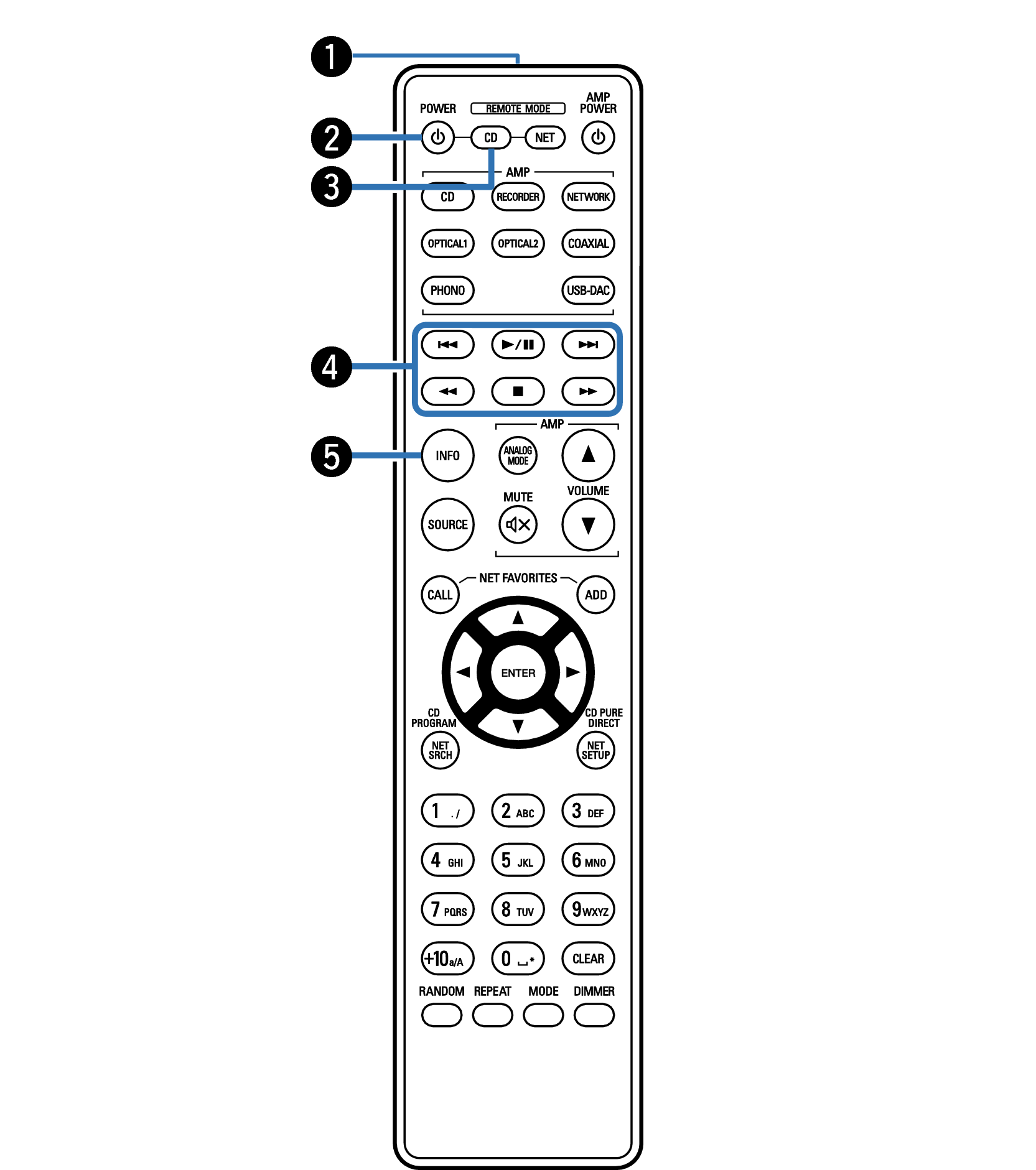

Name RC1213 1

Signal transmitter

This transmits signals from the remote control unit.link

Power operation button (POWER Power Button )

This turns the power on/off (standby).link

Remote mode select button (REMOTE MODE CD)

This switches the remote control operating mode to CD.

System buttons

These perform playback related operations.

Skip buttons ( Skip-Left / Skip-Right )

Play/pause button ( Triangle Right / Pause )

Fast-reverse/Fast-forward buttons ( Rewind / Forward )

Stop button ( Square Black )

Information button (INFO)

This switches the track information shown in the display during playback.

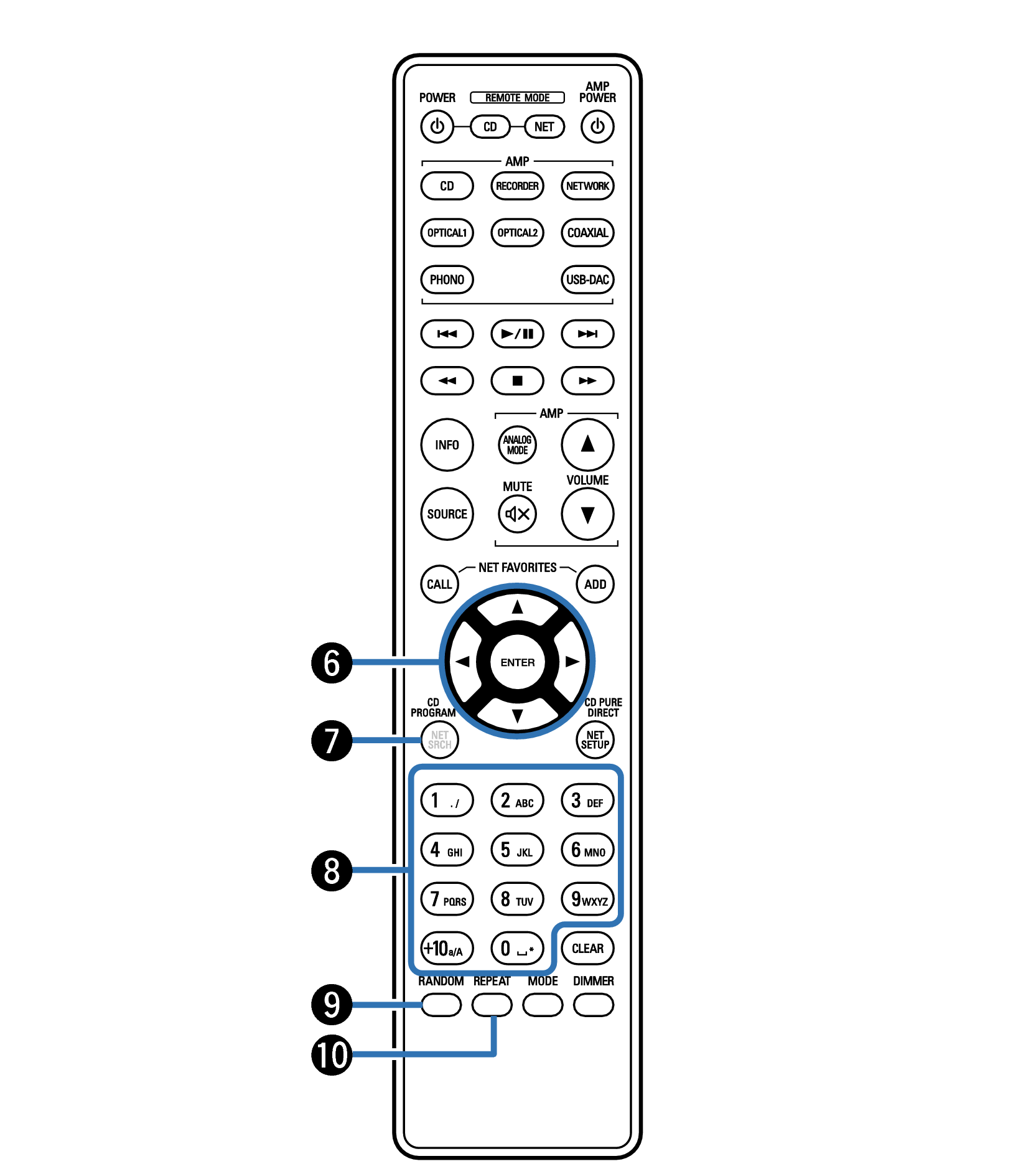

Name RC1213 2

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

CD PROGRAM button

This sets program playback. link

Number buttons (0 – 9, +10)

These enter numbers into the unit.

RANDOM button

Switches the random playback.

REPEAT button

Switches the repeat playback.

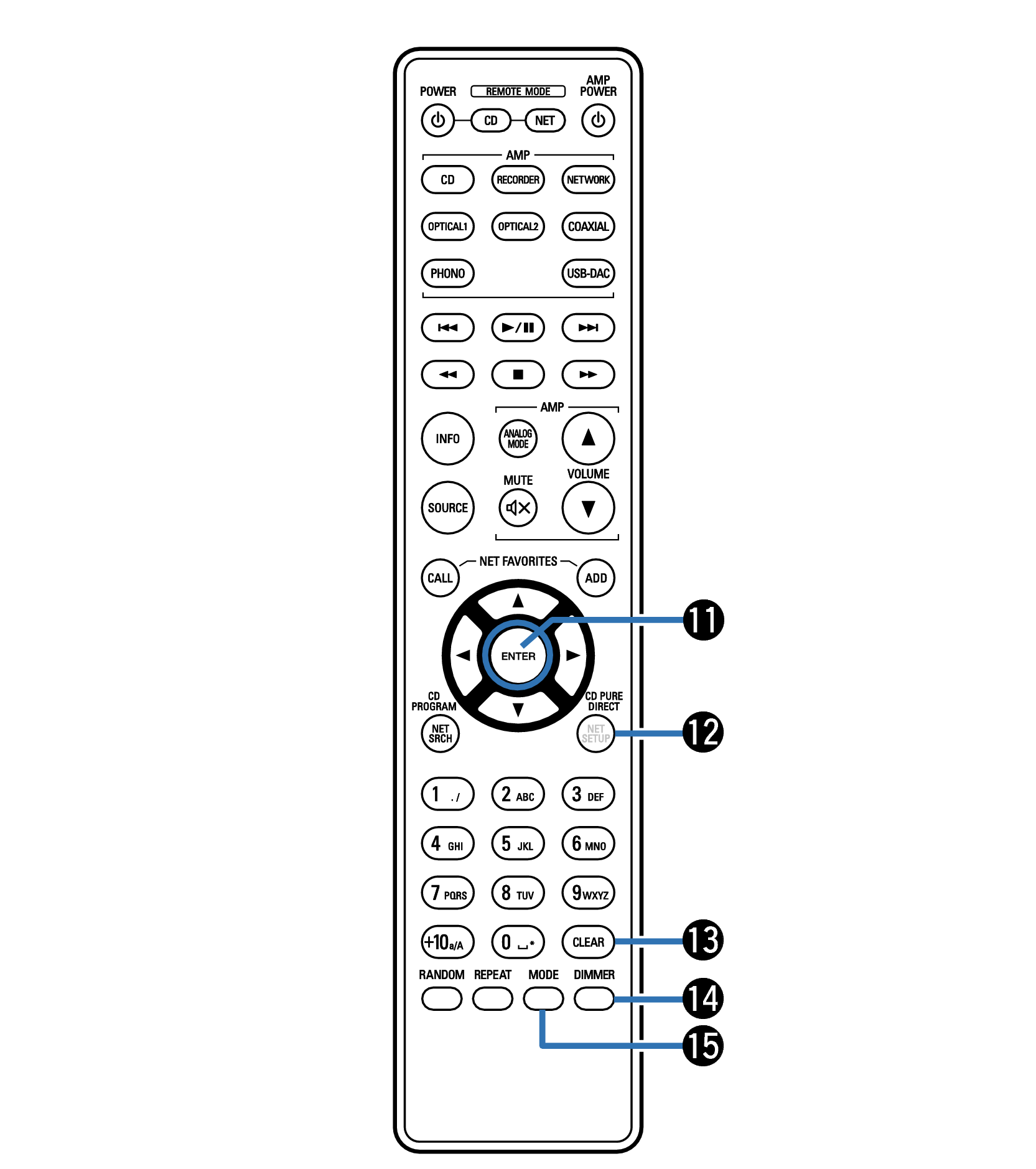

Name RC1213 3

ENTER button

This determines the selection.

CD PURE DIRECT button

This switches the Pure Direct mode. link

CLEAR button

This clears the program registration.link

DIMMER button

This switches the brightness of the display. link

MODE button

This switches the playback mode.link

This switches the playback layer of a Super Audio CD.

You cannot use the SOURCE button for the operation of this unit.

Amplifier operations

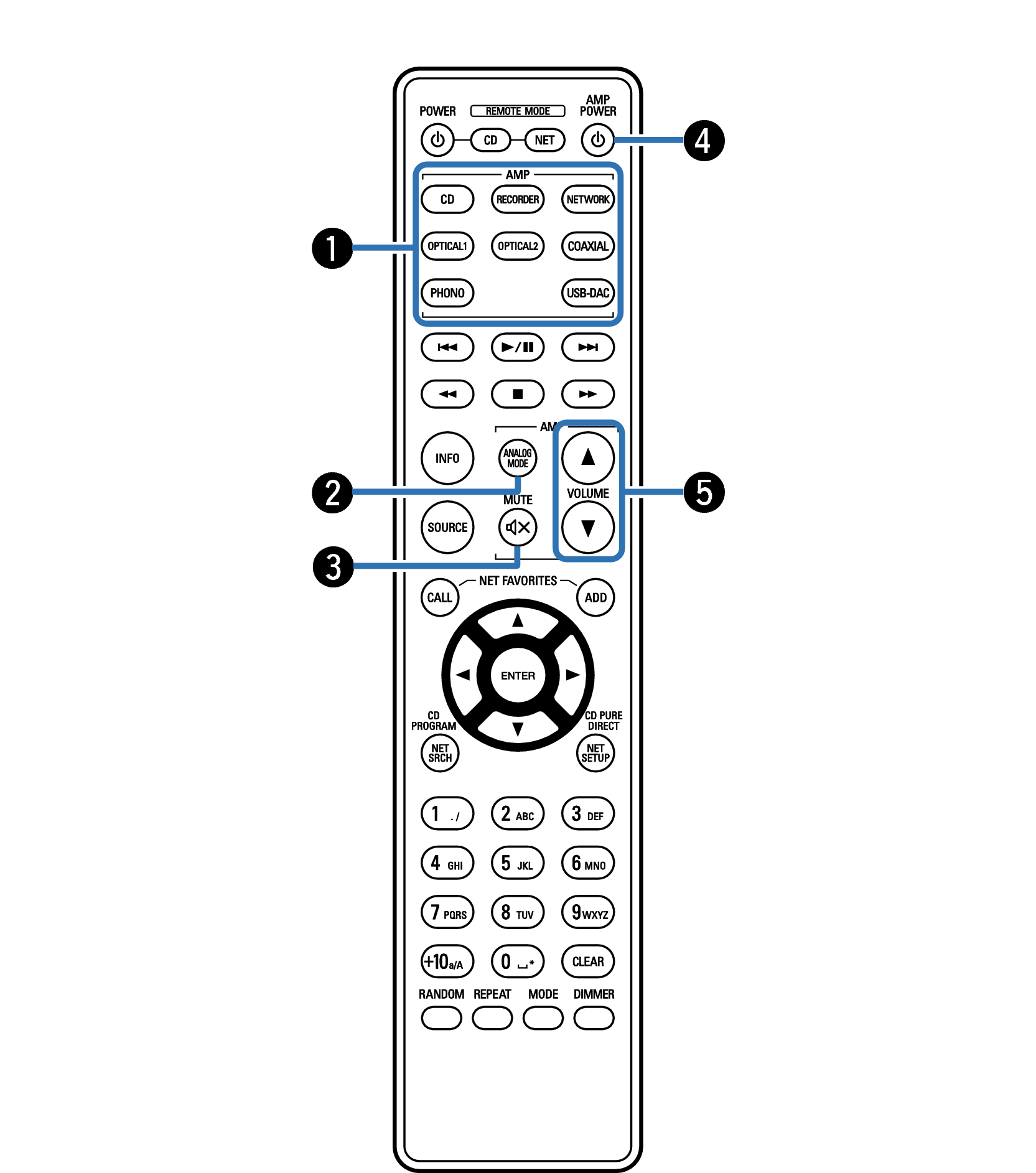

Name RC1213 4

A Denon amplifier can be operated.

Input source select buttons

ANALOG MODE button

MUTE button ( Silent )

Power operation button (AMP POWER Power Button )

VOLUME buttons ( kurosankaku Sankaku-Reverse )

NOTE

The remote control may not operate some products.

Network audio player operations

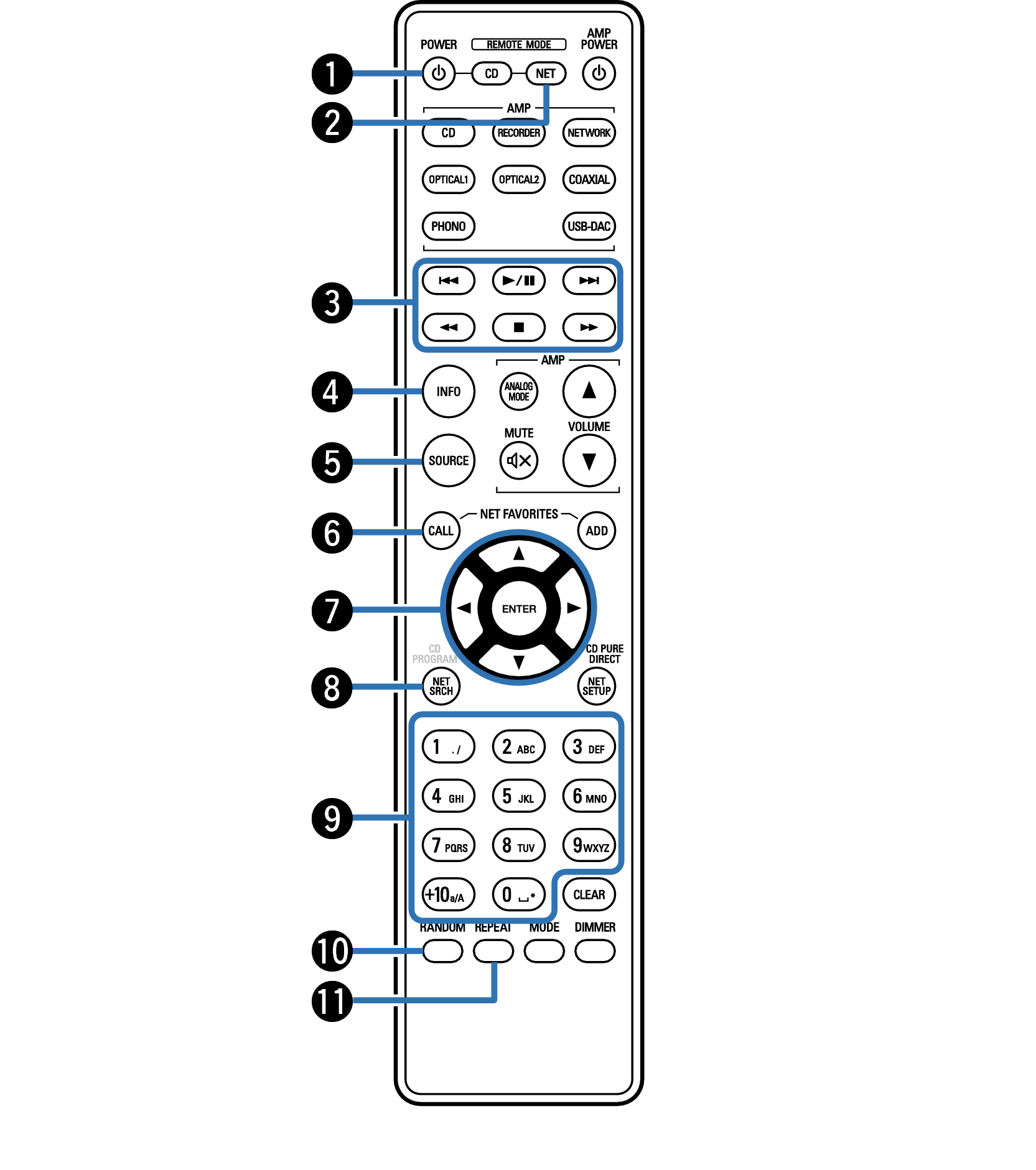

Name RC1213 5

To operate a Denon network audio player, press the REMOTE MODE NET button to switch the remote control to the network audio player operation mode.

Power operation button (POWER Power Button )

Remote mode select button (REMOTE MODE NET)

System buttons

Skip buttons ( Skip-Left / Skip-Right )

Play/pause button ( Triangle Right / Pause )

Fast-reverse/Fast-forward buttons ( Rewind / Forward )

Stop button ( Square Black )

Information button (INFO)

SOURCE button

NET FAVORITES CALL button

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

NET SRCH button

Number buttons (0 – 9, +10)

RANDOM button

REPEAT button

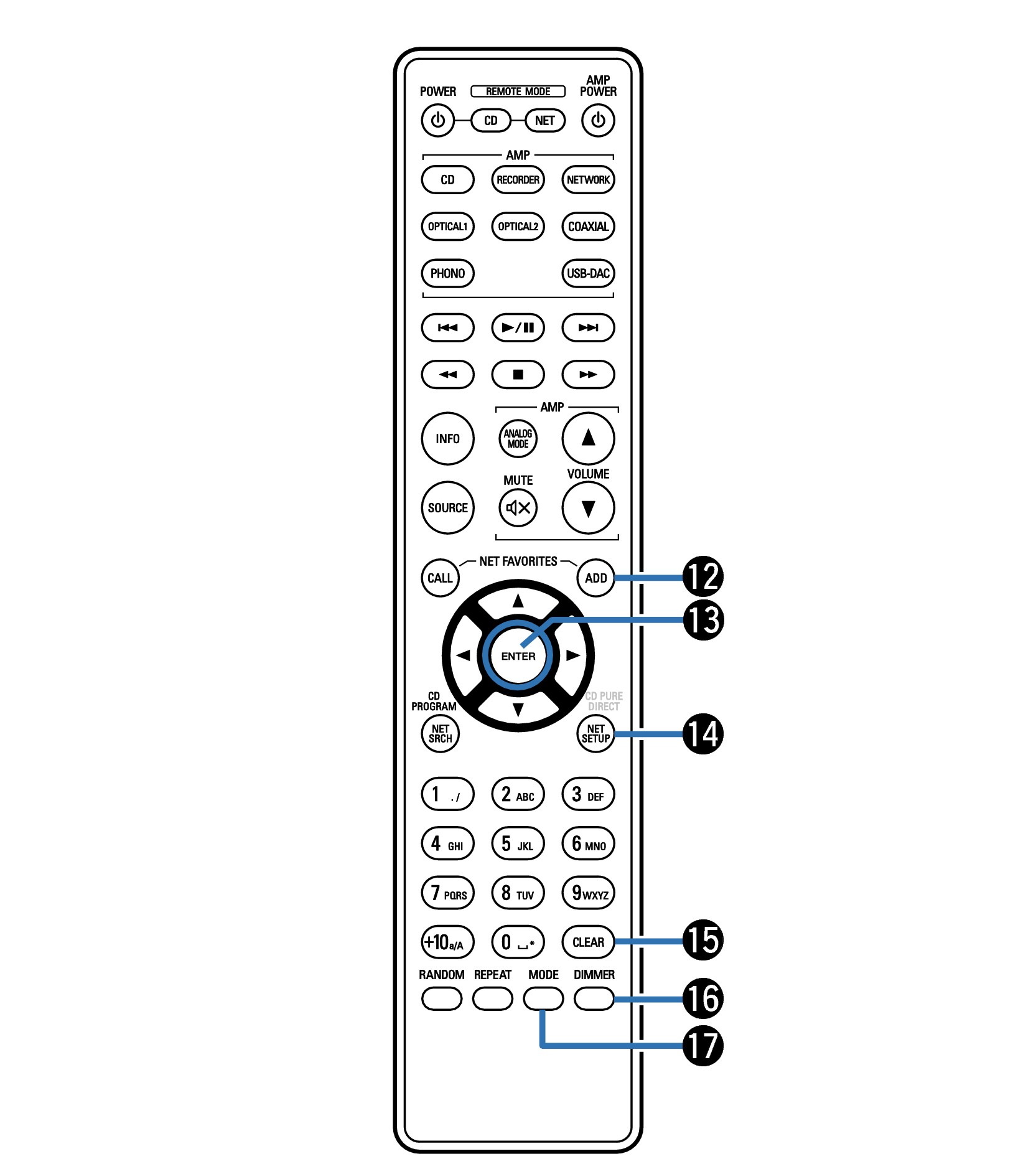

Name RC1213 6

NET FAVORITES ADD button

ENTER button

NET SETUP button

CLEAR button

DIMMER button

MODE button

The amp can be operated with the amp operation buttons even when the remote control mode is “NET”.

When using it, also refer to the operating instructions of the other devices.

The remote control may not operate some products.
