TV equipped with an HDMI connector and incompatible with the eARC or ARC / TV equipped with an optical digital connector

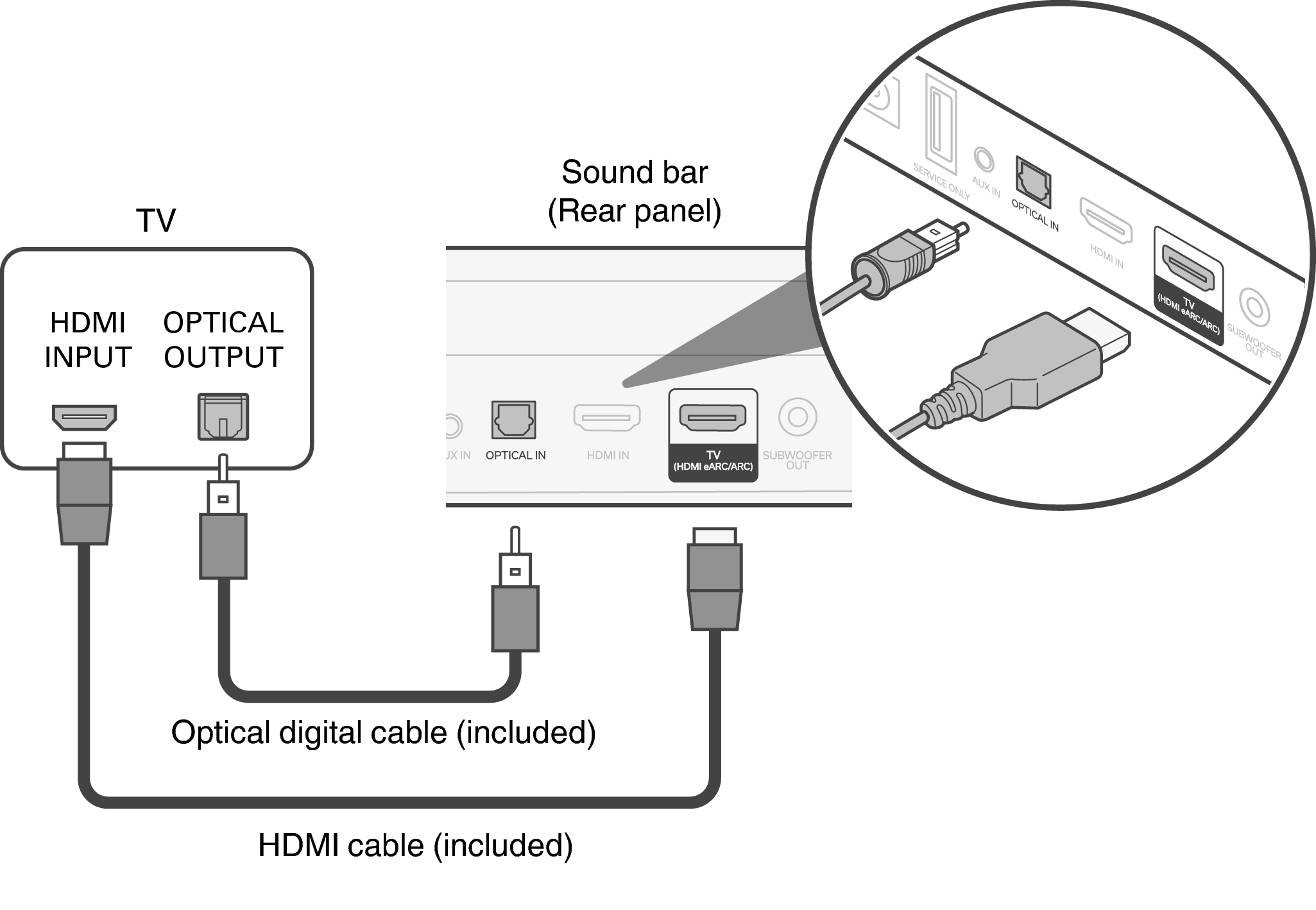

Use the included HDMI and optical cables to connect this unit to your TV.

Connect Bar OPT S217

Line up the optical digital cable with the shape of the terminal to insert.
