Playback

Speaker installation

Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room.

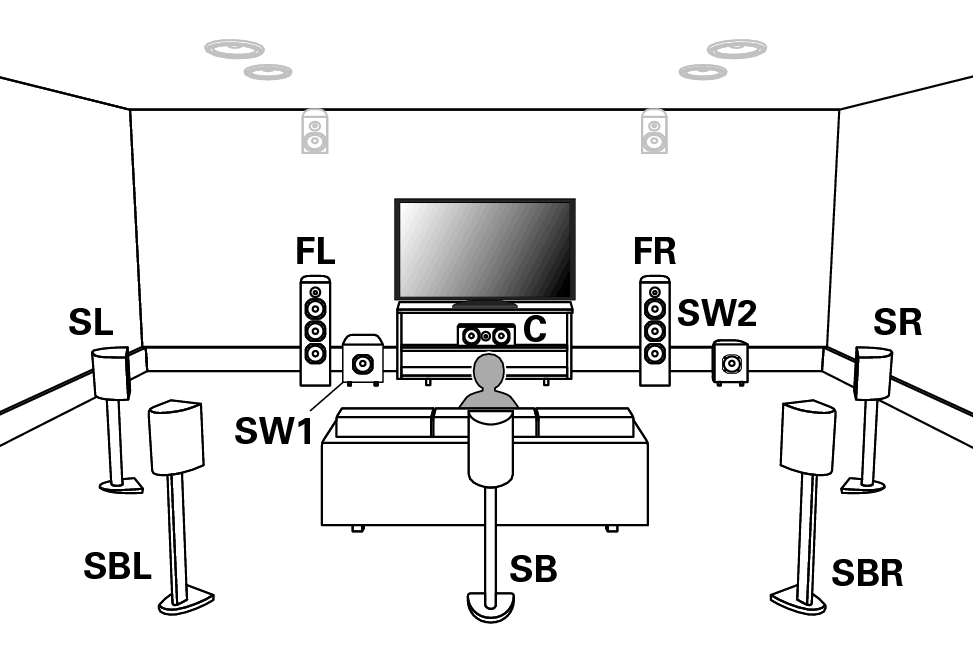

Speaker installation is explained using this example of a typical installation.

Pict SP Position1 X2200

FL/FR
(Front speaker left/right):

Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.

C
(Center speaker):

Place the CENTER speaker in between the front speakers and above or below your TV.

SL/SR
(Surround speaker left/right):

Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position. If you don’t have surround back speakers, move the surround speakers slightly behind your listening position.

SBL/SBR
(Surround back speaker left/right):

Place the SURROUND BACK left and right speakers an equal distance from the main listening position and directly behind the main listening position. When using a single surround back speaker (SB), place it directly behind the listening position.

SW 1/2
(Subwoofer):

Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.

Pict SP Position2 X2200

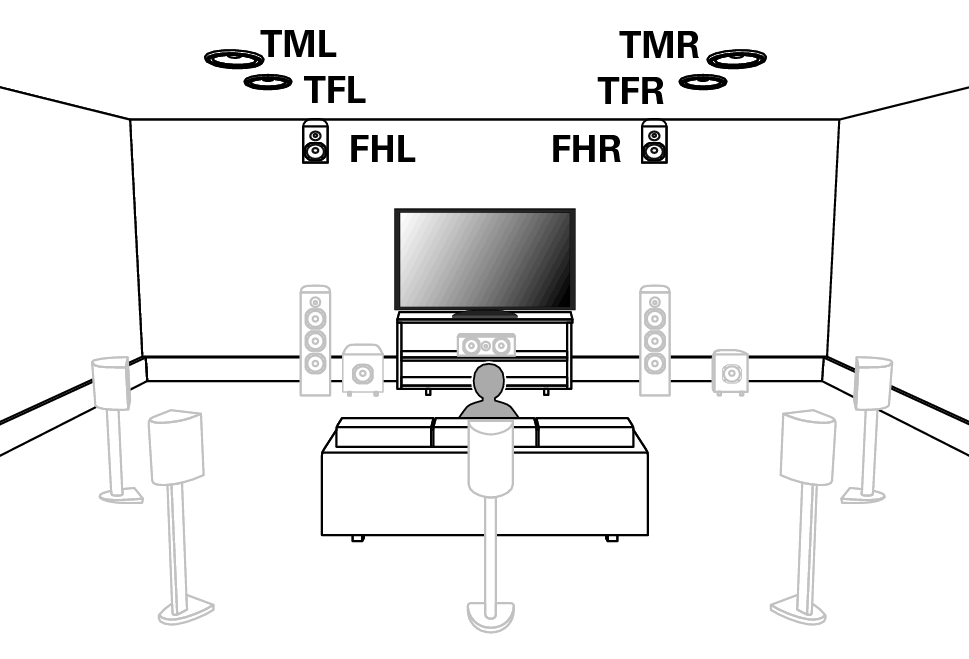

FHL/FHR
(Front height speaker left/right):

Place the FRONT HEIGHT left and right speakers directly above the front speakers. Mount them as close to the ceiling as possible and aim them towards the main listening position.

TFL/TFR
(Top front speaker left/right):

Mount the TOP FRONT left and right speakers on the ceiling slightly in front of your main listening position and aligned with the left and right front speakers.

TML/TMR
(Top middle speaker left/right):

Mount the TOP MIDDLE left and right speakers directly above the main listening position and aligned with the left and right front speakers.

Pict SP Position3 X2200

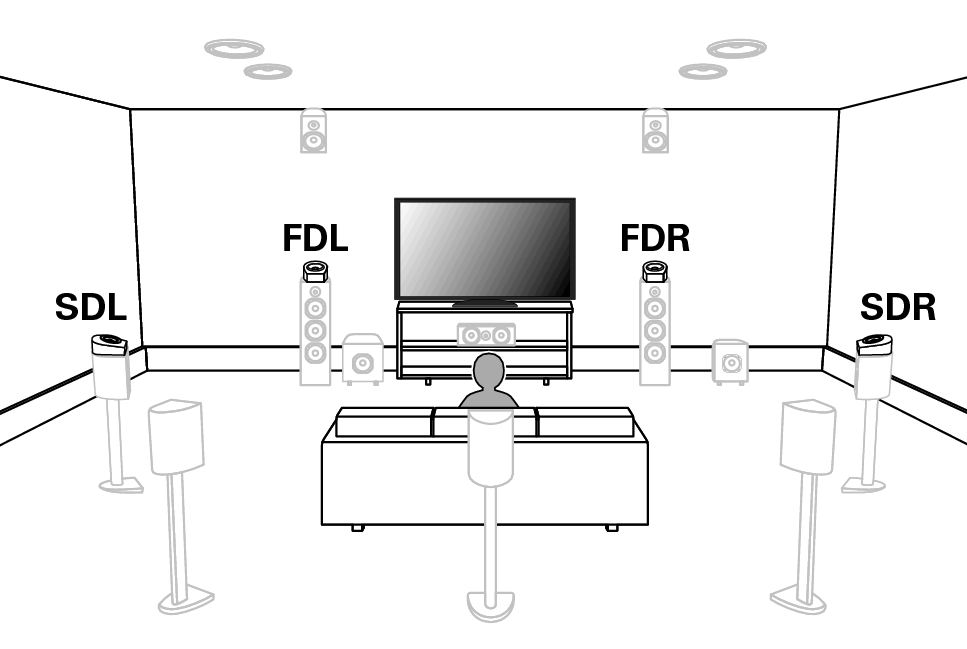

FDL/FDR
(Front Dolby speaker left/right):

Place the FRONT Dolby Atmos Enabled speaker on the front speaker. For a Dolby Atmos Enabled integrated with a front speaker, place the Dolby Atmos Enabled speaker instead of the front speaker.

SDL/SDR
(Surround Dolby speaker left/right):

Place the SURROUND Dolby Atmos Enabled speaker on the surround speaker. For a Dolby Atmos Enabled speaker integrated with a surround speaker, place the Dolby Atmos Enabled speaker instead of the surround speaker.

About Dolby Atmos Enabled speakers

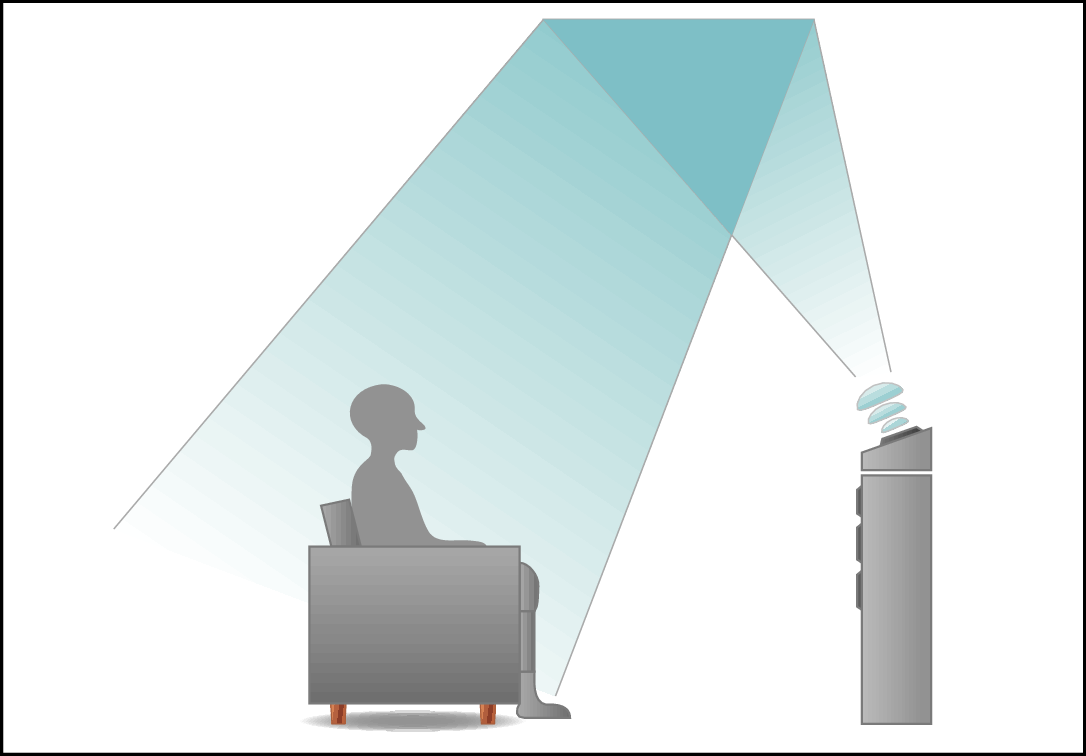

Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward-pointing speaker that is placed on the floor.

You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.

Pict Dolby SP Side

This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation.

The “Speaker Virtualizer” must be set to “On” for Dolby Atmos playback with 5.1-channel speaker configurations or less. link

DTS:X can be selected regardless of the speaker configuration.

Recommended placement of the speakers

Floor speakers Layout

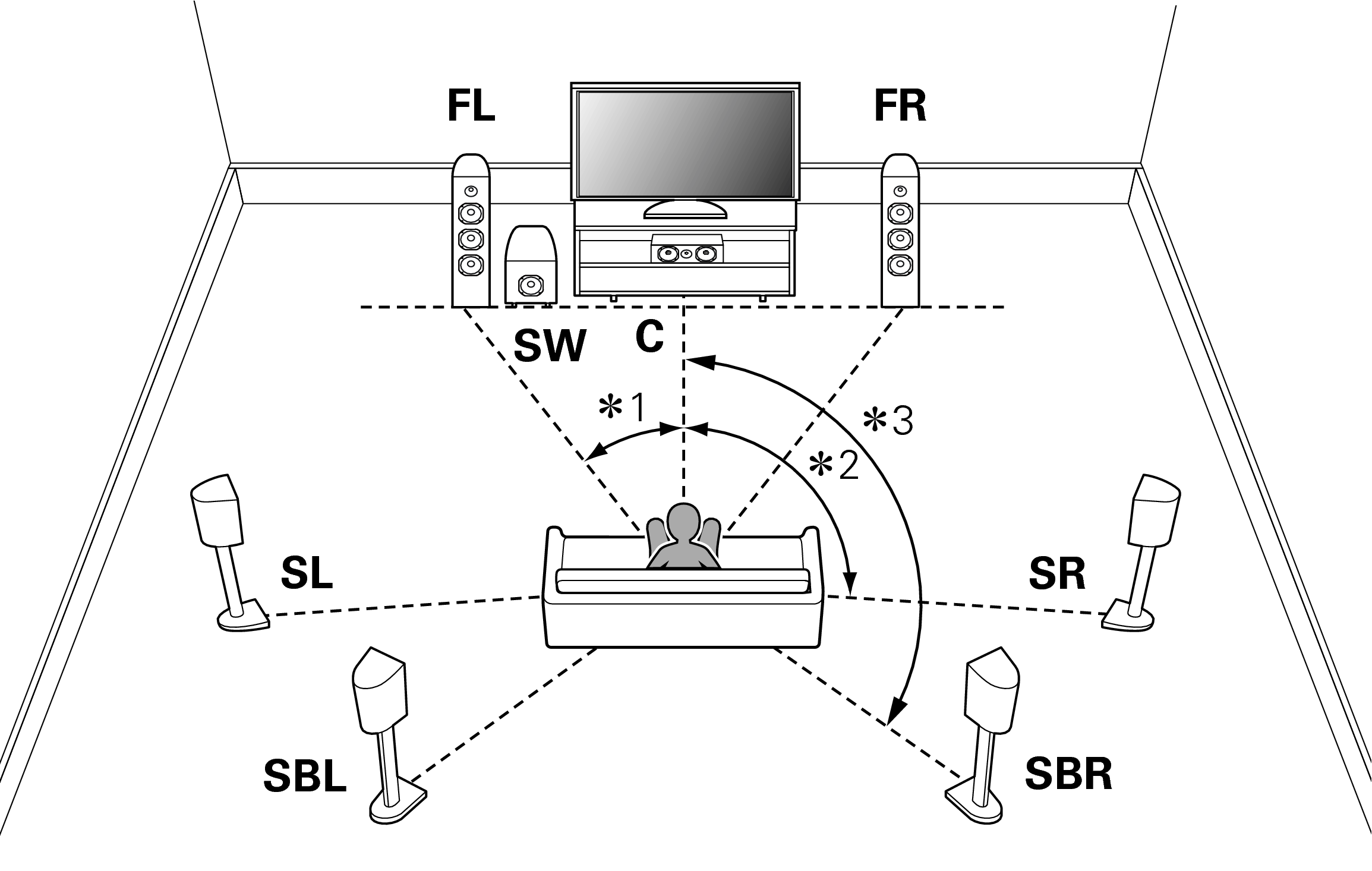

Use the following illustration as a guide for the installation location of each floor speaker. You do not have to match them exactly.

Pict SP Layout 7.1

∗1 22° - 30°  ∗2 90° - 110°  ∗3 135° - 150°

If you are not using the surround back speakers, the recommended angle of the surround sound speakers (∗2) is 120°.

When using a single surround back speaker, place it directly behind the listening position.

Height speakers Layout

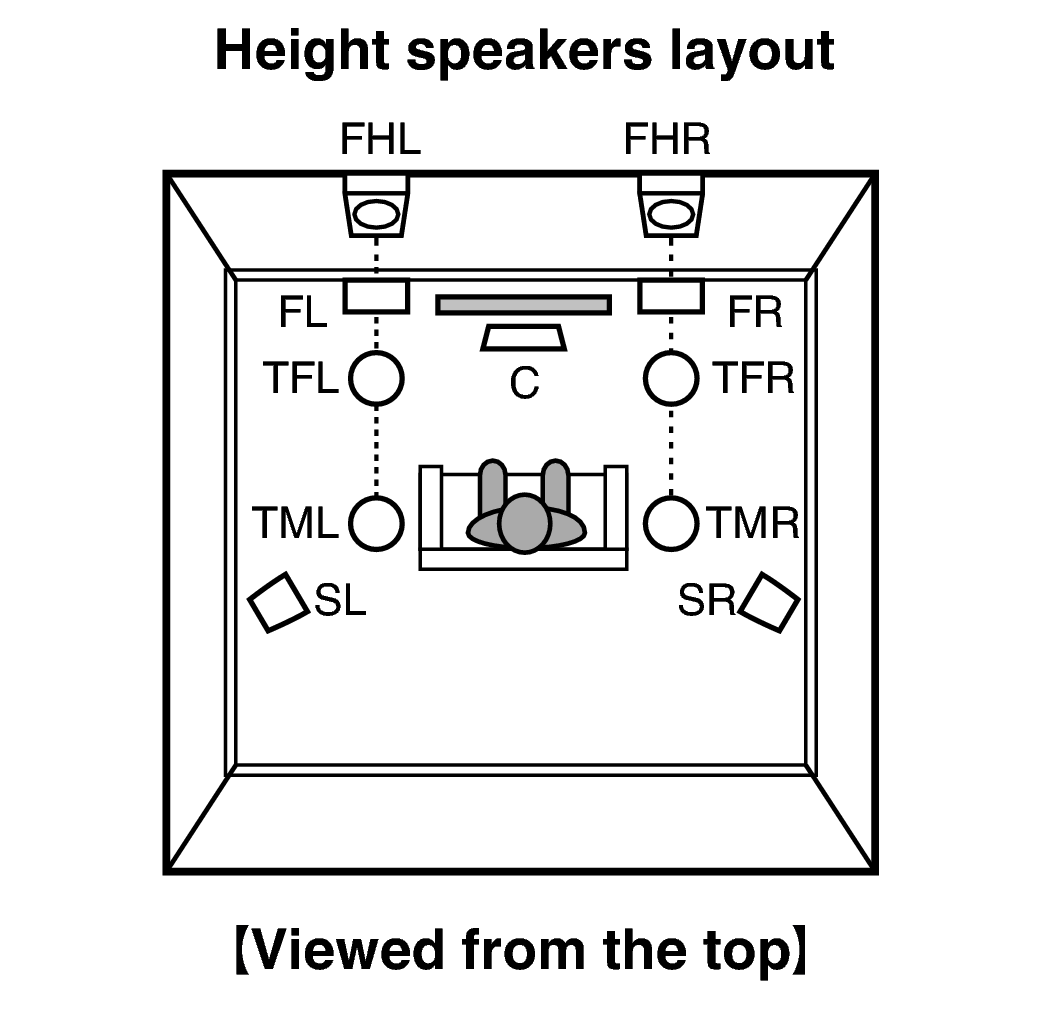

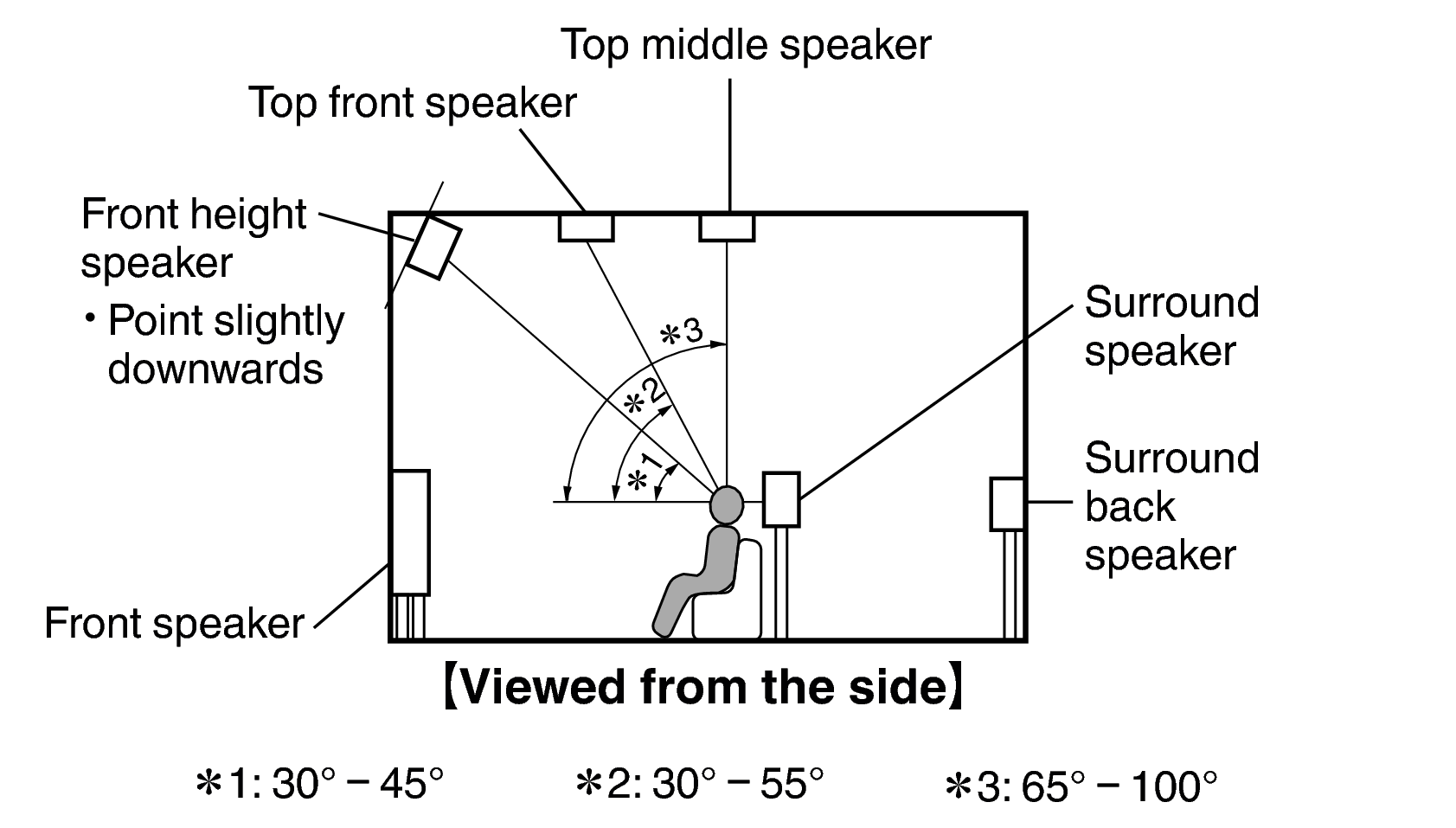

Use the following illustration as a guide for the installation location of each height speaker. You do not have to match them exactly.

Pict SP Layout Side X2200
Pict SP Layout Top X2200
