Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

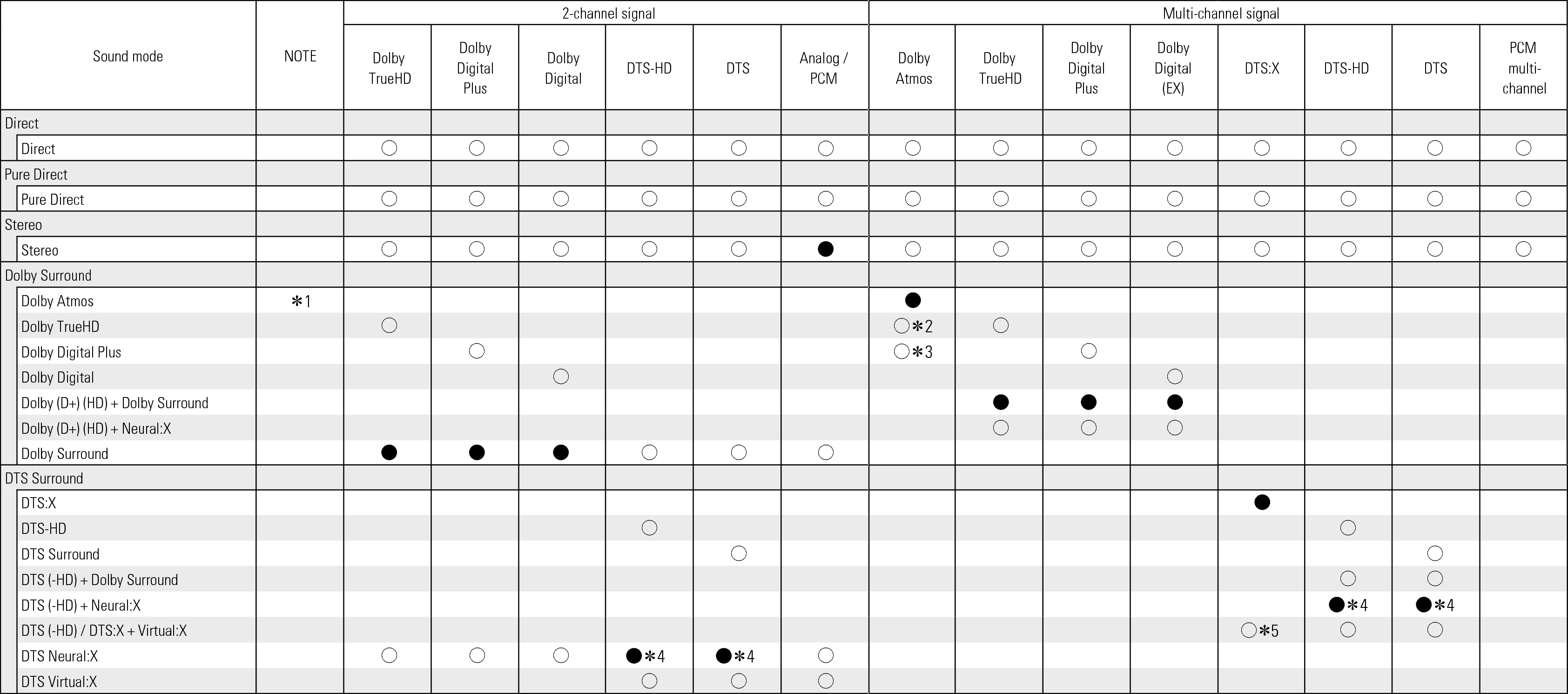

Tsignal & Csound1 S97

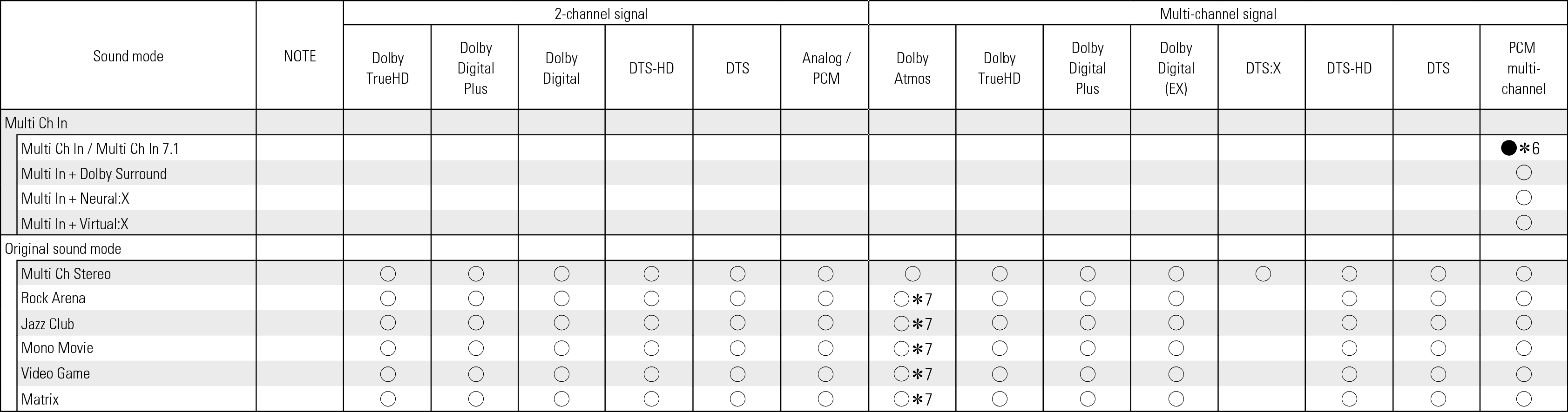

Tsignal & Csound2 S97

This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Front Dolby or Surround Dolby speaker. It can also be selected when the “Surround Parameter” - “Speaker Virtualizer” setting is turned “On”.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.

This can be selected when the Dolby Atmos signal contains the Dolby Digital Plus signal.

This item cannot be selected when a DTS(-HD) format with a sampling frequency of over 48 kHz is input.

This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.

Multi ch In 7.1 can be selected only when the input signals include surround back signals and surround back speakers are being used.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD or Dolby Digital Plus signal.
