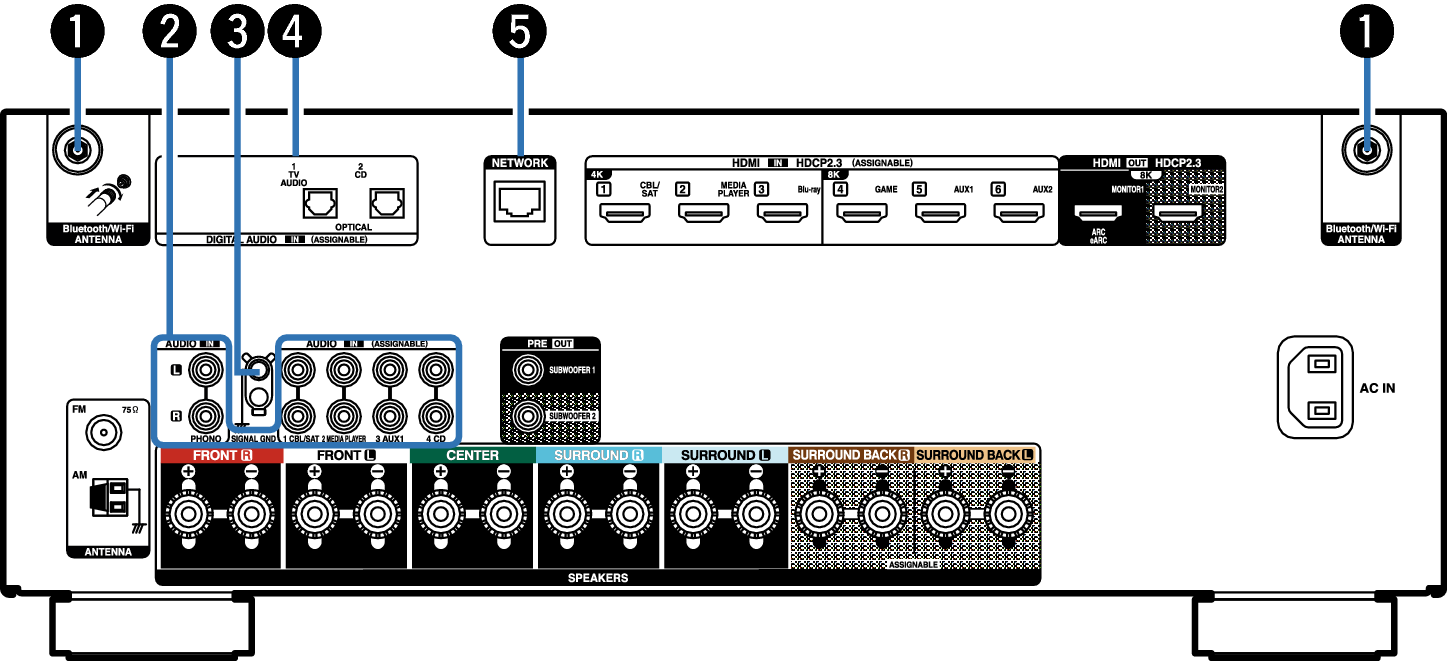

Rear panel
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
SIGNAL GND terminal
Used to connect a ground wire for the turntable. link
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link

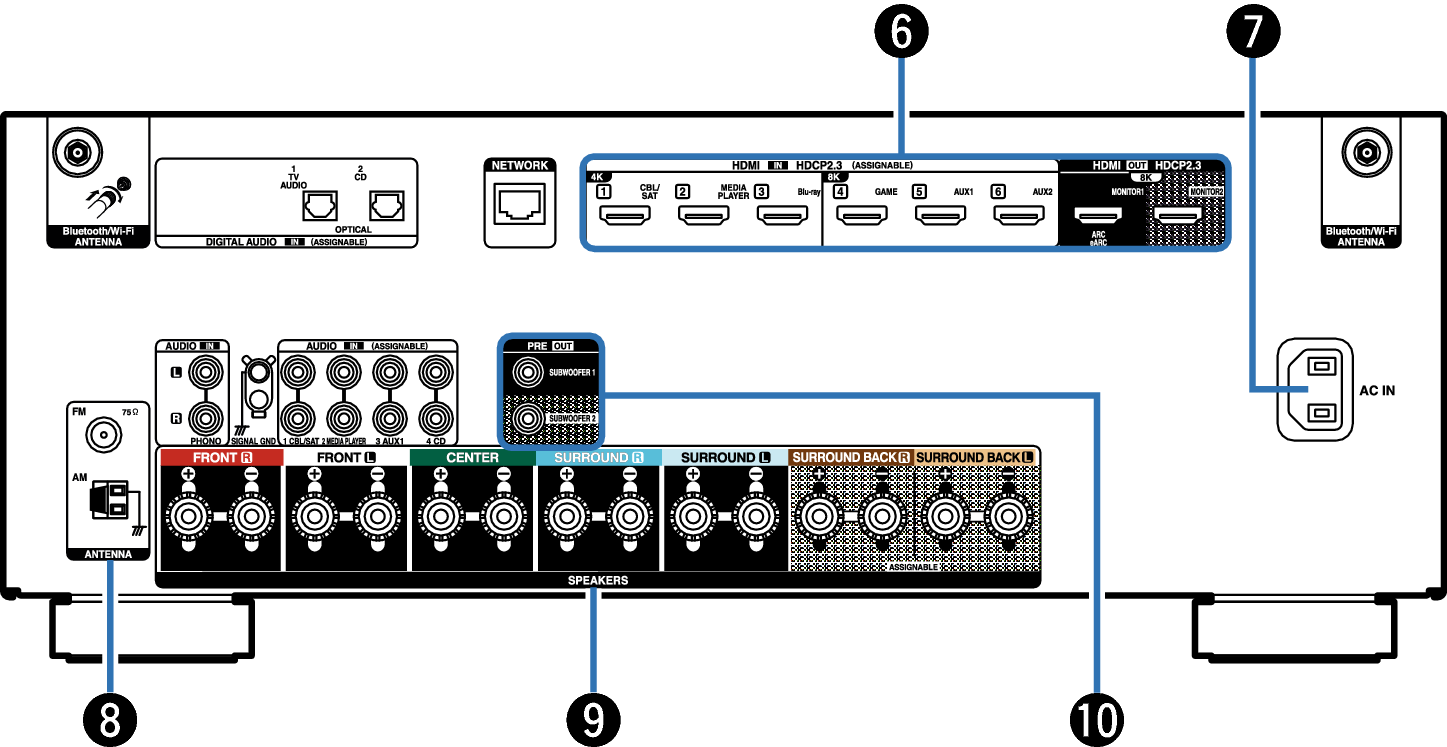

HDMI connectors
Used to connect devices equipped with HDMI connectors.
AC inlet (AC IN)
Used to connect the power cord. link
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. link
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
