Sound modes and surround parameters

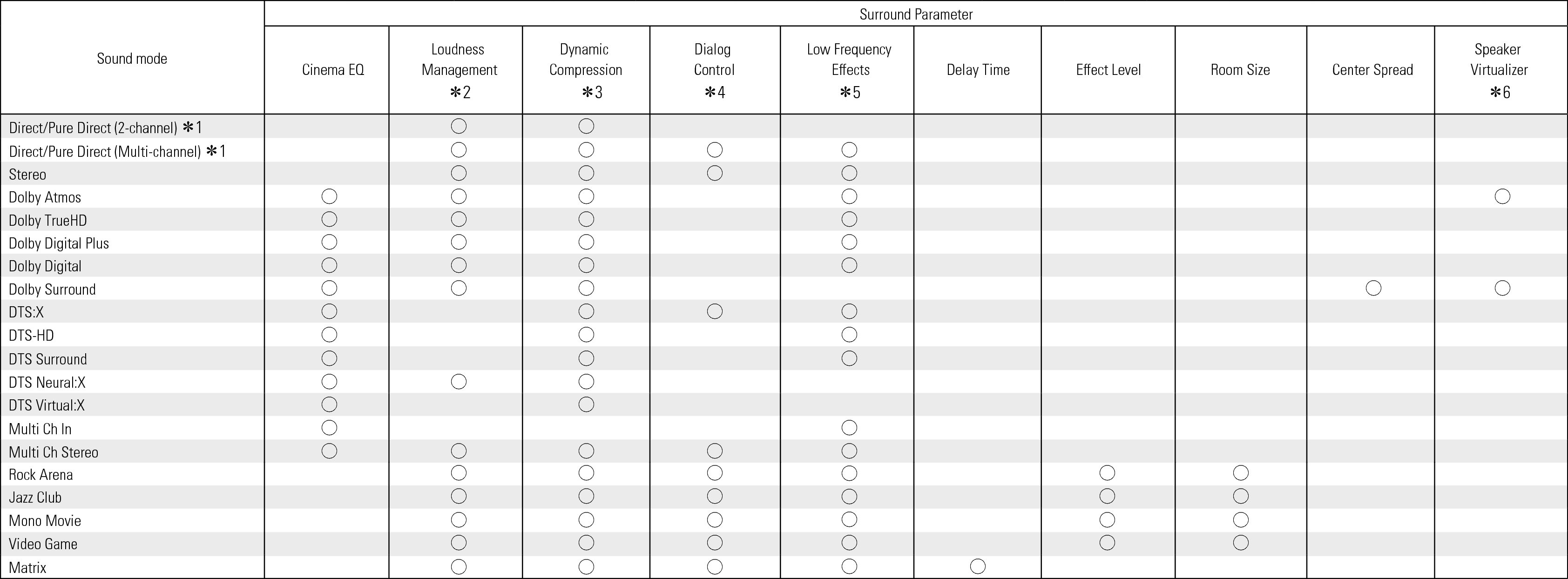

Smode & Spara1 S97

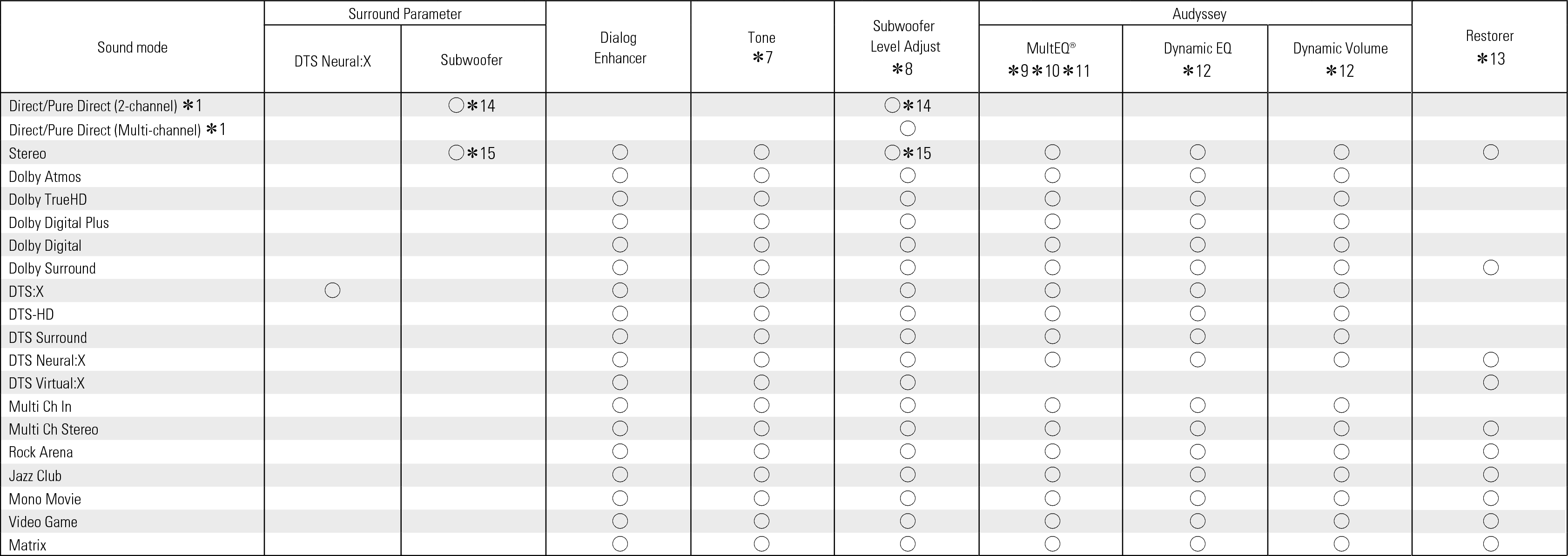

Smode & Spara2 S97

During playback in Pure Direct mode, the surround parameters are the same as in Direct mode.

This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played.

This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X, DTS-HD or DTS signal is played.

This item can be selected when a DTS:X signal that is compatible with the Dialog Control function is input.

This can be set when the LFE signal is included in the input signal.

This item can be set when any Height, Ceiling or Dolby Atmos Enabled speakers are not used, or Surround speakers are not used.

This item cannot be set when “Dynamic EQ” is set to “On”. link

This item cannot be set when “Speaker Layout” - “Subwoofer” in the menu is set to “No”. link

This item cannot be set when Audyssey® Setup (Speaker Calibration) has not been performed.

This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.

This item cannot be set when sound mode is “DTS Virtual:X” or sound mode that have “+Virtual:X” in the sound mode name.

This item cannot be set when “MultEQ®” in the menu is set to “Off”. link

This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.

This setting is available when “Low Frequency Effects” - “Subwoofer Output” in the menu is set to “LFE + Main”. link

This item can be set when “Crossovers” - “Front” is set to other than “Full Range” or “Low Frequency Effects” - “Subwoofer Output” is set to “LFE + Main”. link, link
