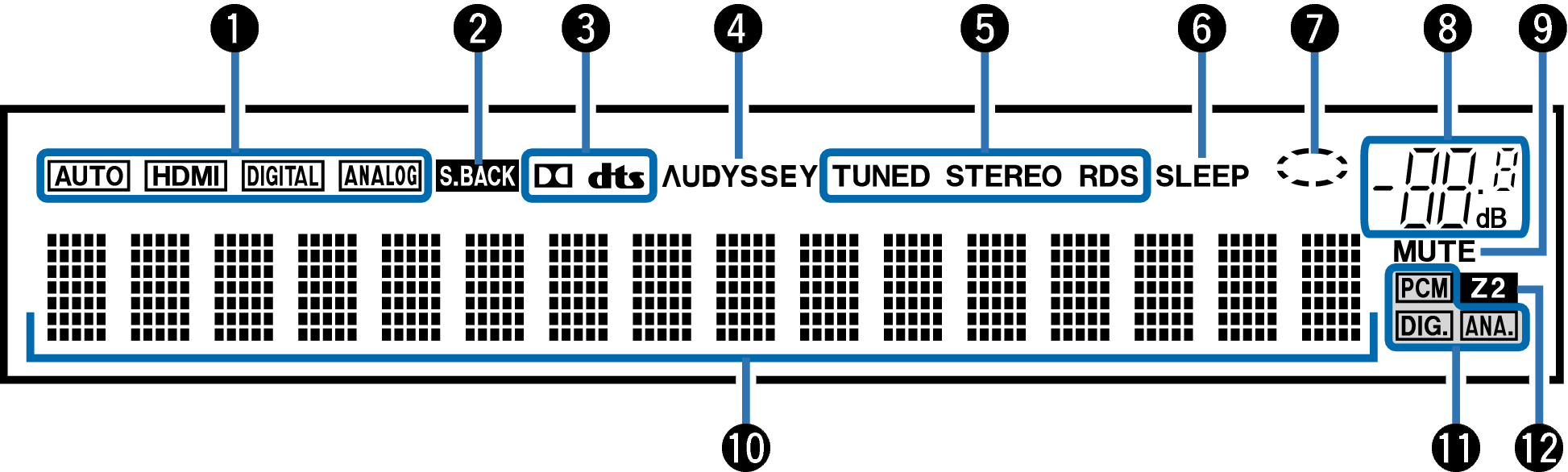

Display
Input mode indicators
These light according to the audio input mode settings of each input source. link
Surround back indicator
This lights when audio signals are being output from the surround back speakers. link
Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.
Audyssey® indicator
This lights when “MultEQ® XT”, “Dynamic EQ” or “Dynamic Volume” has been set up. link
Tuner reception mode indicators
These light up according to the reception conditions when the input source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
RDS : Lights up when receiving RDS broadcasts.
Sleep timer indicator
This lights when the sleep mode is selected. link
Circle indicator
This is displayed when the input source is “Online Music” or “iPod/USB” when you are playing back music.
Volume indicator
MUTE indicator
This blinks while the sound is muted. link
Information display
The input source name, sound mode, setting values and other information are displayed here.
Input signal indicators
The respective indicator will light corresponding to the input signal. link
ZONE2 indicator
This lights up when ZONE2 (separate room) power is turned on. link
