Auto surround playback

This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.
Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.

Press PURE to select “Auto”.

Auto surround playback begins.

Description of sound mode types

Dolby sound mode

Sound mode type

Description

Dolby Surround

This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field.

Dolby Digital

This mode can be selected when playing sources recorded in Dolby Digital.

Dolby TrueHD

This mode can be selected when playing sources recorded in Dolby TrueHD.

Dolby Digital Plus

This mode can be selected when playing sources recorded in Dolby Digital Plus.

Dolby Atmos∗

This mode can be selected when playing back content encoded with Dolby Atmos.
It decodes Dolby Atmos content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use ceiling speakers and Dolby Atmos Enabled speakers to realize a three-dimensional sound field.

Can be selected when using the Surround Back, Front Height, Top Front, Top Middle, Front Dolby or Surround Dolby speakers.

DTS sound mode

Sound mode type

Description

DTS Surround

This mode can be selected when playing sources recorded in DTS.

DTS ES Dscrt6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added using the discrete method is played as an independent channel.
Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.

DTS ES Mtrx6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added to the surround-left and surround-right channels by a matrix encoder at software recording time is decoded by this unit’s matrix decoder and played from each channel (surround left, surround right, surround back).

DTS 96/24

This mode can be selected when playing sources recorded in DTS 96/24.

DTS-HD

This mode can be selected when playing sources recorded in DTS-HD.

DTS Express

This mode can be selected when playing sources recorded in DTS Express.

DTS:X

This mode can be selected when playing back content encoded with DTS:X.
It decodes DTS:X content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout. Use height speakers to realize a three-dimensional sound field.

DTS Neural:X

This mode uses DTS Neural:X Upmixer to extend various sources to natural and realistic multi channels for playback.
Use height speakers such as front height speakers to realize a three-dimensional sound field.

This can be selected when “Speaker Config.” - “Surr. Back” is not set to “None”. link

PCM multi-channel sound mode

Sound mode type

Description

Multi Ch In

This mode can be selected when playing multi-channel PCM sources.

Original sound mode

Sound mode type

Description

Multi Ch Stereo

This mode is for enjoying stereo sound from all speakers.

Rock Arena

This mode simulates the expansive sound of a live concert in an arena.

Jazz Club

This mode simulates the experience of being in an intimate jazz club.

Mono Movie

This mode works with monaural audio sources and delivers a surround sound effect. For optimum channel balance and surround sound effects, connect the monaural source to both of the front (L/R) audio inputs.

Video Game

This mode provides an exciting, dynamic surround sound effect with your favorite action video games.

Matrix

This mode adds a spacious surround sound effect with stereo music sources.

Virtual

This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones.

Auto sound mode

Sound mode type

Description

Auto

In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number.

Stereo sound mode

Sound mode type

Description

Stereo

This mode plays 2-channel stereo audio with no additional surround sound processing.

Sound is output from the front left and right speakers, and subwoofer if connected.

When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.

Direct sound mode

Sound mode type

Description

Direct

This mode plays back audio as recorded in the source.

Pure Direct

This mode plays back an even higher quality sound than the “Direct” mode.
The following circuits are stopped in order to further improve sound quality.

Display indicator circuit of the main body (display will go off.)

The analog video input/output switcher and processor is disabled.

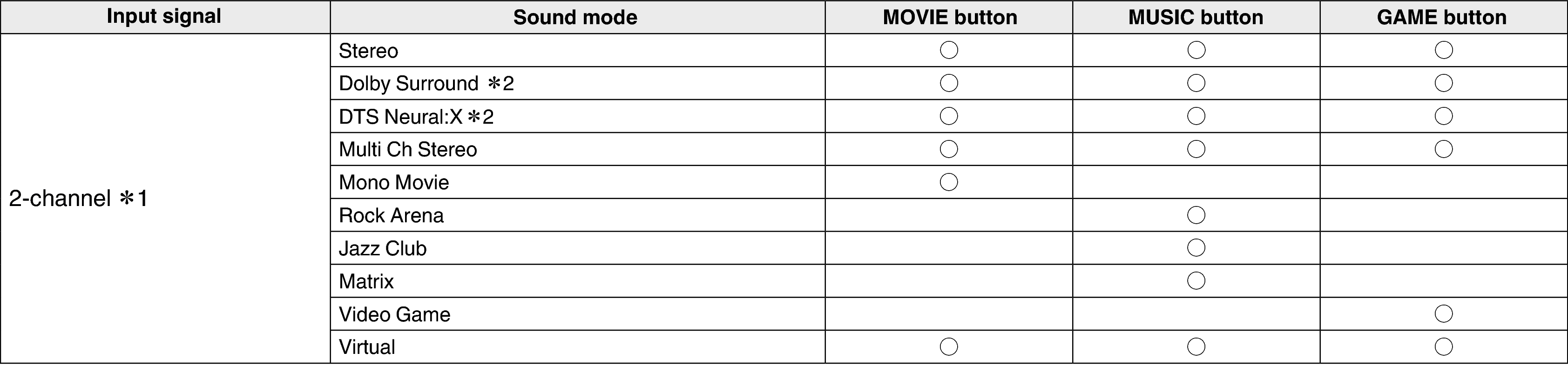

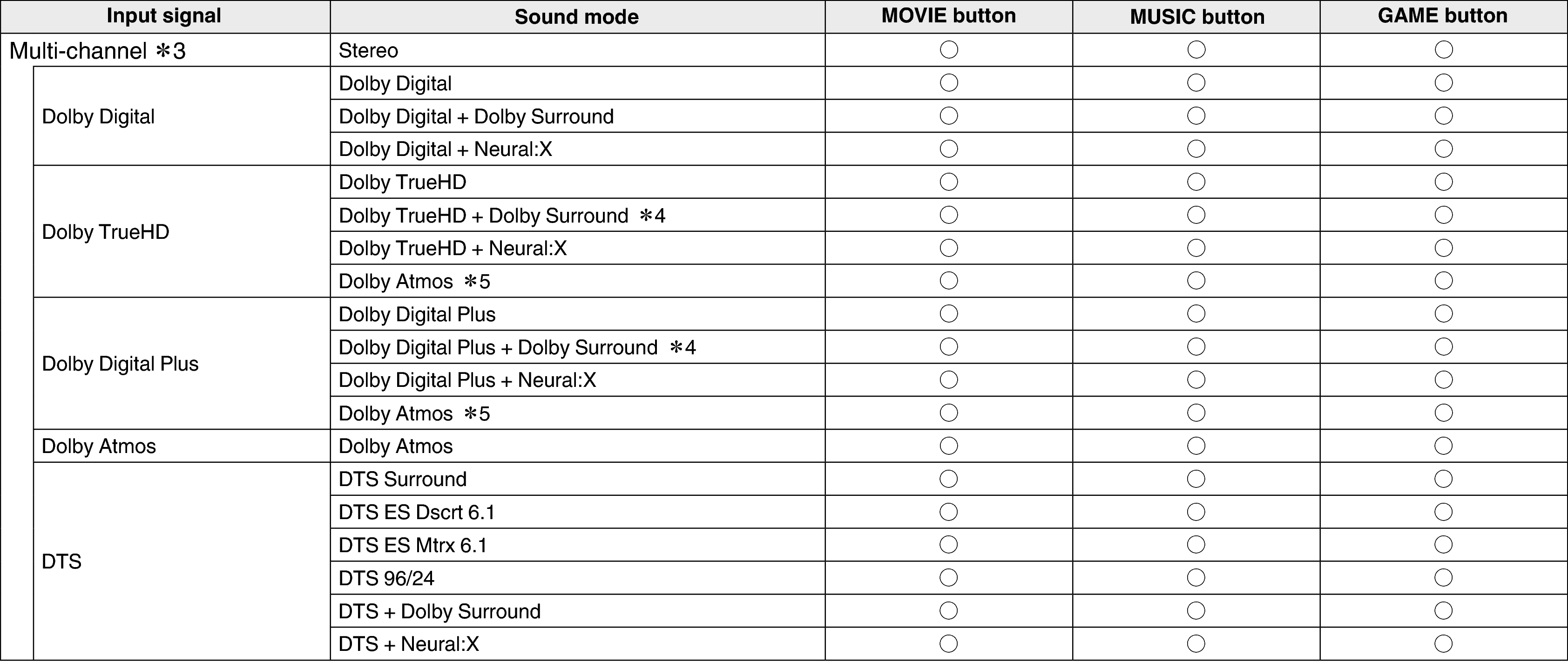

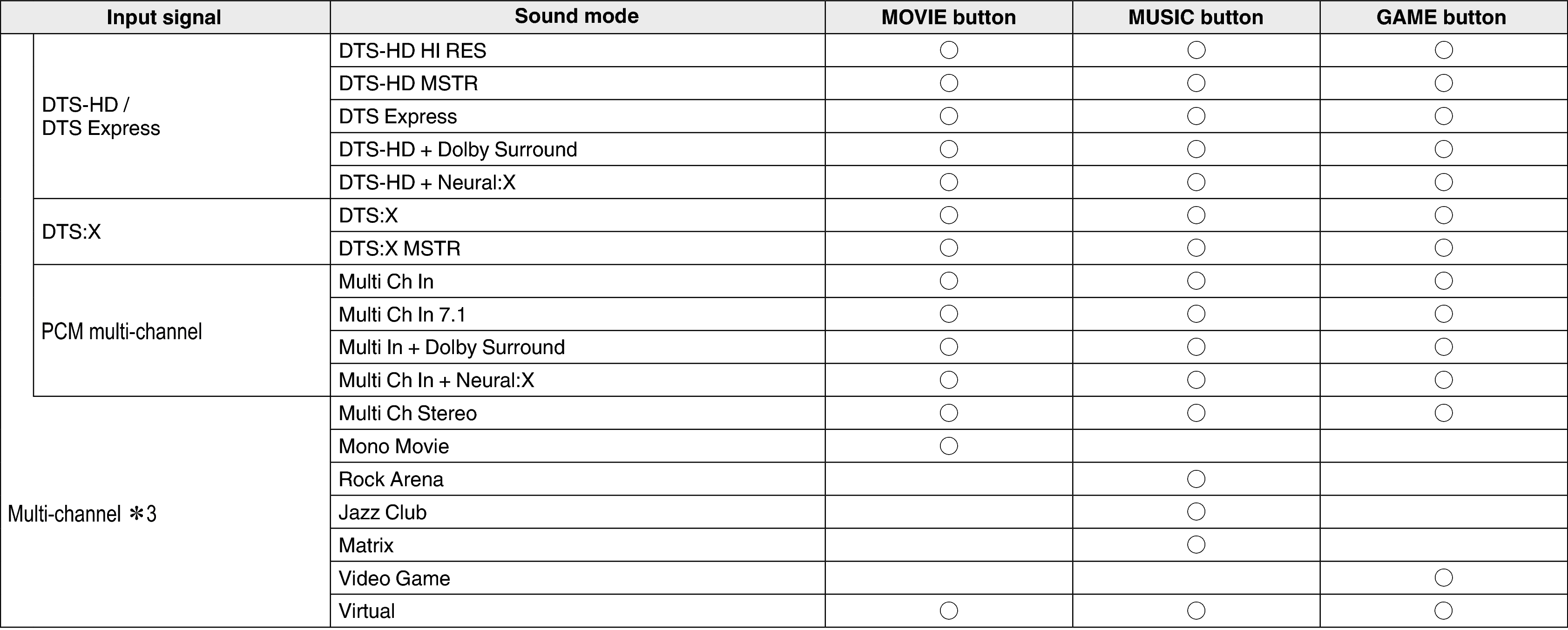

Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

Pict Soundmode1 X4

2-channel also includes analog input.

This mode plays back 2-channel sources in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

Pict Soundmode2 X4

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

Pict Soundmode3 X4

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

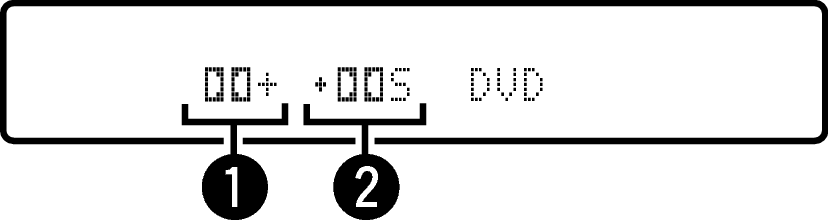

Views on the display

Disp DOLBY DIGITAL X2200

Shows a decoder to be used.

In the case of the Dolby Digital Plus decoder, “ Icon DOLBY ” is displayed.

Shows a decoder that creates sound output.

Icon DOLBY Ds ” indicates that the Dolby Surround decoder is being used.
