Playing music from Bluetooth device

In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device must first be paired with this unit.

Once the Bluetooth device has been paired, it does not need to be paired again.

Press Bluetooth to switch the input source to “Bluetooth”.

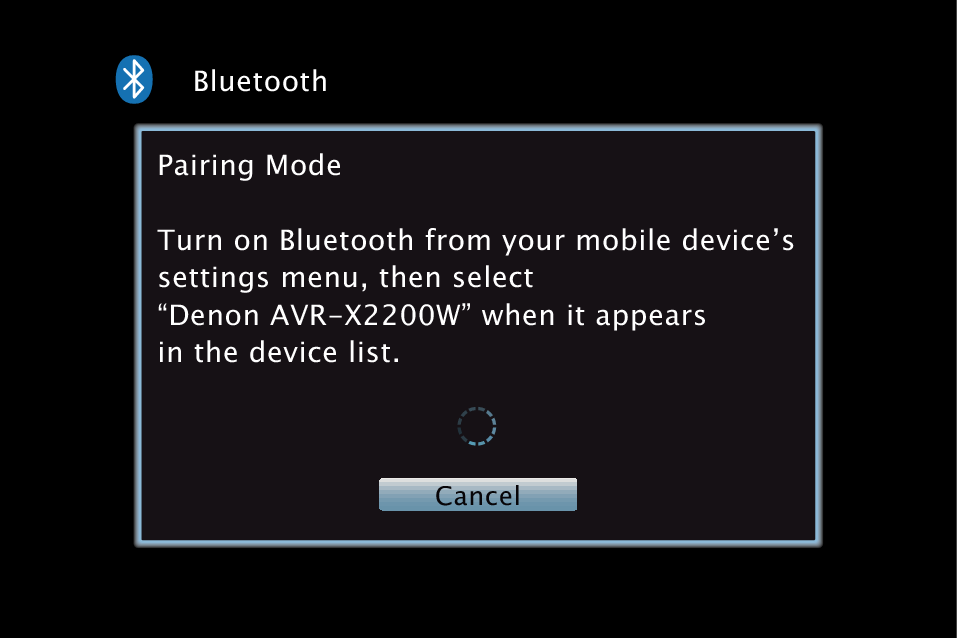

GUI Bluetooth_2200

When using for the first time, the unit will go into the pairing mode automatically and “Pairing...” will appear on the display of the unit.

Activate the Bluetooth settings on your mobile device.
Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth device.

Connect to the Bluetooth device while “Pairing” is being displayed on the display of the unit.
Perform the connection with the Bluetooth device close to the unit (about 1 m).

When a number appears on the display of this unit, check that it is the same number as that shown on the screen of the Bluetooth device and then select “Pair” for both the Bluetooth device and the unit.

At the end of the pairing, the device name appears on the display of this unit.

Play music using any app on your Bluetooth device.

The Bluetooth device can also be operated with the remote control of this unit.

The next time the input source is switched to Bluetooth, this unit automatically connects to the last Bluetooth device that was connected.

Enter “0000” when the password is requested on the screen of the Bluetooth device.

Operation buttons

Function

Operation buttons

Function

Triangle Right / Pause

Playback / Pause

Skip-Left Skip-Right

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fast-forward

ENTER

Playback / Pause

(Press and hold) Stop

shirosankaku shirosankaku-Reverse

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fast-forward

Press STATUS on this unit during playback to switch the display between Title name, Artist name, Album name, etc.

English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

NOTE

To operate the Bluetooth device with the remote control of this unit, the Bluetooth device needs to support the AVRCP profile.

The remote control of this unit is not guaranteed to work with all Bluetooth devices.

Depending on the type of Bluetooth device, this unit outputs audio that is coupled to the volume setting on the Bluetooth device.
