Rear panel

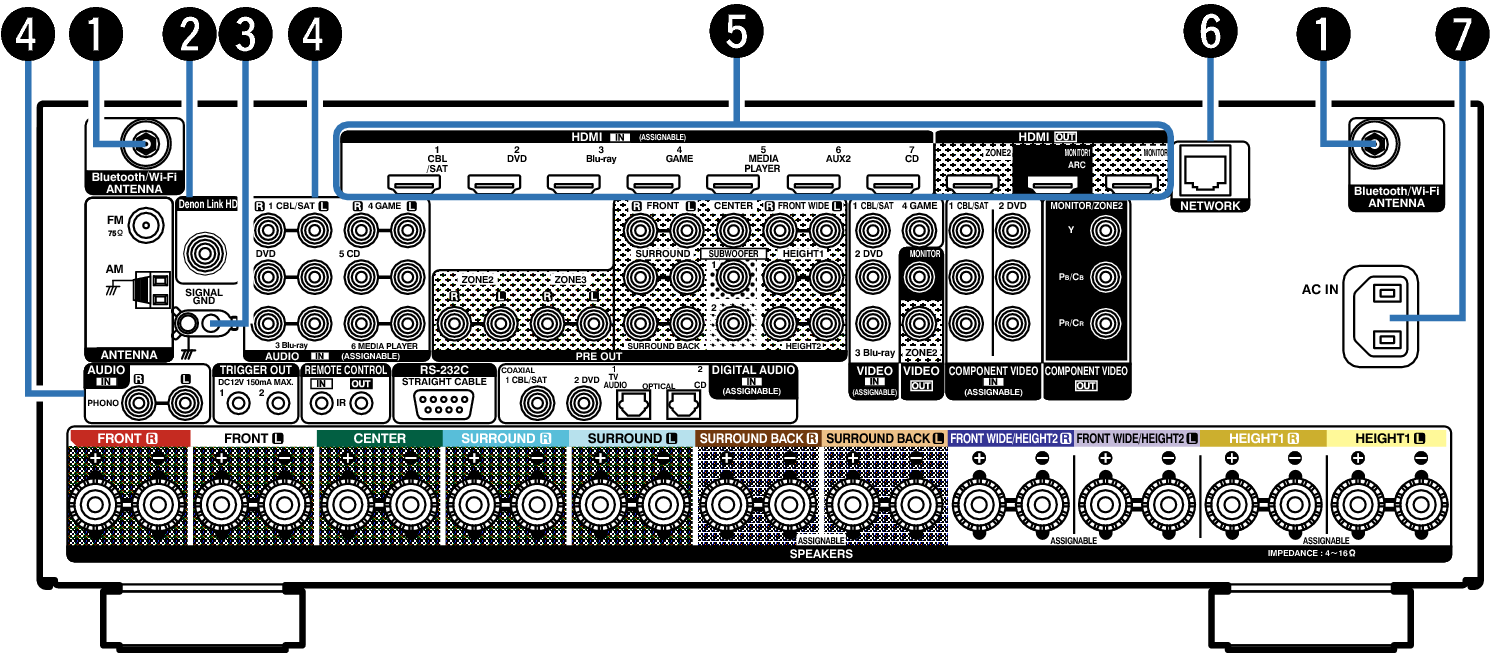

Name Rear Small1 AVRX5200WE2

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

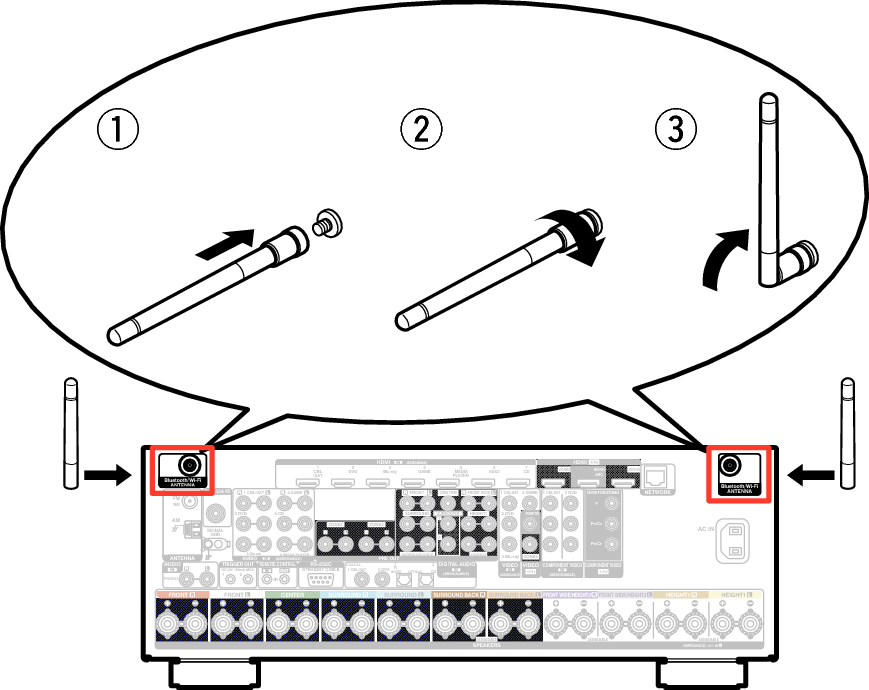

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle AVRX5200WE2

Denon Link HD connector

Used to connect a Denon Link HD compatible Blu-ray Disc player. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors. link

HDMI connectors

Used to connect devices equipped with HDMI connectors. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

AC inlet (AC IN)

Used to connect the power cord. link

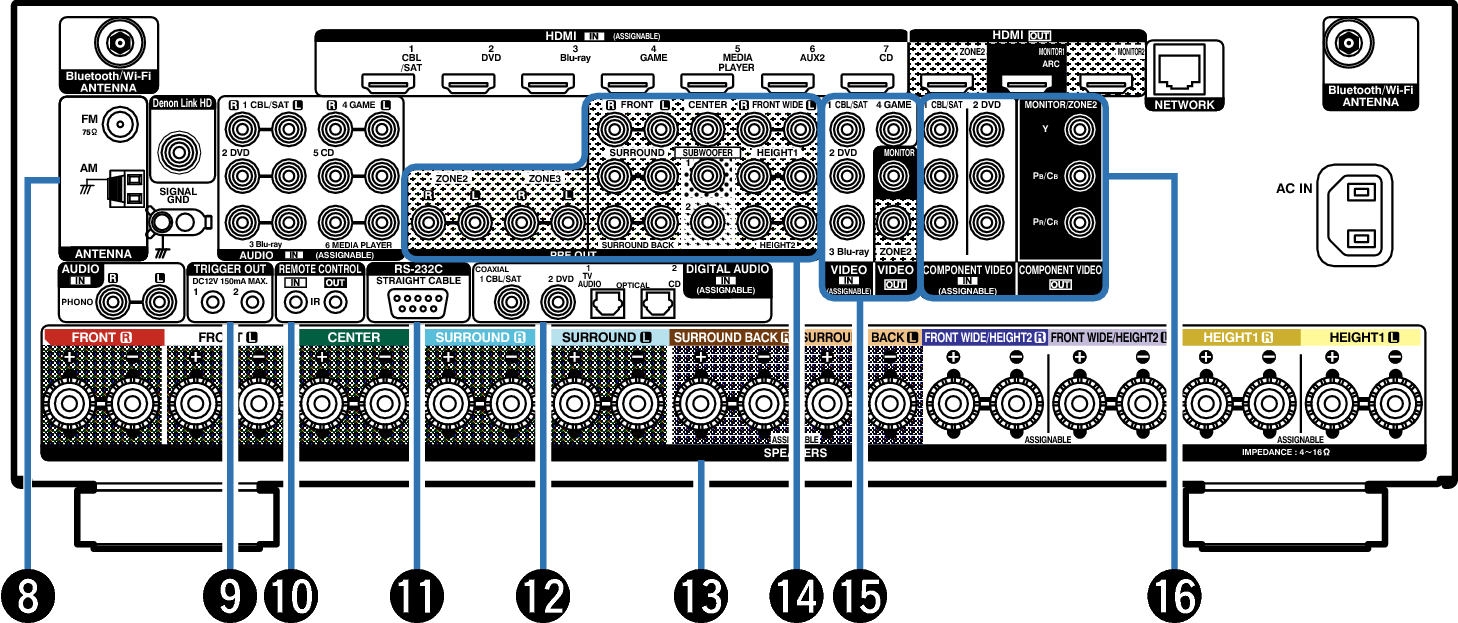

Name Rear Small2 AVRX5200WE2

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

TRIGGER OUT jacks

Used to connect devices equipped with the trigger function. link

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power amplifier. link, link

Video connectors (VIDEO)

Used to connect devices equipped with video connectors. link

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
