With the door open

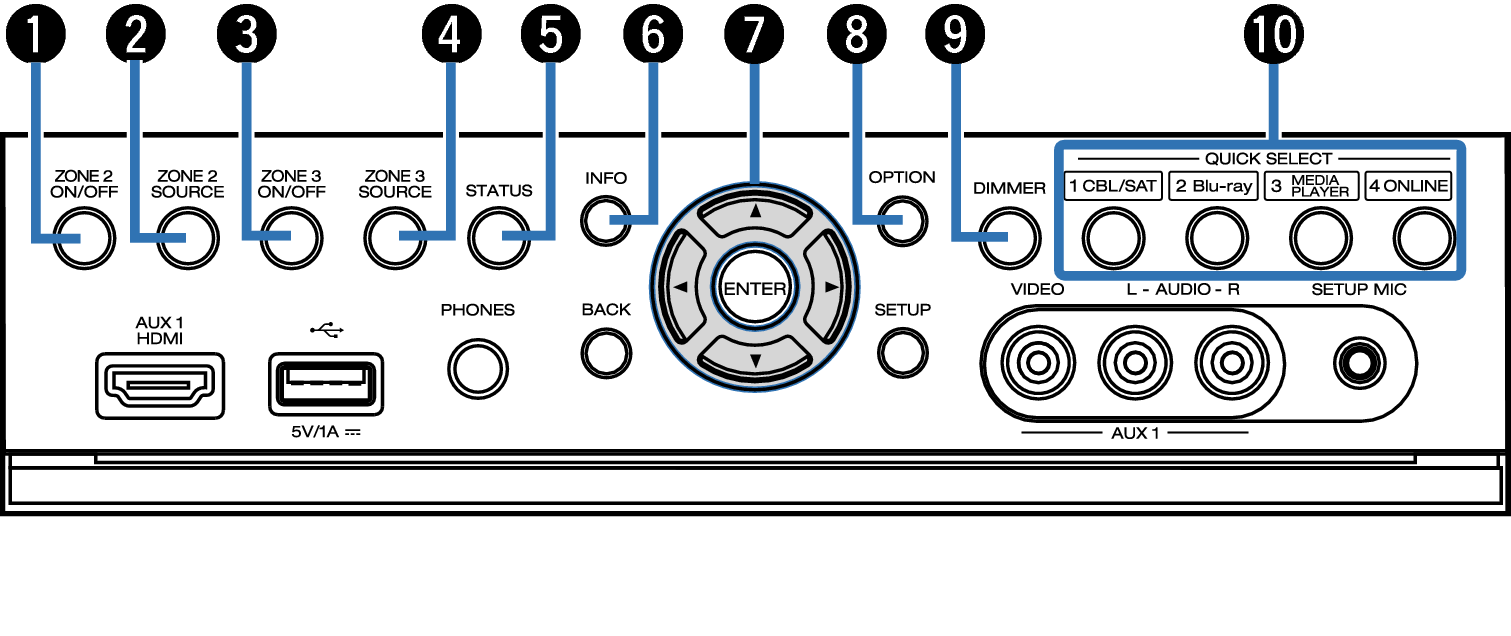

ZONE2 ON/OFF button
This turns the power of ZONE2 on/off. link
ZONE2 SOURCE button
This selects the input source for ZONE2. link
ZONE3 ON/OFF button
This turns the power of ZONE3 on/off. link
ZONE3 SOURCE button
This selects the input source for ZONE3. link
STATUS button
Each press of this switches the status information that is shown on the display. link
Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons ( )
These select items. link
OPTION button
This displays the option menu on the TV screen. link
DIMMER button
Each press of this switches the brightness of the display. link
QUICK SELECT buttons
These call up settings registered to each button, such as input source, volume level and sound mode settings. link

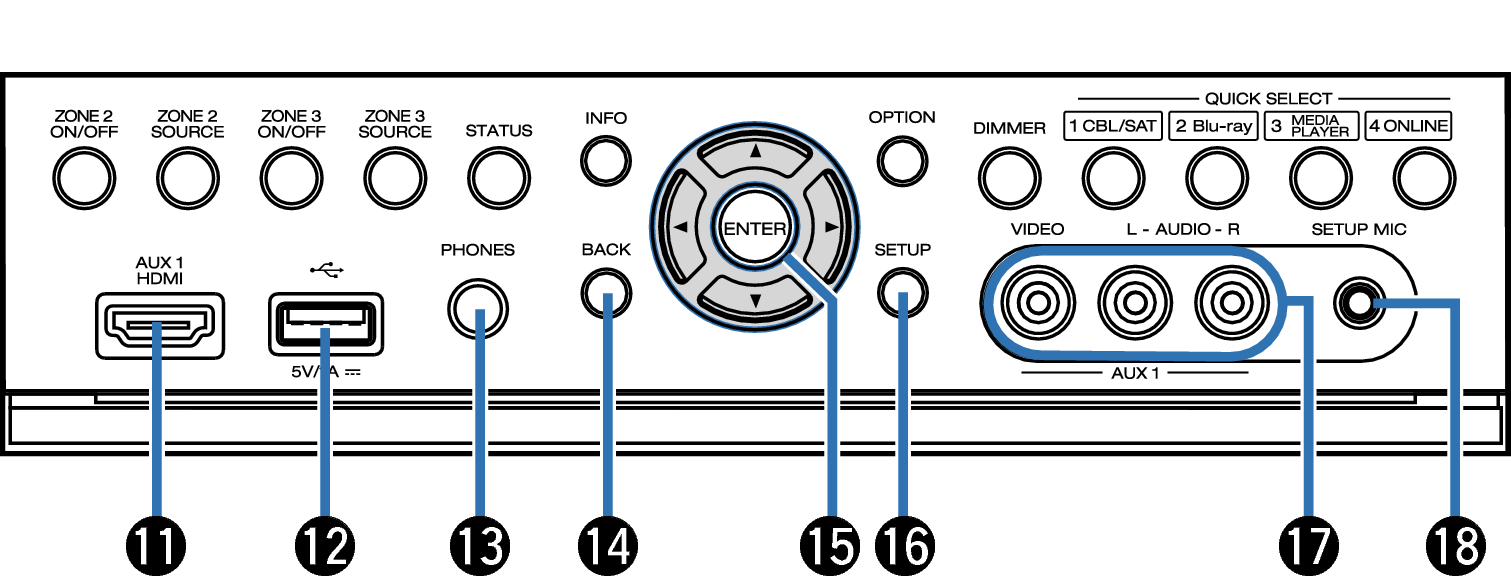

AUX1 HDMI connector
This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link
USB port
This is used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. link
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.
To prevent hearing loss, do not raise the volume level excessively when using headphones.
BACK button
This returns to the previous screen. link
ENTER button
This determines the selection. link
SETUP button
This displays the menu on the TV screen. link
AUX1 INPUT connector
Used to connect analog output compatible devices such as video camcorders and game consoles. link
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone. link
