Menu map

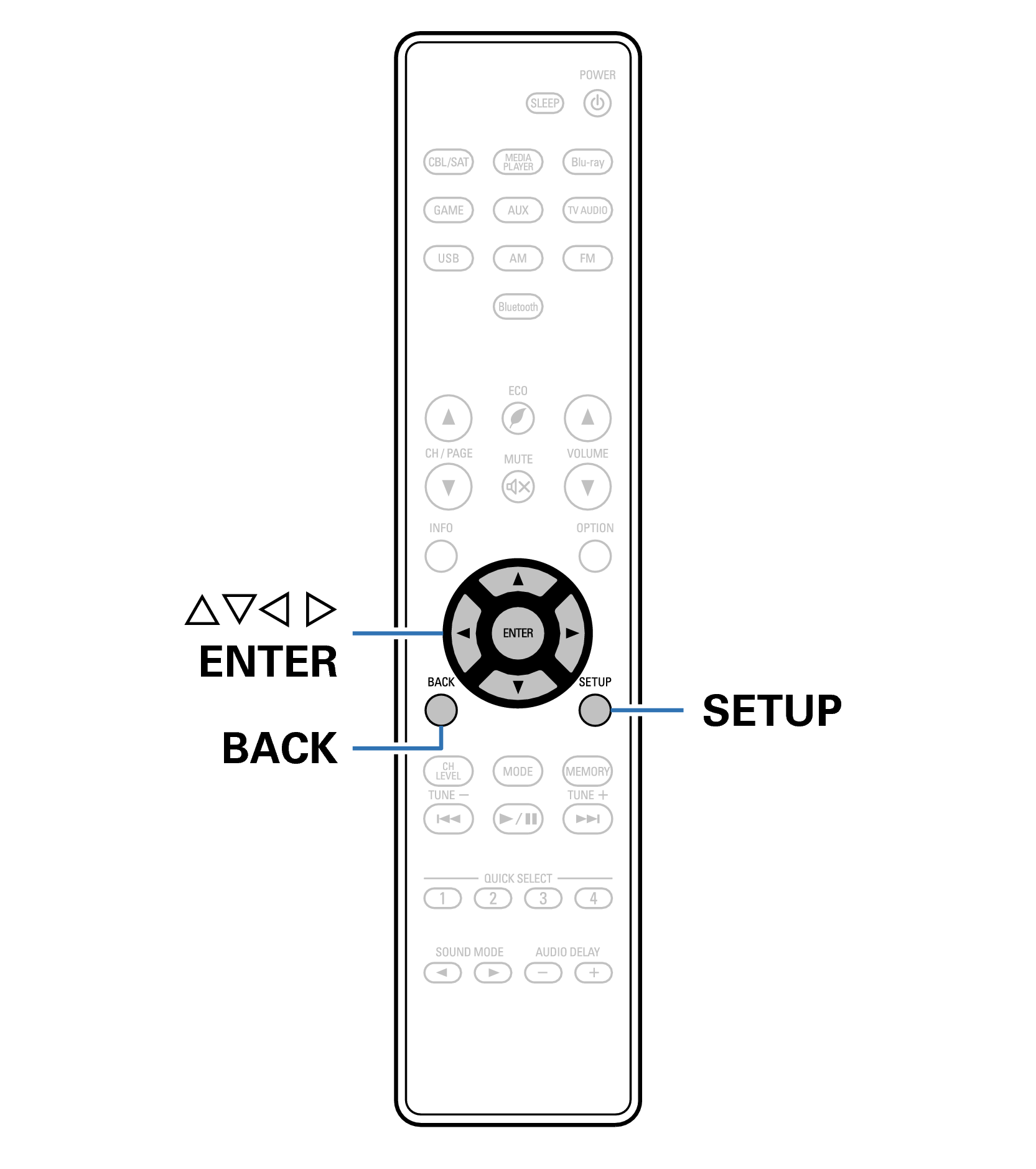

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Audio |
Surround Parameter |
Adjusts surround sound parameters. |
|
Restorer |
Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. |
||
Volume |
Make volume settings. |
||
Room EQ |
Set whether to use the equalizer or not. |
||
Video |
HDMI Setup |
Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. |
|
HDMI Upscaler |
Sets the mode for upscaling 1080p and 4K HDMI content to 8K. |
||
Screen Saver |
Sets the screen saver setting. |
||
4K/8K Signal Format |
Sets signal format options for your 4K or 8K video equipment. |
||
HDCP Setup |
Sets the HDCP version for each HDMI input source. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Inputs |
Input Assign |
Changes input connector assignment. |
|
Source Level |
Adjusts the playback level of the audio input. |
||
Input Select |
Sets the audio input mode and decode mode. |
||
Speakers |
Auto Setup |
The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. |
|
Manual Setup |
Sets up the speakers manually or changes the “Auto Setup” settings. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
General |
Language |
Changes the language of the display on the TV screen. |
|
ECO |
Configures the ECO Mode and Auto Standby energy-saving functions. |
||
Bluetooth |
Configures the Bluetooth settings. |
||
Quick Select Options |
Sets the items registered to Quick Select. |
||
Front Display |
Makes settings related to the display on this unit. |
||
Firmware |
Update the firmware of this unit. |
||
Setup Lock |
Protects settings from inadvertent changes. |
||
Reset |
Various settings are reset to the factory default values. |
||
Setup Assistant |
Begin Setup... |
Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen. |
Page 7 of the separate manual “Quick Start Guide” |
