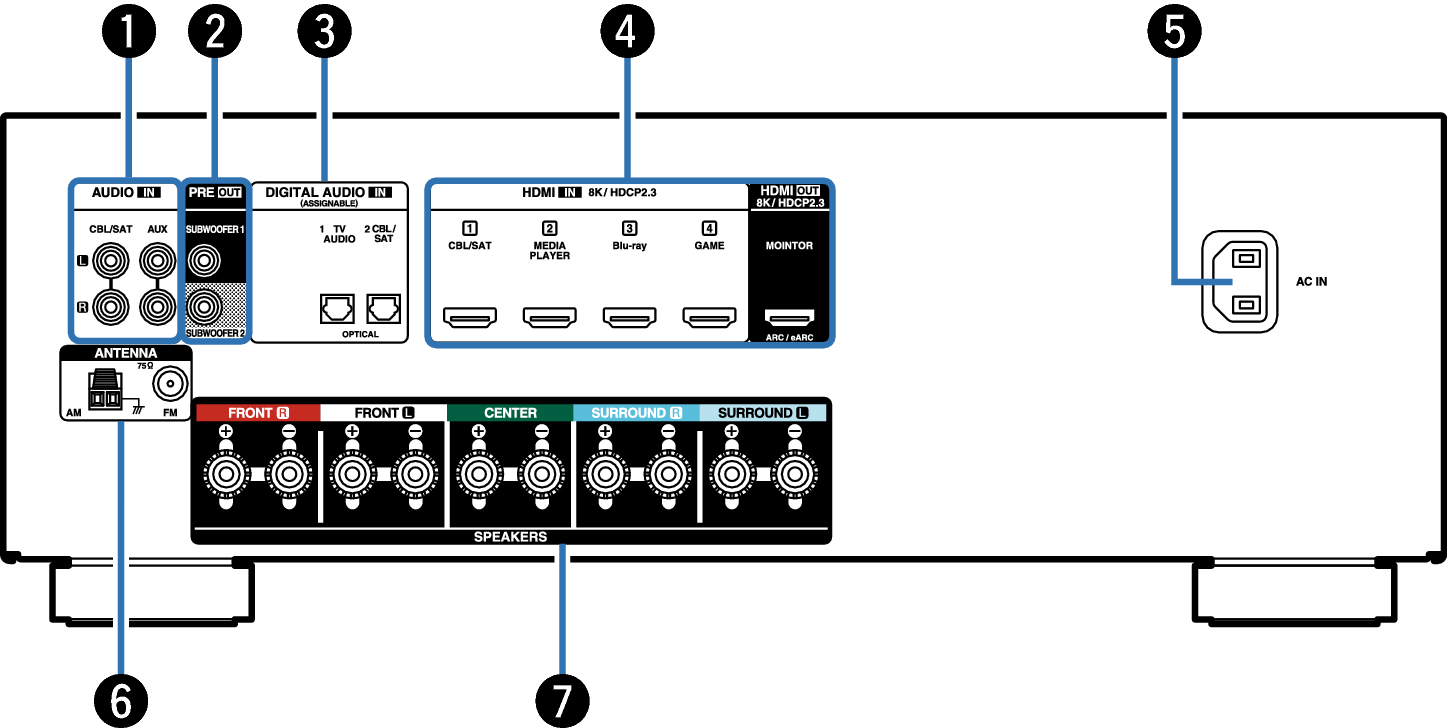

Rear panel

Name Rear Small1 X58E2

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors. link

PRE OUT connectors

Used to connect a subwoofer with a built-in amplifier. link

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

HDMI connectors

Used to connect devices equipped with HDMI connectors.

AC inlet (AC IN)

Used to connect the power cord. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link
