Specifications

Wireless LAN

Network type:

Conforming to IEEE 802.11a/b/g/n/ac

Used frequency range:

2.4 GHz, 5 GHz

Bluetooth section

Communications system:

Bluetooth Version 5.4

Transmission power:

Power Class 1

Maximum communication range:

Approx. 98.4 ft/30 m in line of sight *

Used frequency range:

2.4 GHz band

Modulation scheme:

FHSS (Frequency-Hopping Spread Spectrum)

Supported profiles:

A2DP, AVRCP

Corresponding codec:

SBC

Transmission range (A2DP):

20 Hz – 20,000 Hz

* The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 100 – 240 V, 50/60 Hz (for Europe model)
AC 100 – 120 V, 50/60 Hz (for North America model)

Power consumption:

26 W

Power consumption in Quick Start Mode:
(Voice service activated)

2.1 W (Wi-Fi 2.4 GHz)
2.2 W (Wi-Fi 5 GHz)
1.7 W (Ethernet)
2.1 W (USB with Wi-Fi)
1.7 W (Bluetooth)

Power consumption in Deep Standby Mode:

0.3 W

Max Analog Input:

2 Vrms

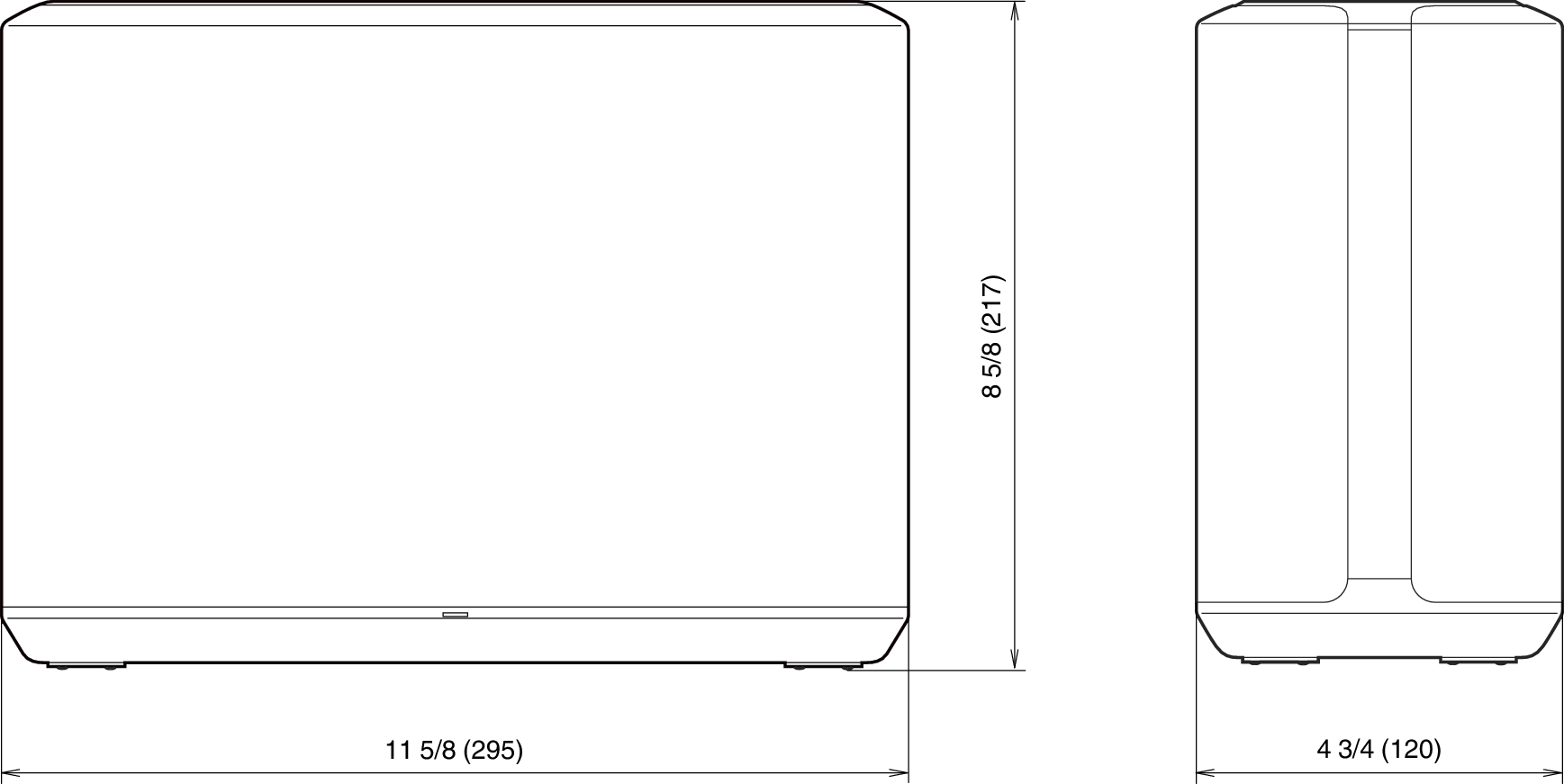

Dimensions

Unit : in. (mm)

Size DH250E2E3

Weight : 8 lbs 3 oz (3.7 kg)

For the purpose of improvement, the specifications and design are subject to change without notice.
