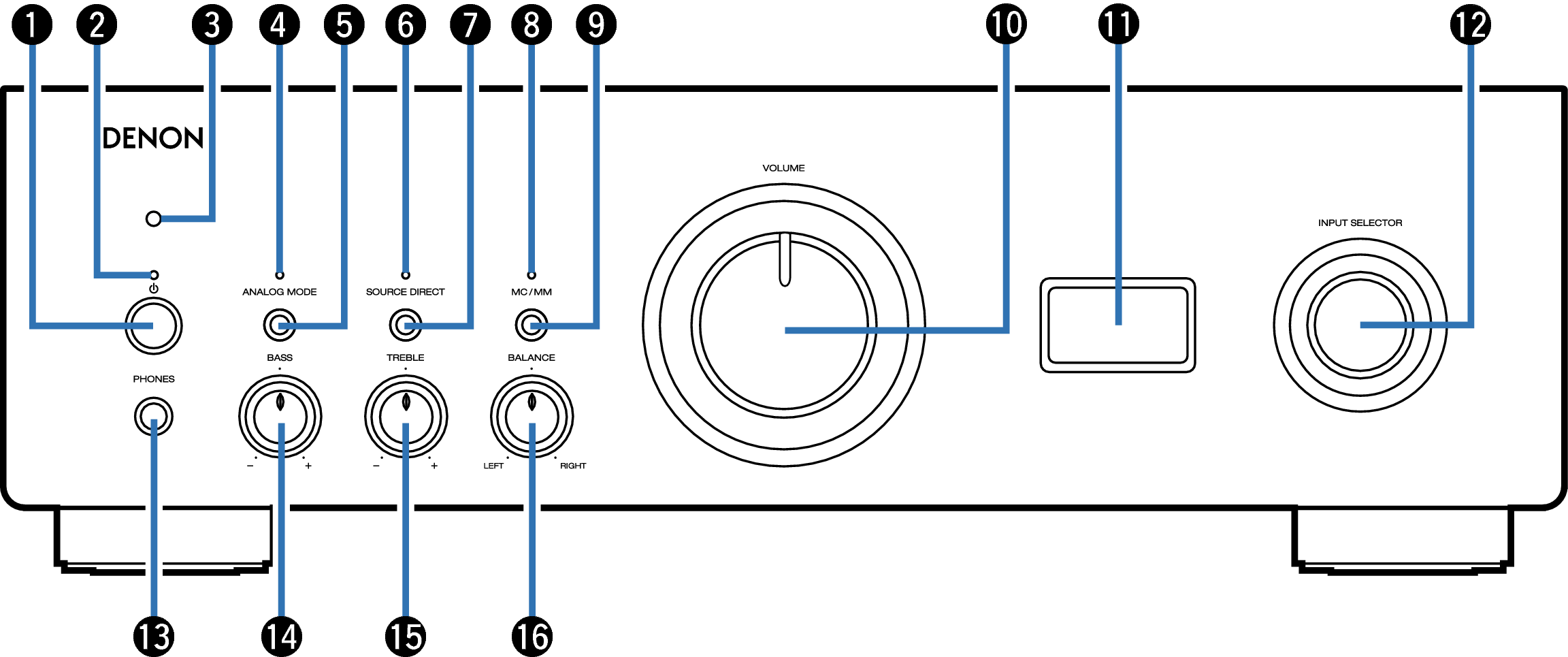

Front panel
Power
button
This turns the power on/off. link
Power indicator
This is lit as follows according to the power status:
Power on : Green
Standby : Off
Power off : Off
When the protection circuit is activated : Red (blinking) link
Remote control sensor
This receives signals from the remote control unit. link
ANALOG MODE indicator
This is lit as follows, according to the analog mode status:
Analog mode on (ANALOG MODE 1 or 2): Green
Analog mode off: Off
ANALOG MODE button
This switchs the ANALOG MODE 1/2/off. link
SOURCE DIRECT indicator
This is lit as follows according to the source direct status:
Source direct mode on: Green
Source direct mode off: Off
SOURCE DIRECT button
This turns source direct mode on/off. link
MC/MM indicator
This is lit as follows according to the setting of the phono equalizer of this unit:
MC: Green
MM: Off
MC/MM button
This switchs to MC or MM according to the type of cartridge used on your turntable.
VOLUME knob
This adjusts the volume level. link
Display
This displays information such as the input source name, type of digital audio signal and sampling frequency.
INPUT SELECTOR knob
This selects the input source. link
NOTE
When you set this unit’s input source to “EXT.PRE”, the main unit outputs at maximum volume. Also adjustment of the volume balance and tone on the main unit has no effect. Adjust the volume on the inputting devices before playback.
Headphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the speaker terminals.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
BASS control knob
This setting adjusts the volume level for the bass. link
TREBLE control knob
This setting adjusts the volume level for the treble. link
BALANCE control knob
This adjusts the balance of the volume output from the left and right speakers. link
,
and
can be adjusted when
is off (Source direct mode is off).
