Remote control unit
The remote control provided with this unit can control a Denon CD player and network audio player.
Operating this unit
Remote control signal transmitter
This transmits signals from the remote control unit. link
Input source select buttons
This selects the input source. link
ANALOG MODE button
This switches the analog mode 1/2/off. link
SOURCE DIRECT button
Switches the source direct mode. link
TV AUTO-PLAY button
This switches the digital input for the TV auto play. link
AMP POWER button
This turns the power on/off (standby). link
VOLUME buttons ( )
These adjust the volume level. link
MUTE button ( )
This mutes the output audio. link
DIMMER button
This switches the brightness of the display.link

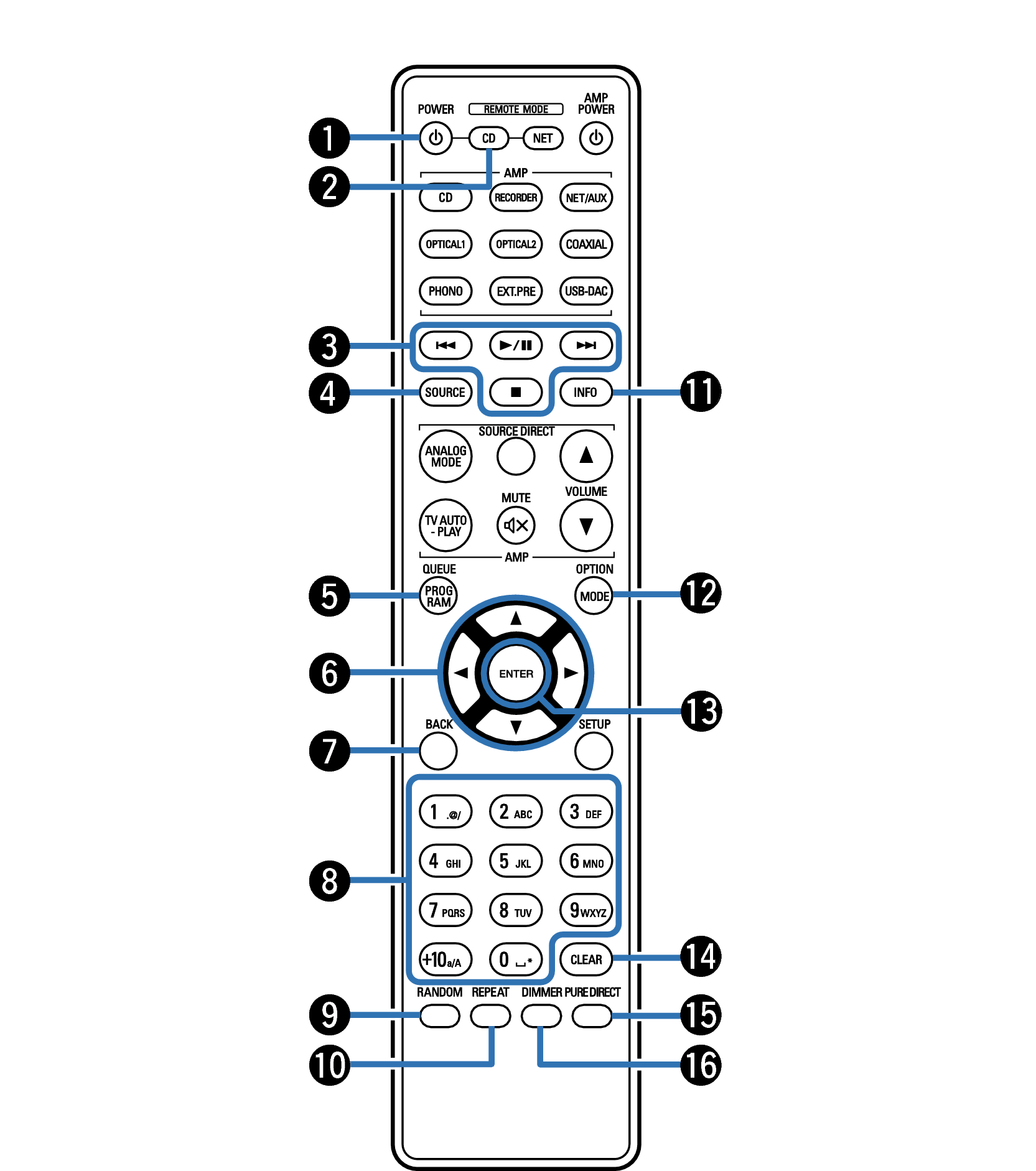

CD player operations
You can operate a Denon CD player.
To operate a CD player, press the REMOTE MODE CD button to switch the remote control to the CD player operation mode.
POWER button
Remote mode select button
(REMOTE MODE CD)
System buttons
SOURCE button
PROGRAM button
Cursor buttons ( )
BACK button
Number buttons (0 – 9, +10)
RANDOM button
REPEAT button
Information button (INFO)
MODE button
ENTER button
CLEAR button
PURE DIRECT button
DIMMER button
The remote control may not operate some products.

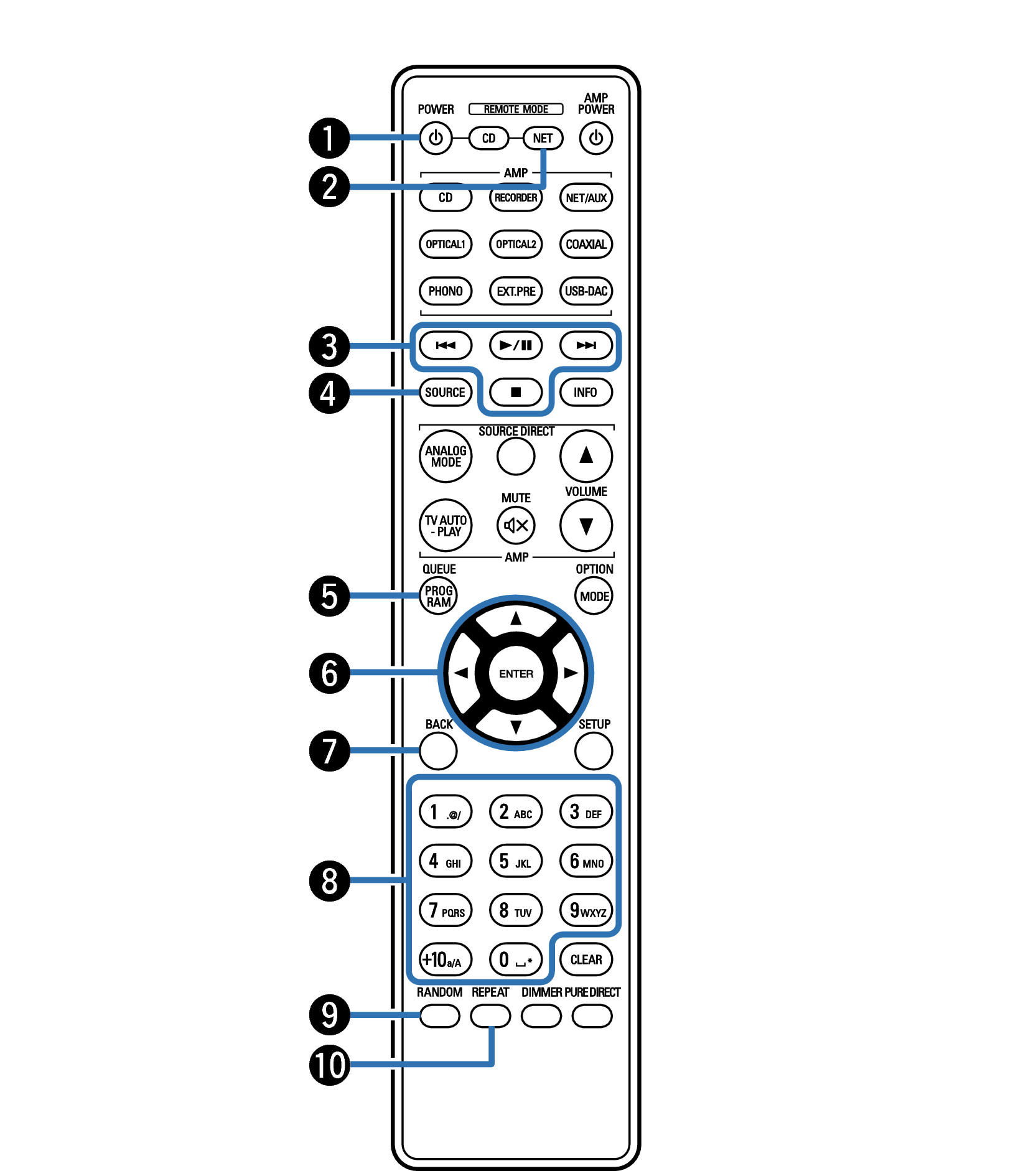

Network audio player operations
You can operate a Denon network audio player.
To operate a network audio player, press the REMOTE MODE NET button to switch the remote control to the network audio player operation mode.
POWER button
Remote mode select button
(REMOTE MODE NET)
System buttons
SOURCE button
QUEUE button
Cursor buttons ( )
BACK button
Number/letter buttons (0 – 9, +10)
RANDOM button
REPEAT button
Information button (INFO)
OPTION (MODE) button
ENTER button
SETUP button
CLEAR button
DIMMER button
The remote control may not operate some products.
