Rear panel

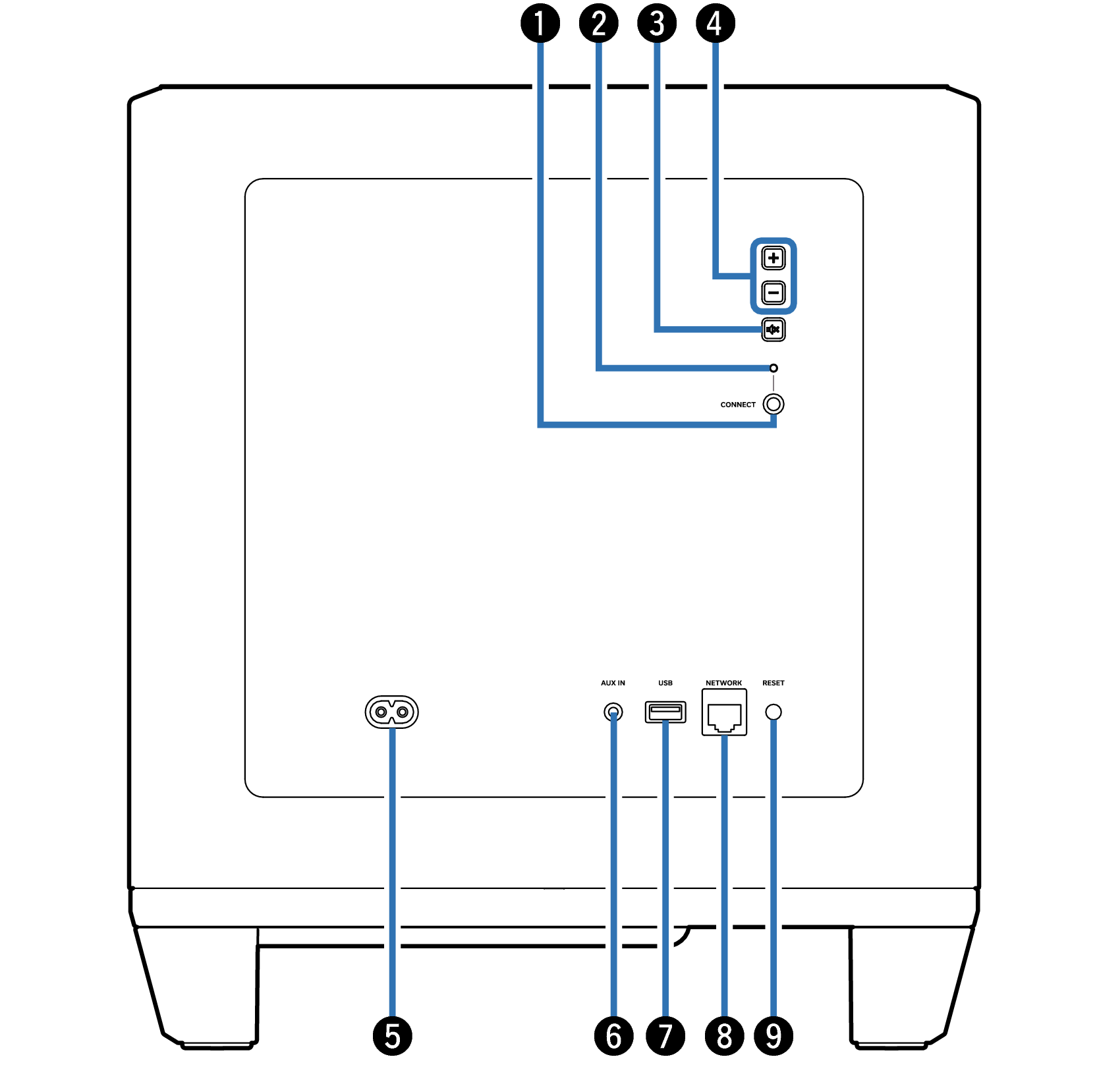

Name_rear_DHSW

CONNECT button

Used for Wi-Fi setup.

Connect in status LED

Indicates the status of this unit. link

Mute button ( )

Mutes or unmutes the HEOS built-in device’s volume.

Volume up/down buttons (+, –)

Adjusts the HEOS built-in device’s volume level up or down.

AC inlet

Used to connect the power cord. link

AUX jack (AUX IN)

Use a commercially available 3.5 mm stereo audio cable to connect a TV with an AUX audio output connector.

USB port

Used to connect USB storage devices.

NETWORK connector

Used to connect this unit to a wired Ethernet network. link

RESET button

Various settings are reset to the factory default values. link
