Connecting the speaker cables

Connect the speaker cable with a rubber tube (red) to the + speaker terminal (red), and the other cable to the - speaker terminal (black).

Peel off about 10 mm of sheathing from the tip of the speaker cable, then twist the core wire tightly.
Conne spCable1
Push the speaker terminal and insert the speaker cable into the cable insertion slot.
Conne spCable2
Release your finger from the speaker terminal to fix the speaker cable.
Conne spCable3

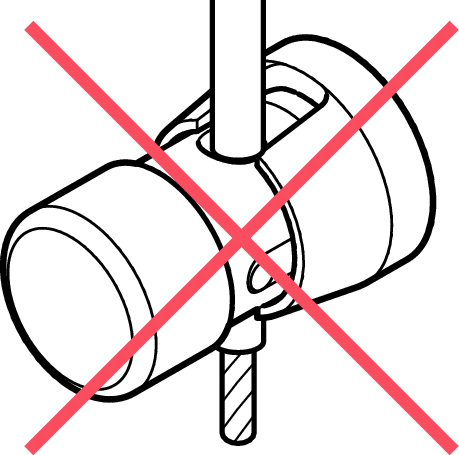

Ensure that only the core wire part of the speaker cable is inserted. If the covered part is inserted, sound may not be output.

Conne spCable3_NG
