Remote control unit

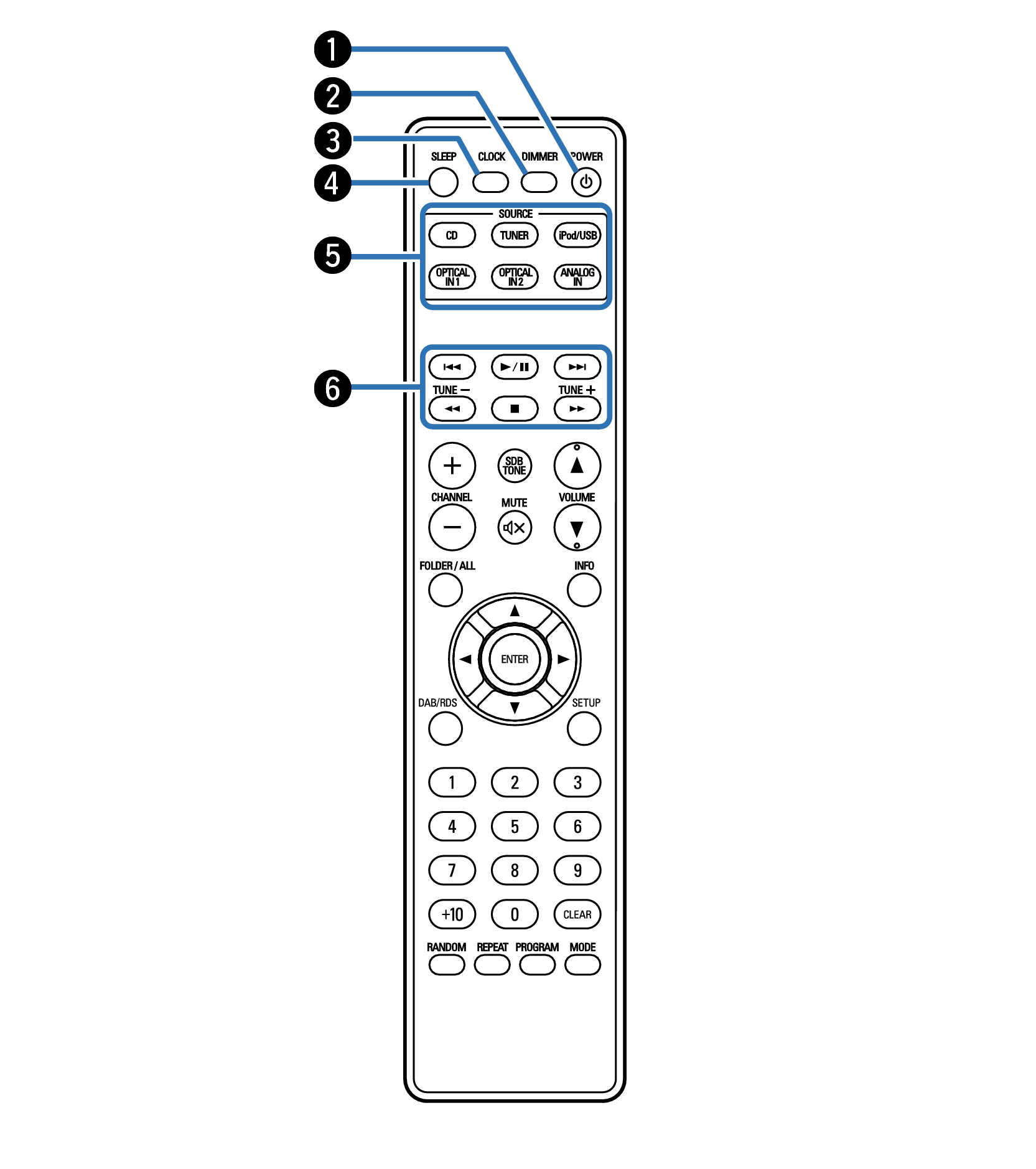

POWER button (
)
This turns the power on/standby. link
DIMMER button
Adjust the display brightness of this unit. link
CLOCK button
The current time appear on the unit. link
SLEEP button
This sets the sleep timer. link
Input source select buttons
These select the input source. link
System buttons
These perform playback related operations.
Reverse-skip / Forward-skip buttons (
,
)
Play/pause button (
/
)
Fast-reverse / Fast-forward buttons (
,
)
Stop button (
)
Tuning buttons (TUNE +, –)
These operate the tuner. link

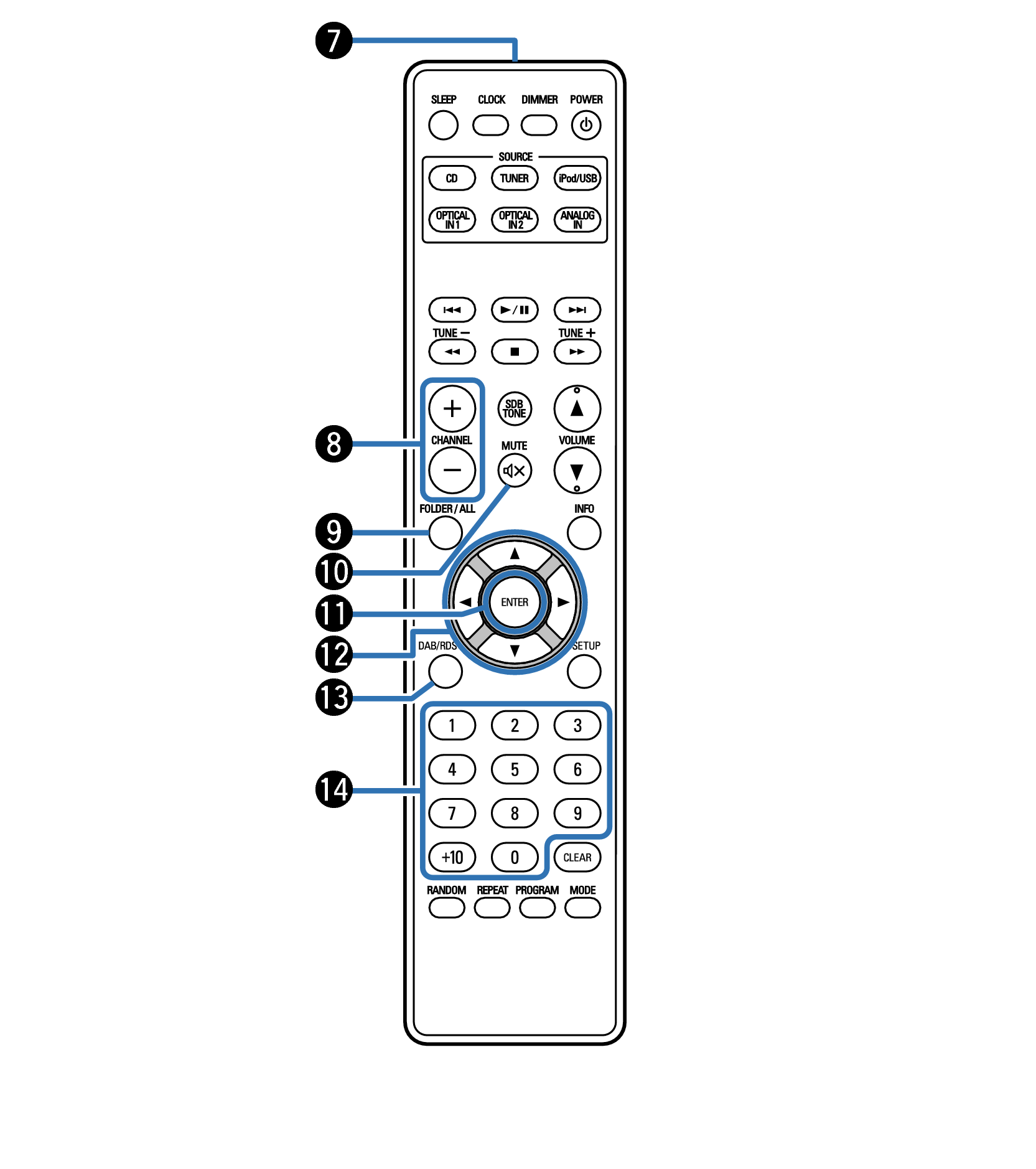

Signal transmitter
This transmits signals from the remote control unit. link
CHANNEL buttons (+, –)
This switches between PRESET channels.
FOLDER/ALL button
This switches the playback range on a USB device or data CD.
MUTE button (
)
This mutes the output audio. link
ENTER button
This determines the selection.
Cursor buttons (
)
These select items.
DAB/RDS button
This configures the DAB/RDS setting.
Number buttons (0 – 9, +10)
These enter letters or numbers into the unit.

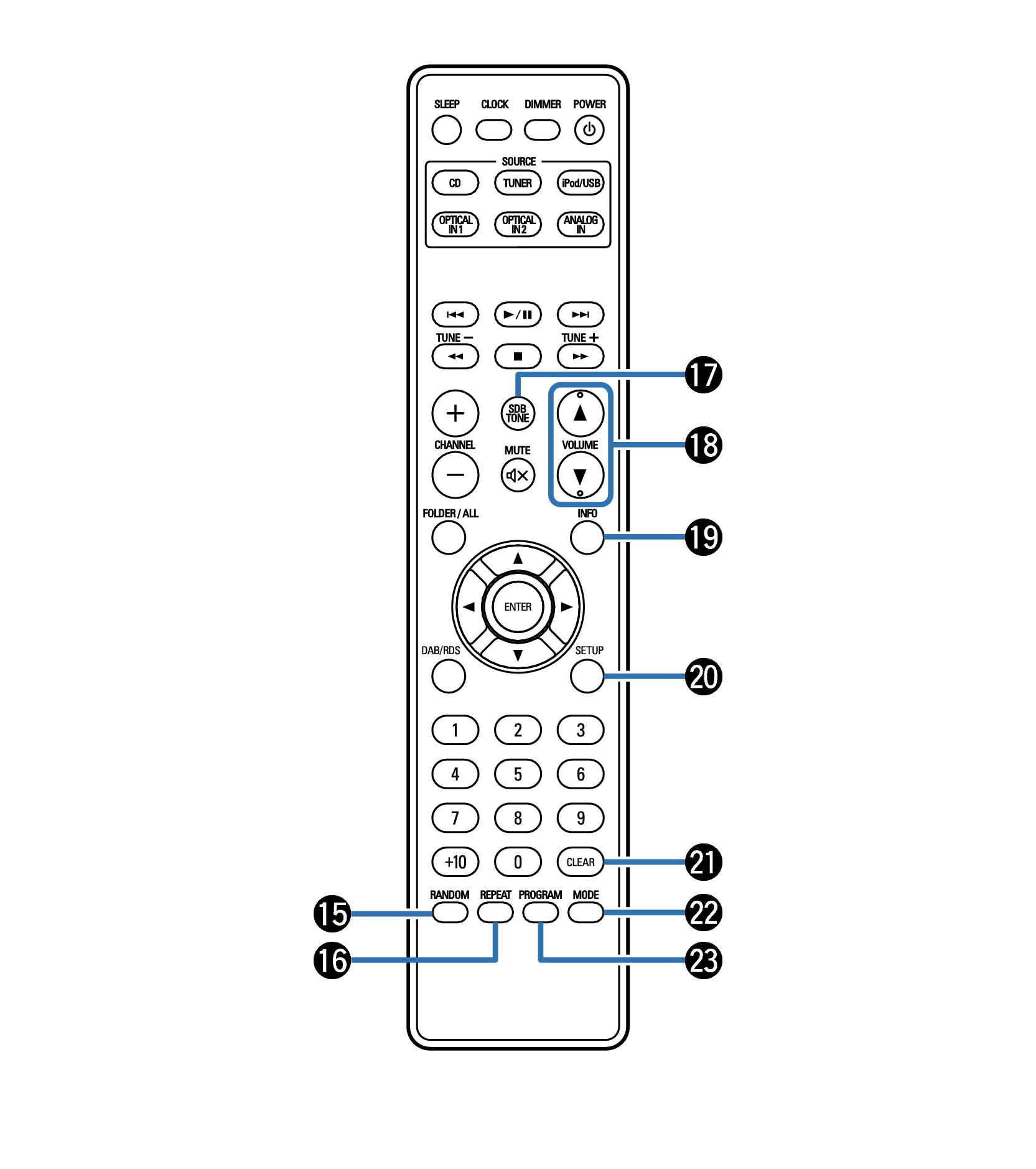

RANDOM button
Switches the random playback.
REPEAT button
Switches to the repeat playback.
SDB/TONE button
Adjusting the tone.
VOLUME buttons (
)
These adjust the volume level.
Information button (INFO)
This switches display items such as the elapsed time, album name and title name in the playback screen.
SETUP button
The setting menu is displayed on the display.
CLEAR button
This cancels the settings.
MODE button
This switches the operation mode for the iPod.
PROGRAM button
This sets program playback.
