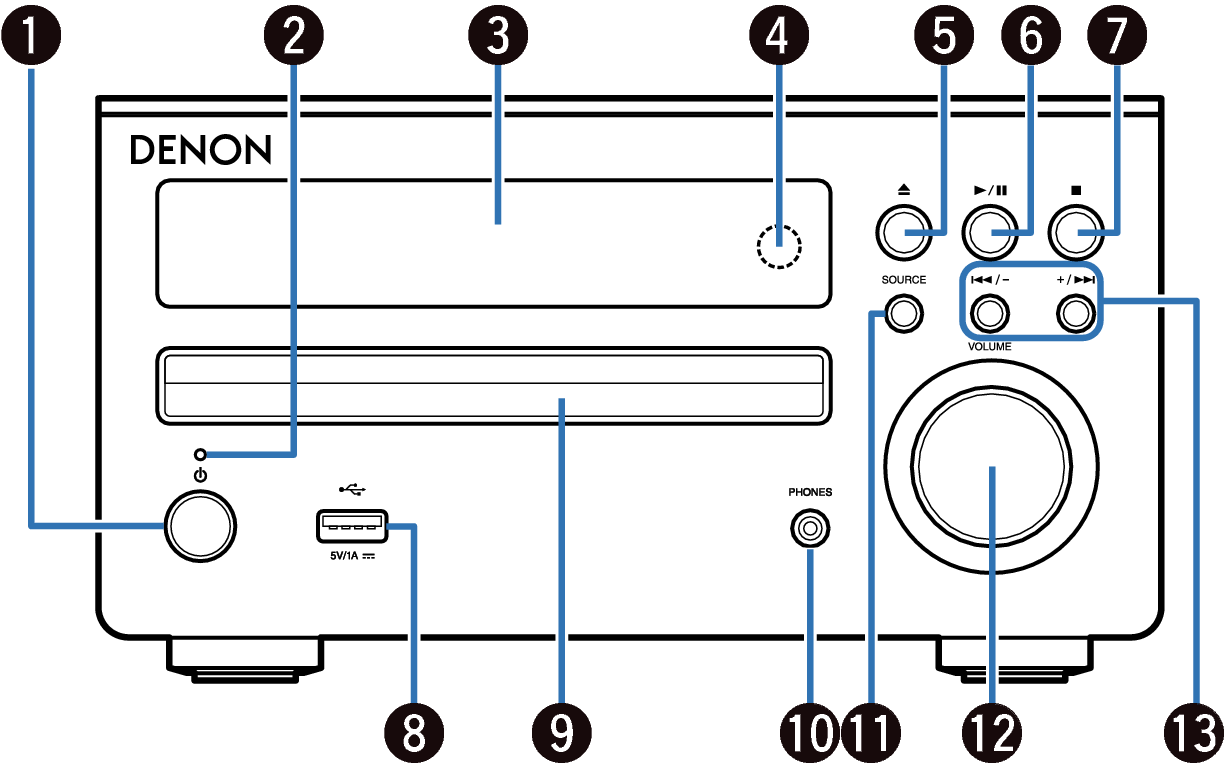

Front panel
Power operation button ( )
Turns power to this unit on and off (standby).
When CLOCK MODE is turned on, this button switches between normal mode and Clock mode. link
Power indicator
The power indicator changes as shown below according to the status of the unit.
Power on : Green
Normal Standby : Off
iPod charge standby : Red link
Alarm standby: Orange link
Display
Various information is displayed here.
Remote control sensor
This receives signals from the remote control unit. link
Disc tray open/close button ( )
Used to open/close the disc tray.
Play/Pause button ( / )
Stop button ( ) (for continental model only)
Band/Stop button ( ) (for RCD-M40DAB model only)
USB port
Used to connect iPod or USB memory devices. link
Disc tray
Tray used to insert a compact disc.
Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers.
To prevent hearing loss, do not raise the volume level excessively when using headphones.
SOURCE button
These select the input source.
VOLUME knob
This adjusts the volume level.
