Front panel

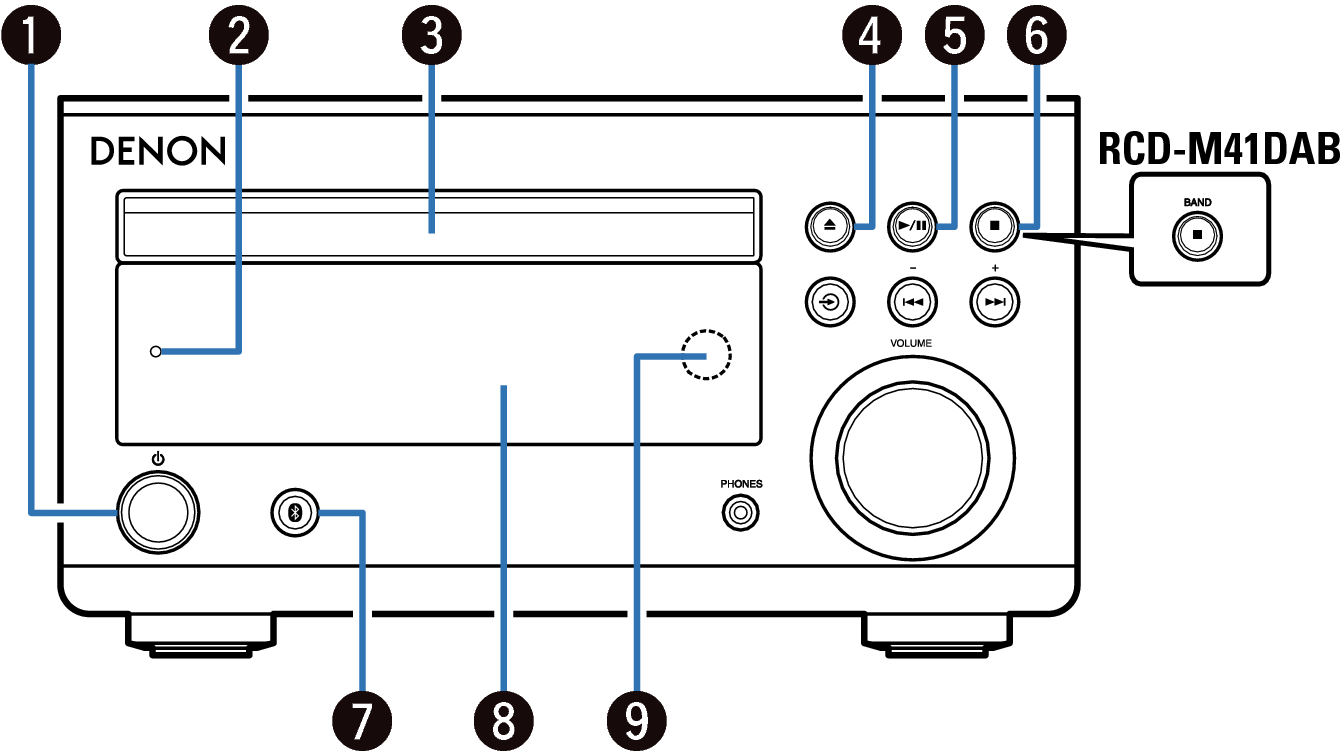

Name Front Small RCDM41E2EK 1

Power operation button ( Power Button )

Turns power to this unit on and off (standby).link

When “CLOCK MODE” is turned on, this button switches between normal mode and Clock mode. link

Power indicator

This is lit as follows according to the power status:

Power on : Green

Normal standby : Off

Bluetooth standby : Redlink

Alarm standby: Orange link

Disc tray

Used to insert a disc. link

Disc tray open/close button ( Triangle-Underline )

Opens and closes the disc tray.

Play/Pause button ( Triangle Right / Pause )

Plays the track/Pauses the track.

Stop button ( Square Black )

Stops playback.

BAND button (for RCD-M41DAB only)

This switches between FM and DAB, when you use the tuner.

Bluetooth button ( Button Bluetooth )

This switches the input to Bluetooth. This is also pressed during the pairing operation. link


This displays various pieces of

Remote control sensor

This receives signals from the remote control unit. link

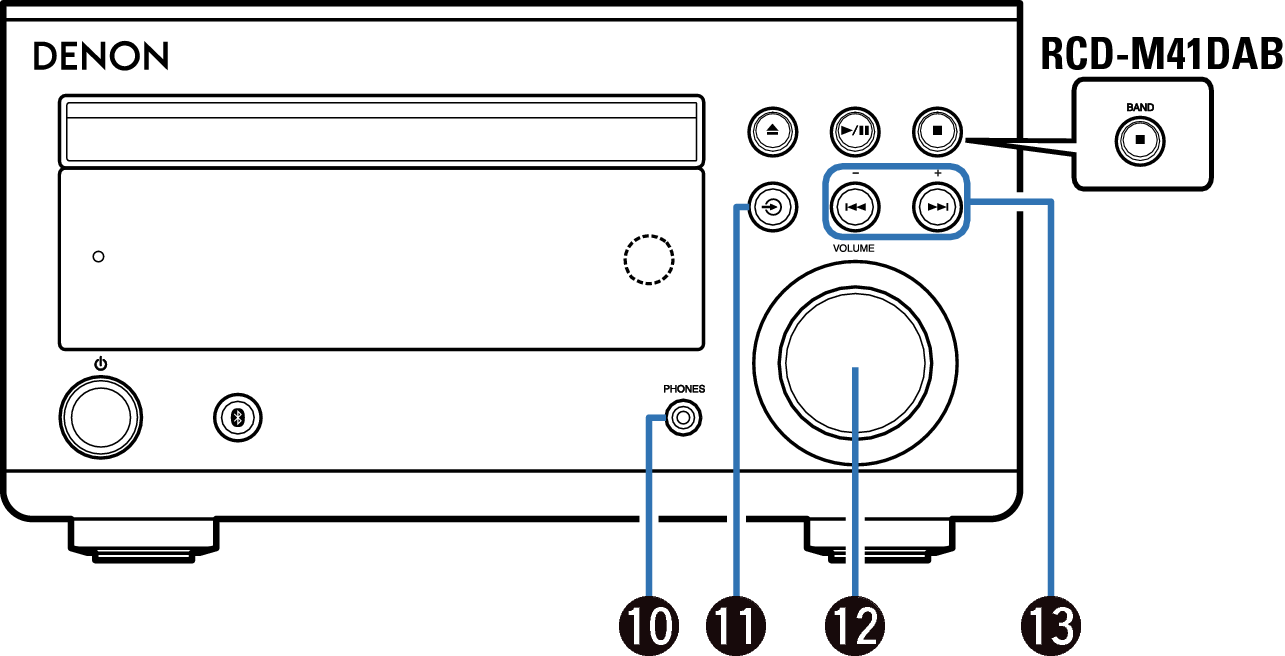

Name Front Small RCDM41E2EK 2

Headphones jack (PHONES)

Used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers.


To prevent hearing loss, do not raise the volume level excessively when using headphones.

Source button ( Button Input Circle )

This select the input


This adjusts the volume

Reverse-skip/Forward-skip buttons ( Skip-Left , Skip-Right )

This skips to the start of the track.

Preset/Tuning buttons (–, +)

These select FM broadcast and DAB broadcast (for RCD-M41DAB only).link
