Remote control unit

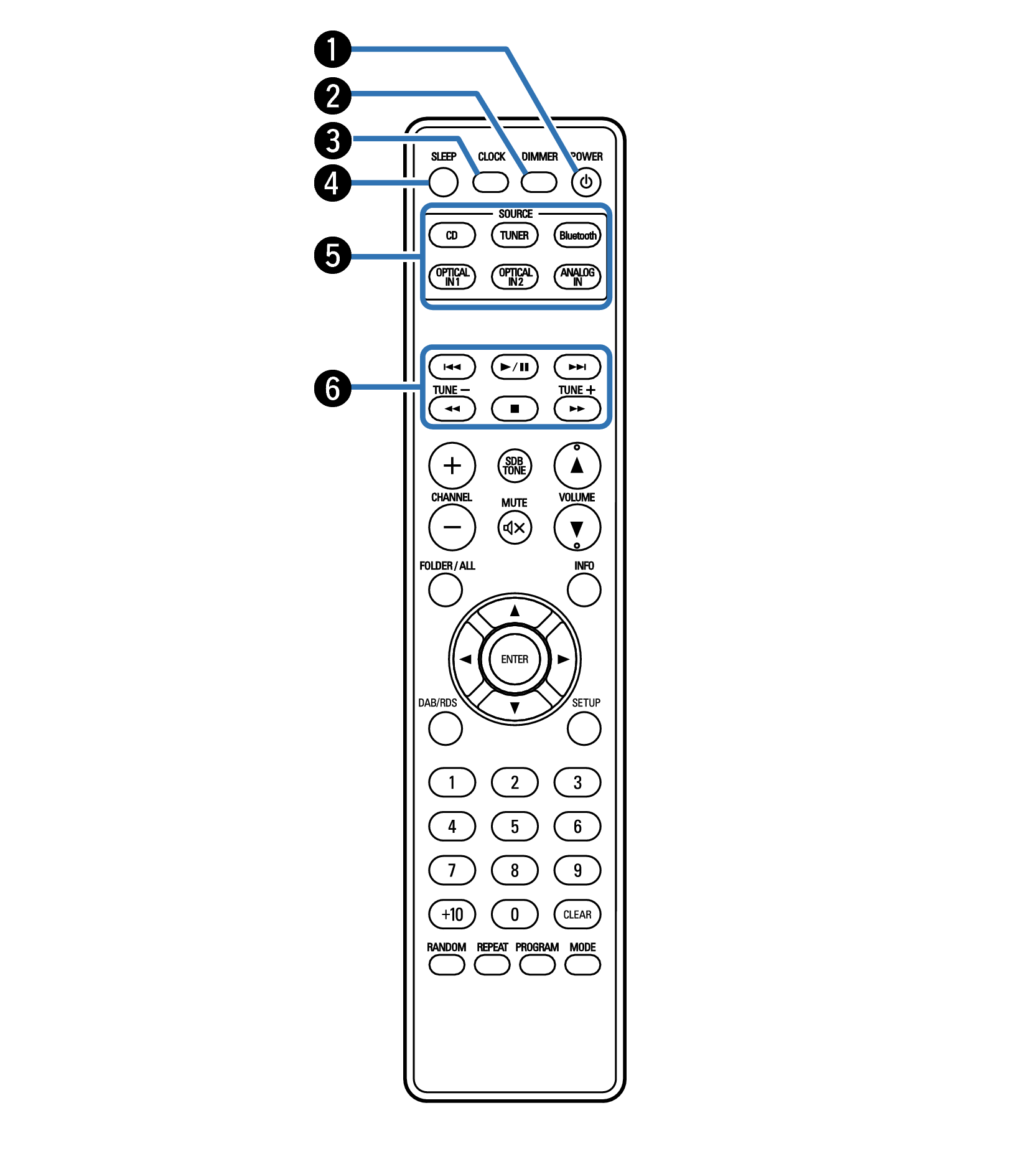

Name RC1214 1

POWER button ( Power Button )

This turns the power on/standby. link

DIMMER button

Adjust the display brightness of this unit. link

CLOCK button

The current time appear on the unit. link

SLEEP button

This sets the sleep timer. link

Input source select buttons

These select the input source. link

System buttons

These perform playback related operations.

Tuning buttons (TUNE +, –)

These operate the tuner. link

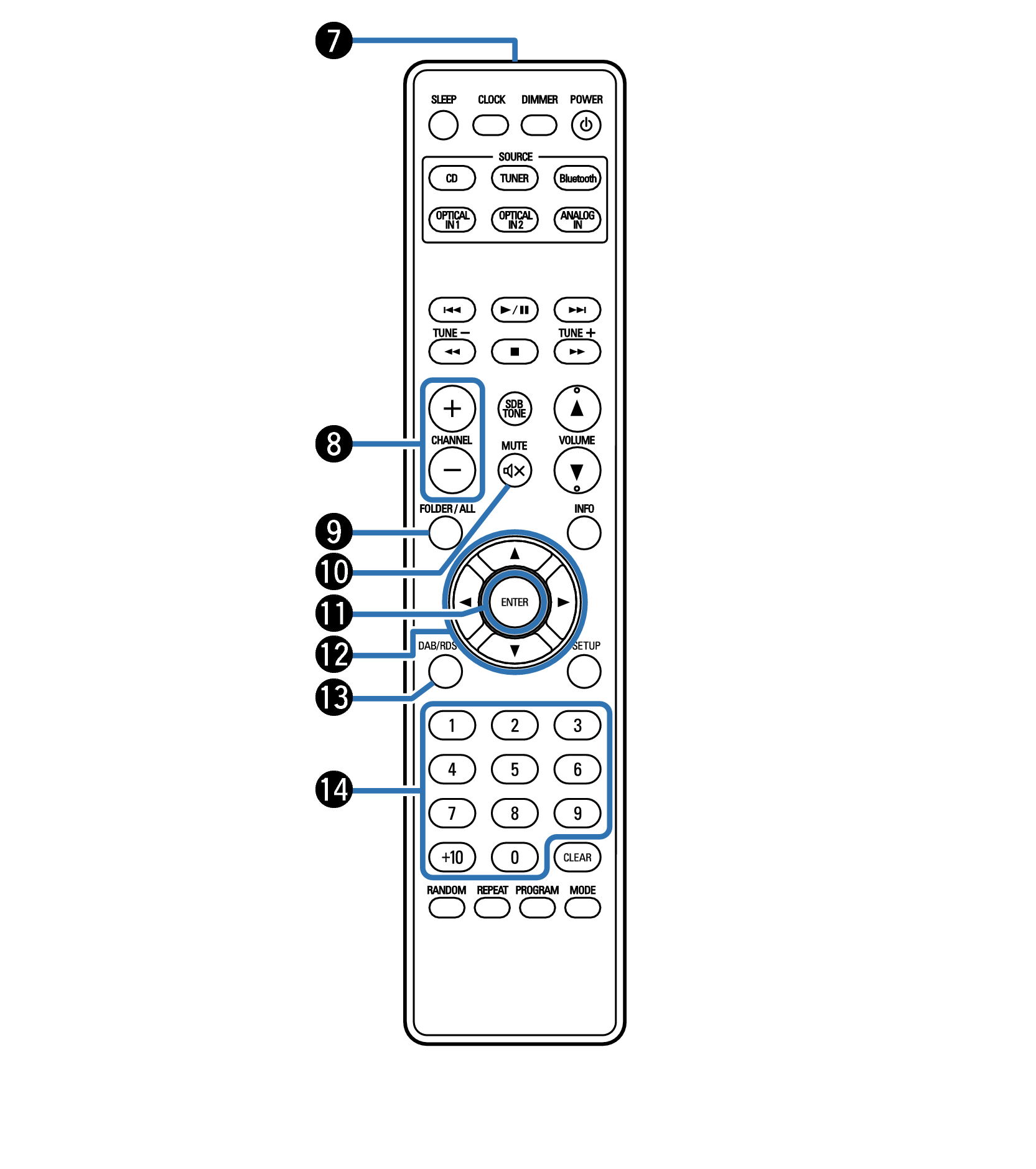

Name RC1214 2

Signal transmitter

This transmits signals from the remote control unit. link

CHANNEL buttons (+, –)

This switches between preset


This switches the playback range on a data

MUTE button ( Silent )

This mutes the output audio. link

ENTER button

This determines the selection.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

DAB/RDS button

This configures the DAB/RDS

Number buttons (0 – 9, +10)

These enter numbers into the unit.

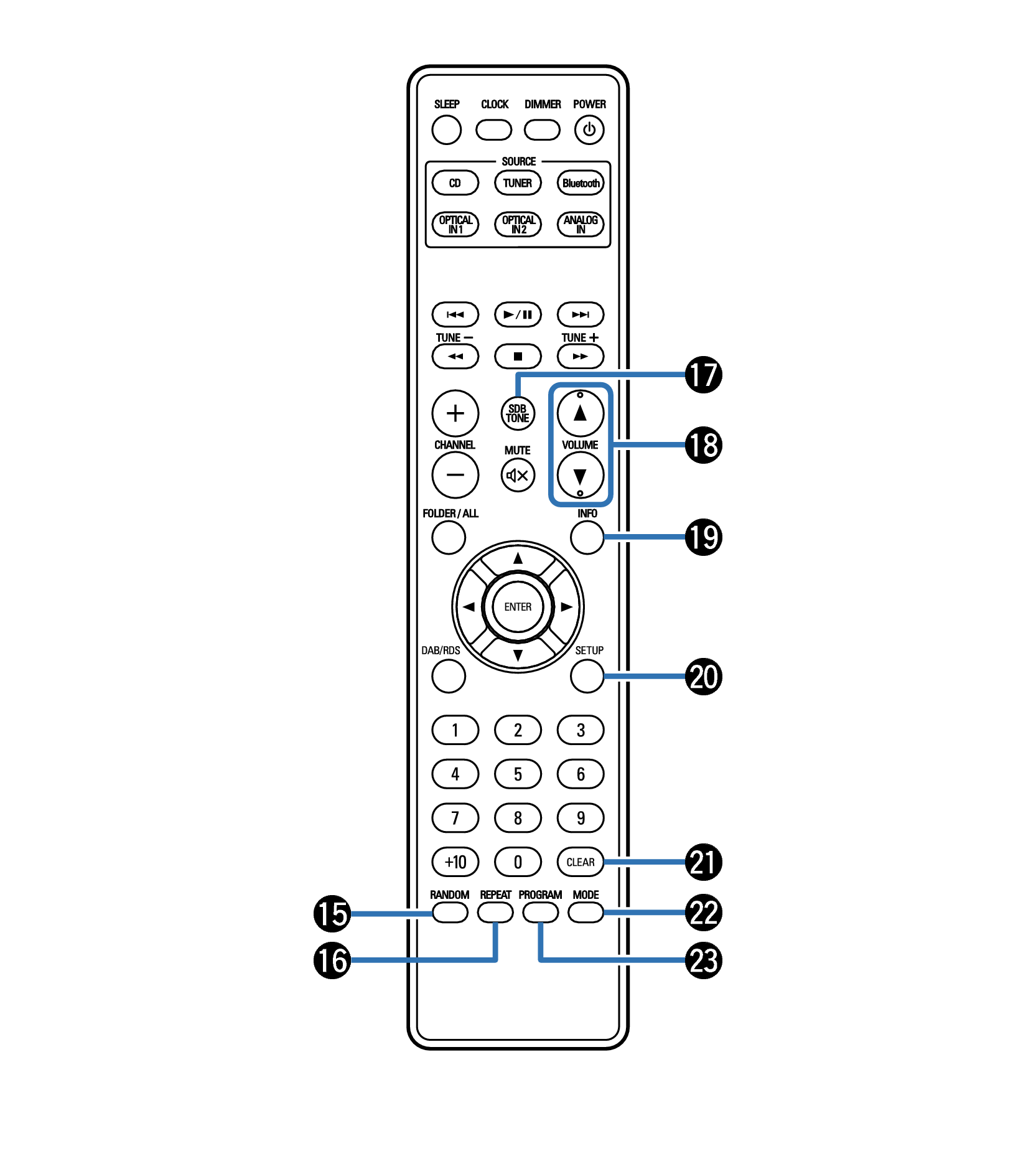

Name RC1214 3

RANDOM button

Switches the random playback.

REPEAT button

Switches to the repeat playback.

SDB/TONE button

Adjusting the

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume

Information button (INFO)

This switches the track information shown in the display during playback.

SETUP button

The setting menu is displayed on the

CLEAR button

This cancels the settings.

MODE button

This switches the operation mode for the FM

PROGRAM button

This sets program
