Rear panel

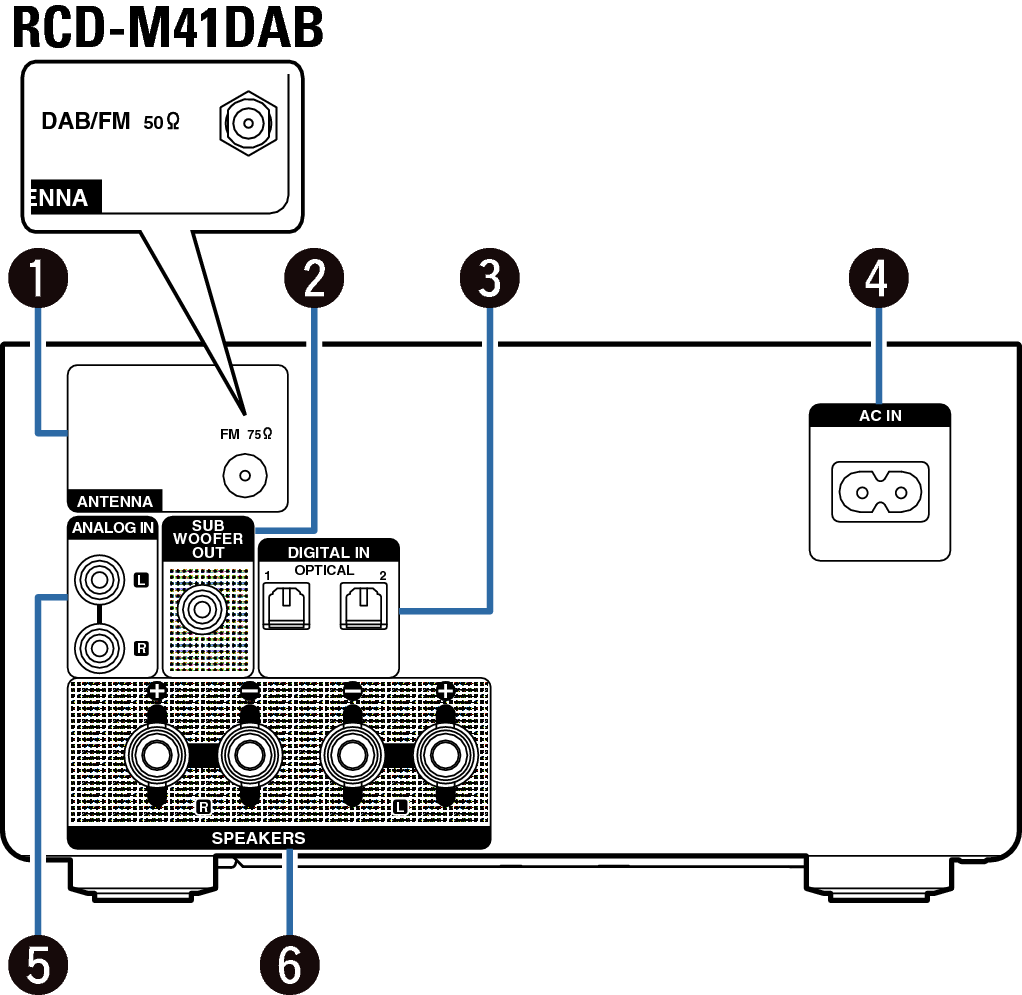

Name Rear Small RCDM41E2EK

FM antenna terminal (ANTENNA) (for RCD-M41 only)

Used to connect FM antenna. link

DAB/FM antenna terminal (ANTENNA) (for RCD-M41DAB only)

Used to connect DAB/FM antenna. link

Subwoofer connector (SUBWOOFER OUT)

Used to connect a subwoofer with a built-in amplifier. link

Digital audio connectors (DIGITAL IN)

Used to connect devices equipped with digital audio connectors. link

AC inlet (AC IN)

Used to connect the supplied power cord. link

Analog audio connectors (ANALOG IN)

Used to connect devices equipped with analog audio connectors. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link
