Remote control unit

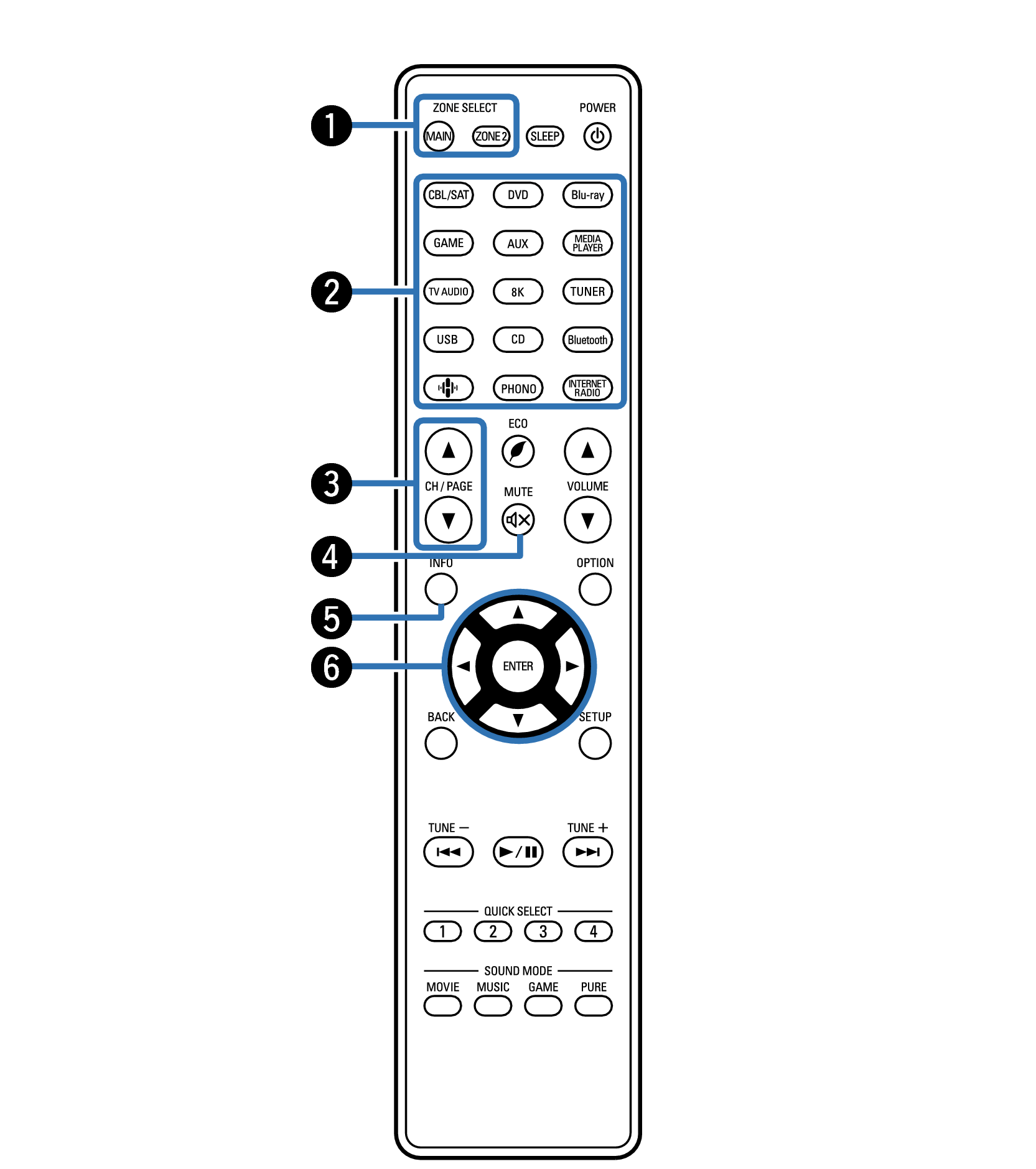

Name RC1239

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

Input source select buttons

These selects the input source.

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These switch pages. link

MUTE button ( Silent )

This mutes the output audio.

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

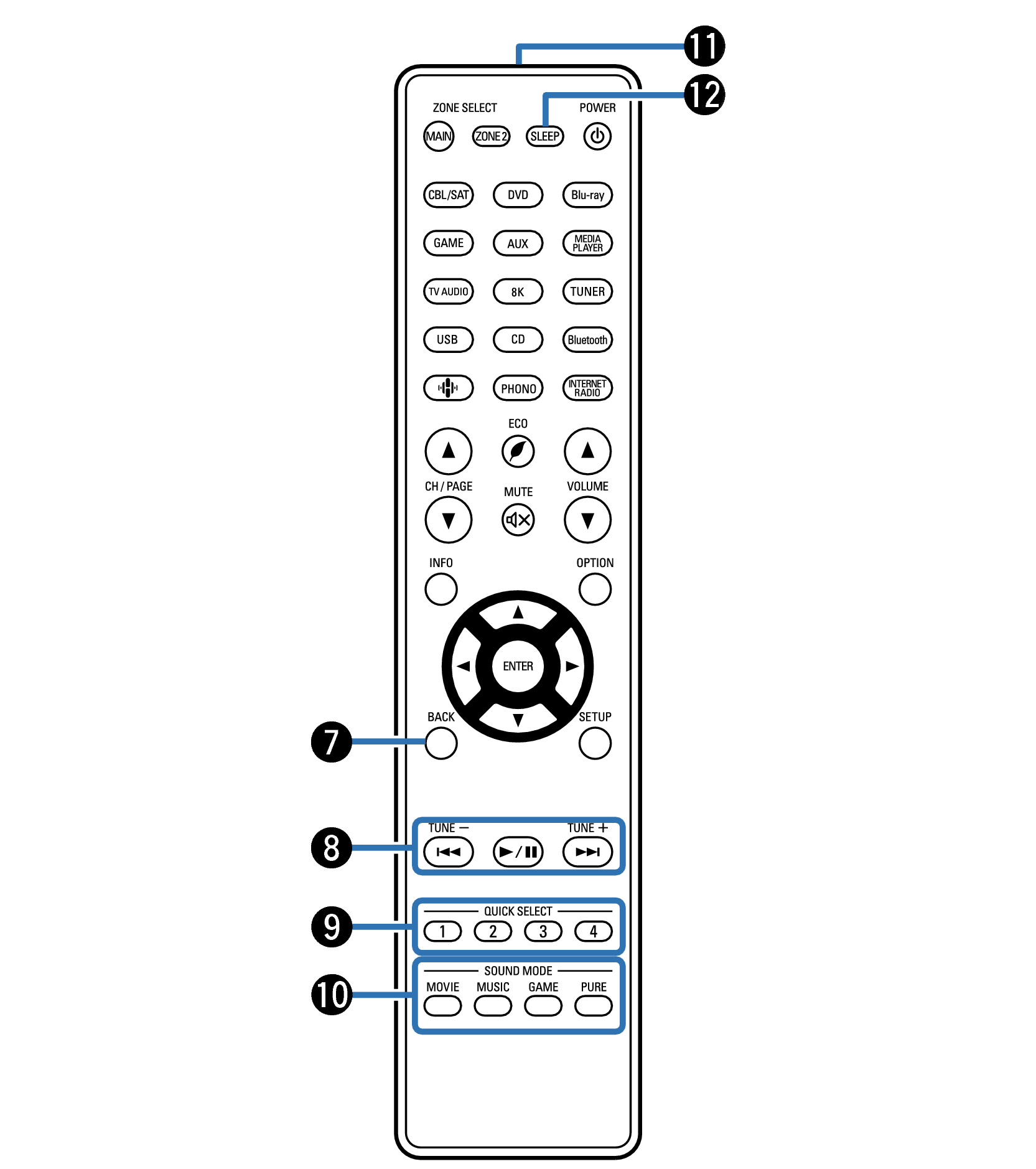

Name RC1239a

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

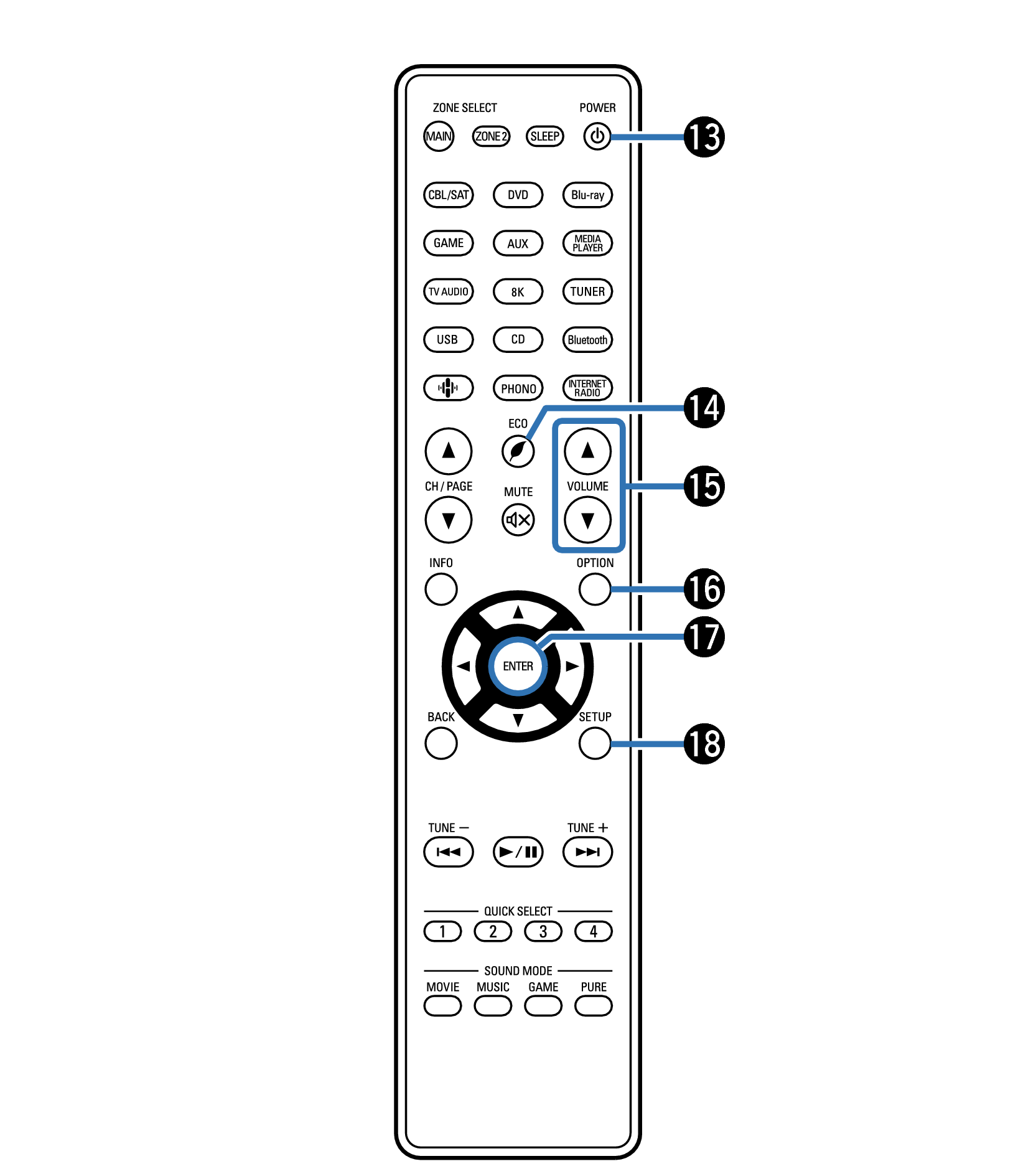

Name RC1239b

POWER button ( Power Button )

This turns the power on/off.

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level.

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link
