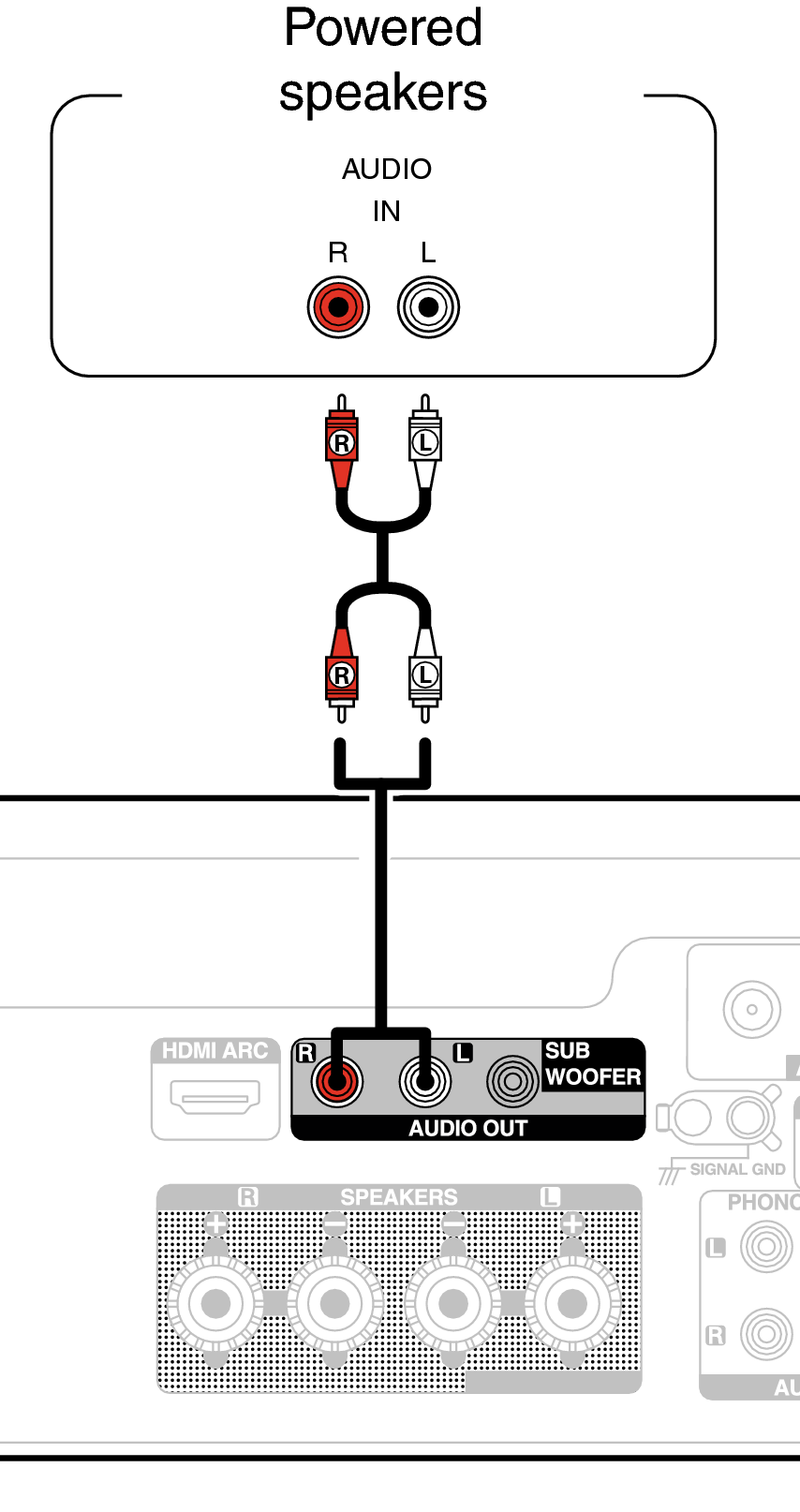

Connecting powered speakers

Conne Powered SP RCDN12DAB

You can adjust the analog audio output level using the VOLUME  kurosankaku Sankaku-Reverse buttons. The analog audio output volume is linked to the speaker volume.

When connecting powered speakers to this unit, see the owner’s manual of your powered speakers for details.
