Connections

NOTE

Do not plug in the power cord until all connections have been completed.

Do not bundle power cords with connection cables. Doing so can result in humming or noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

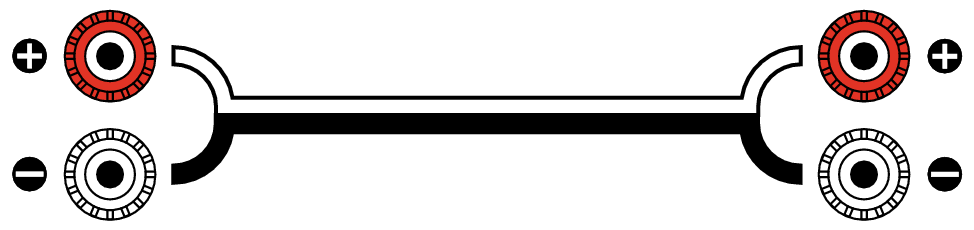

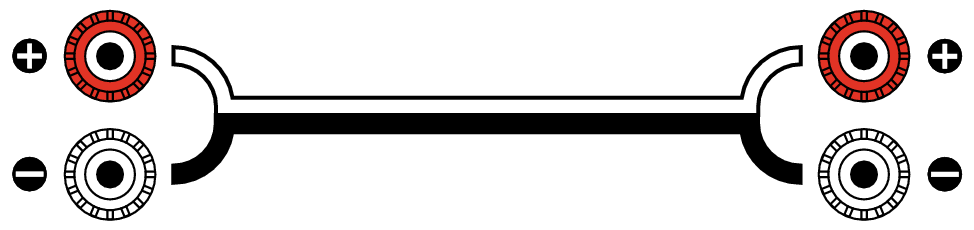

Speaker cable (not included)
Subwoofer cable (not included)
HDMI cable (included)
Optical cable (not included)

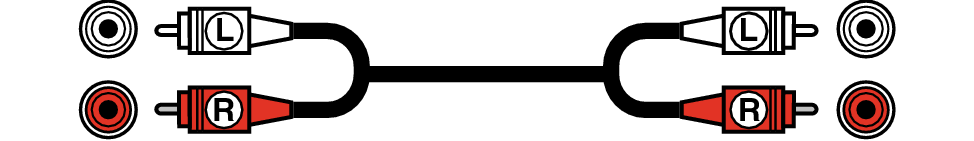

Audio cable (not included)
LAN cable (not included)
