Remote control unit

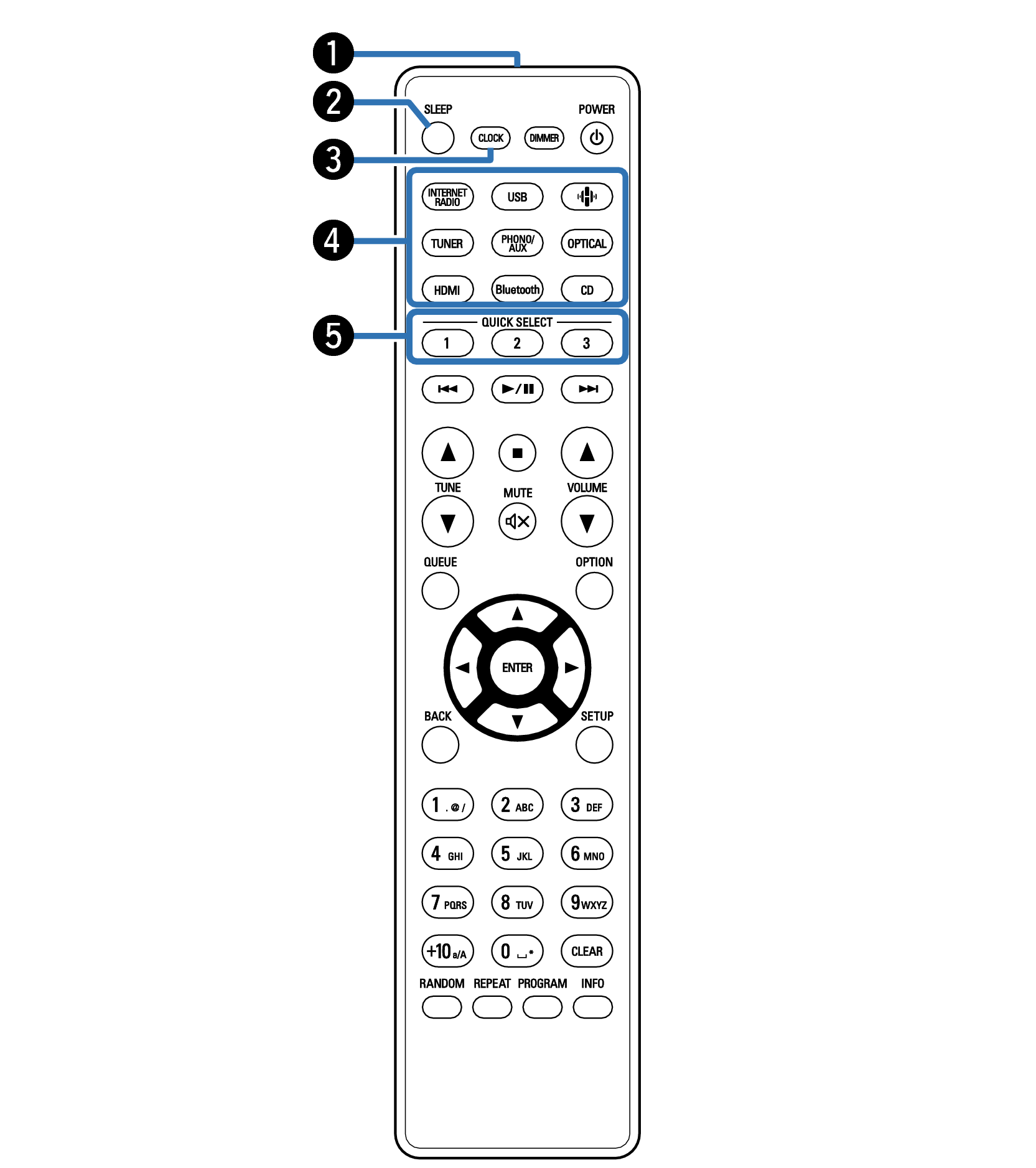

Name RC1255 1

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

CLOCK button

The current time appear on the unit. link

Input source select buttons

These select the input source. link

QUICK SELECT buttons (1 – 3)

These call up settings registered to each button, such as input source, volume level and “SDB/Tone” in the setup menu. link

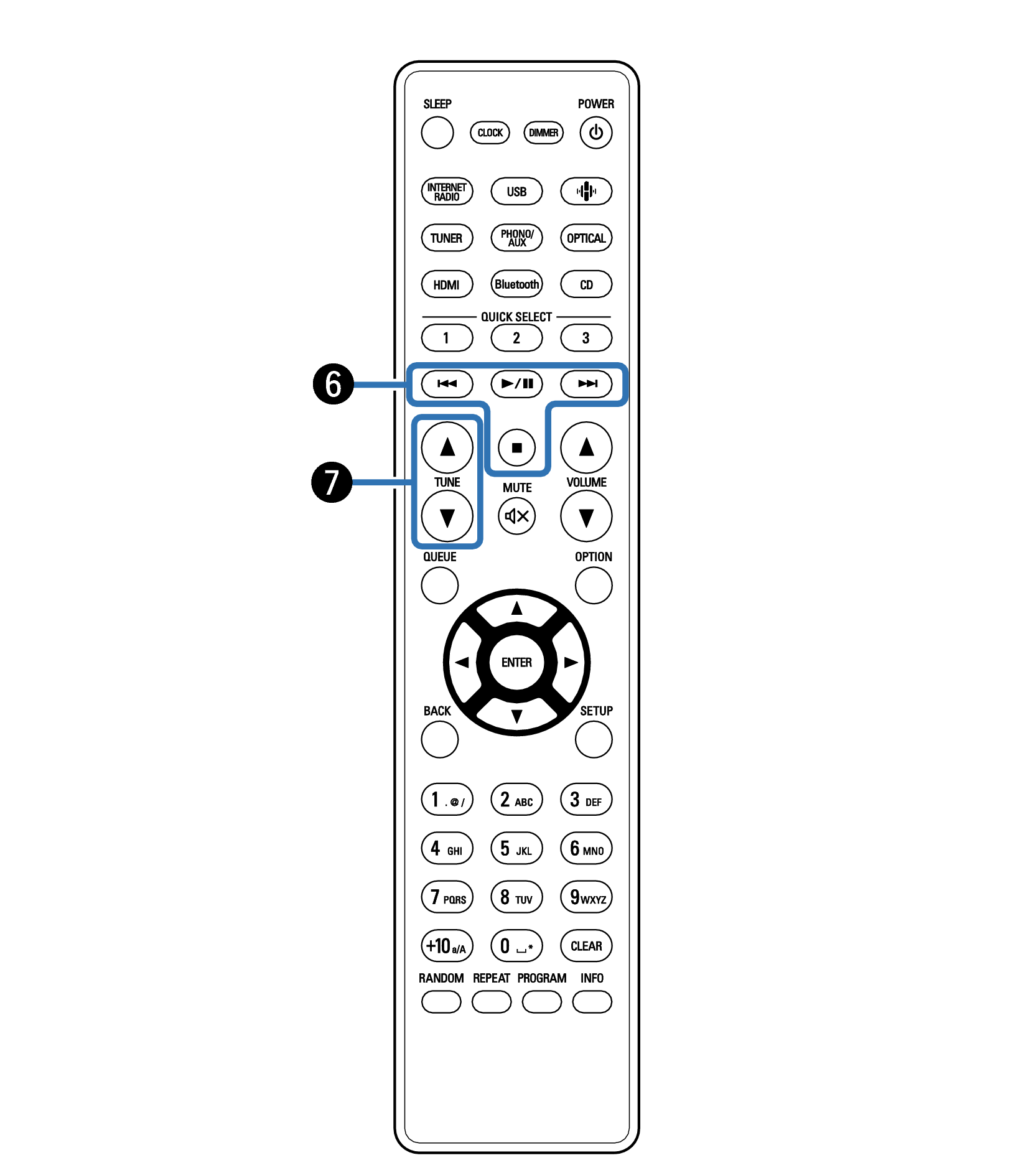

Name RC1255 2

System buttons

These perform playback related operations.

Play/Pause button ( Triangle Right / Pause )

Press this button to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.

Forward-skip button ( Skip-Right )

Press this button during playback to play the next track.

Press this button during tuner playback to select stations registered to the preset list. link

Reverse-skip button ( Skip-Left )

Press this button during playback to restart the current track or play the previous track.

Press this button during tuner playback to select stations registered to the preset list. link

Stop button ( Square Black )

Press this button to stop during playback.

Depending on the input source and online service, the operation cannot be performed.

TUNE buttons ( kurosankaku Sankaku-Reverse )

These operate the tuner. link

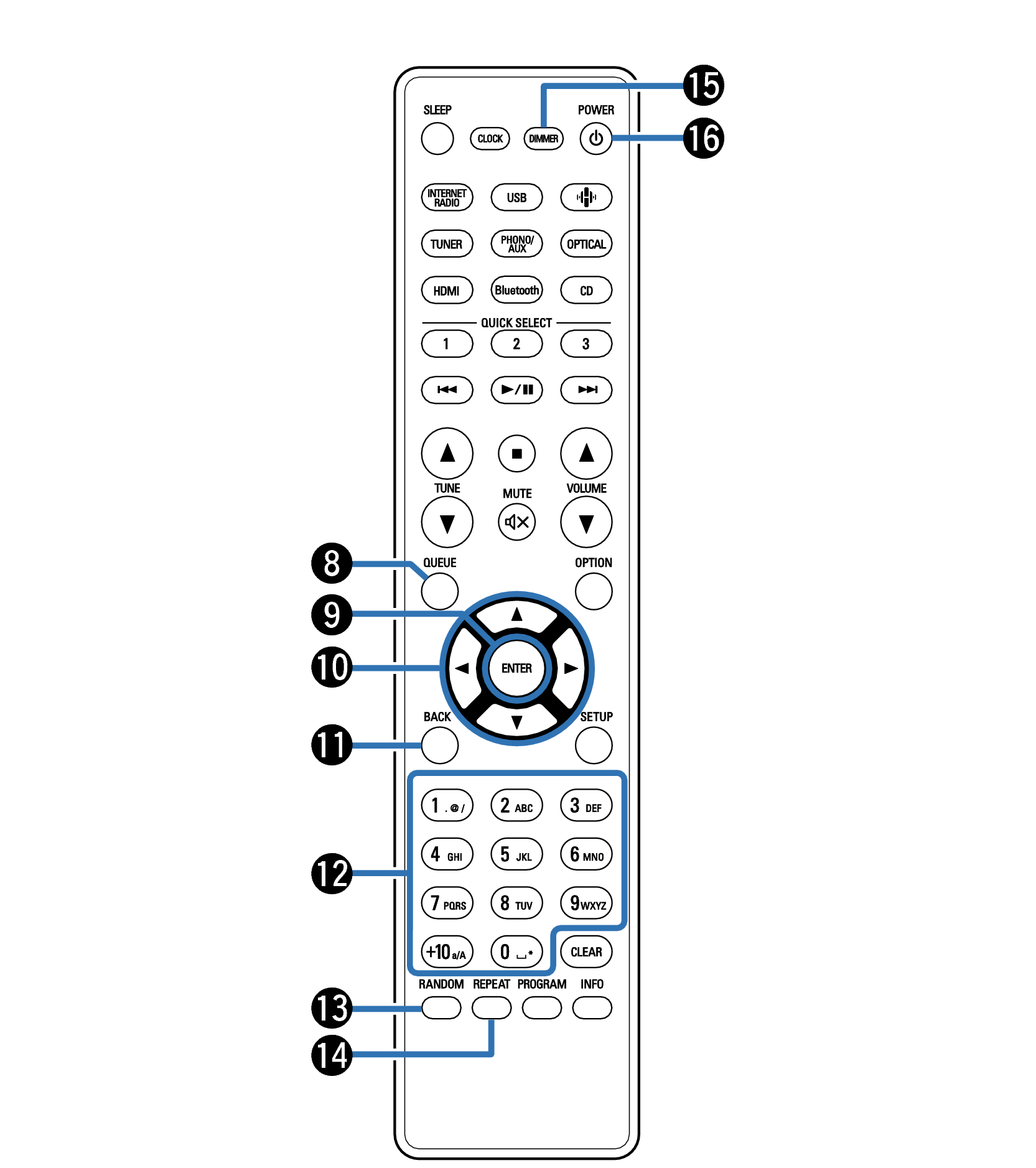

Name RC1255 3

QUEUE button

This displays the queue.

Listening to Internet Radiolink

Playing back files stored on PC or NASlink

Playing a USB flash drivelink

ENTER button

This determines the selection.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

BACK button

Returns to the previous item.

Number/letter buttons (0 – 9, +10)

These enter letters or numbers into the unit. link

RANDOM button

Switches the random playback.

REPEAT button

Switches the repeat playback.

DIMMER button

Adjust the display brightness of this unit. link

Power (POWER Power Button ) button

This turns the power on/off (standby). link

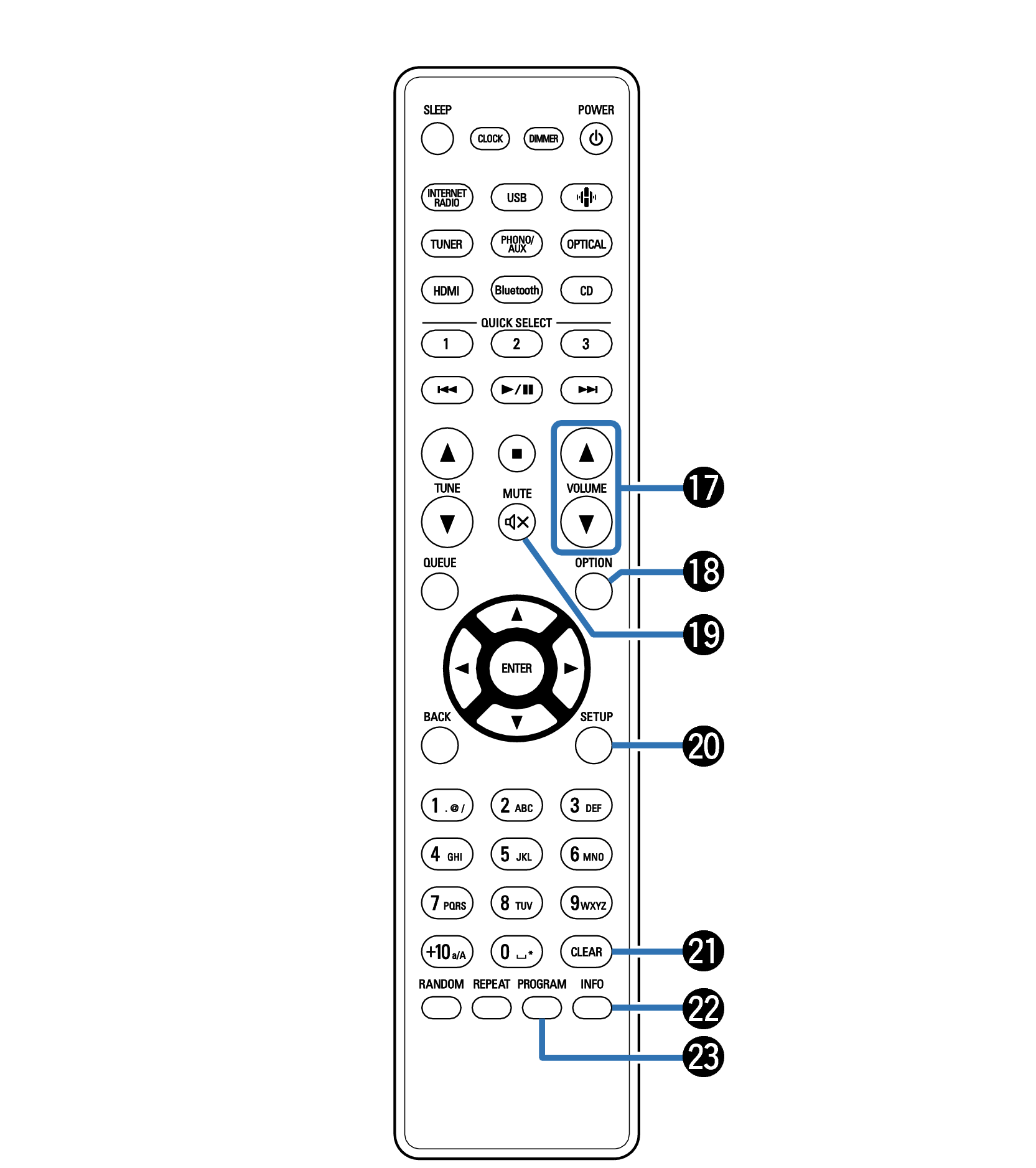

Name RC1255 4

VOLUME buttons ( kurosankaku Sankaku-Reverse )

Adjusts the volume. link

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

MUTE button ( Silent )

This mutes the output audio. link

SETUP button

The setup menu is displayed on the display. link

CLEAR button

This cancels the settings.

Information button (INFO)

This switches the track information shown in the display during playback.

PROGRAM button

This sets program playback. link

This switches the playback range on a data CD. link
