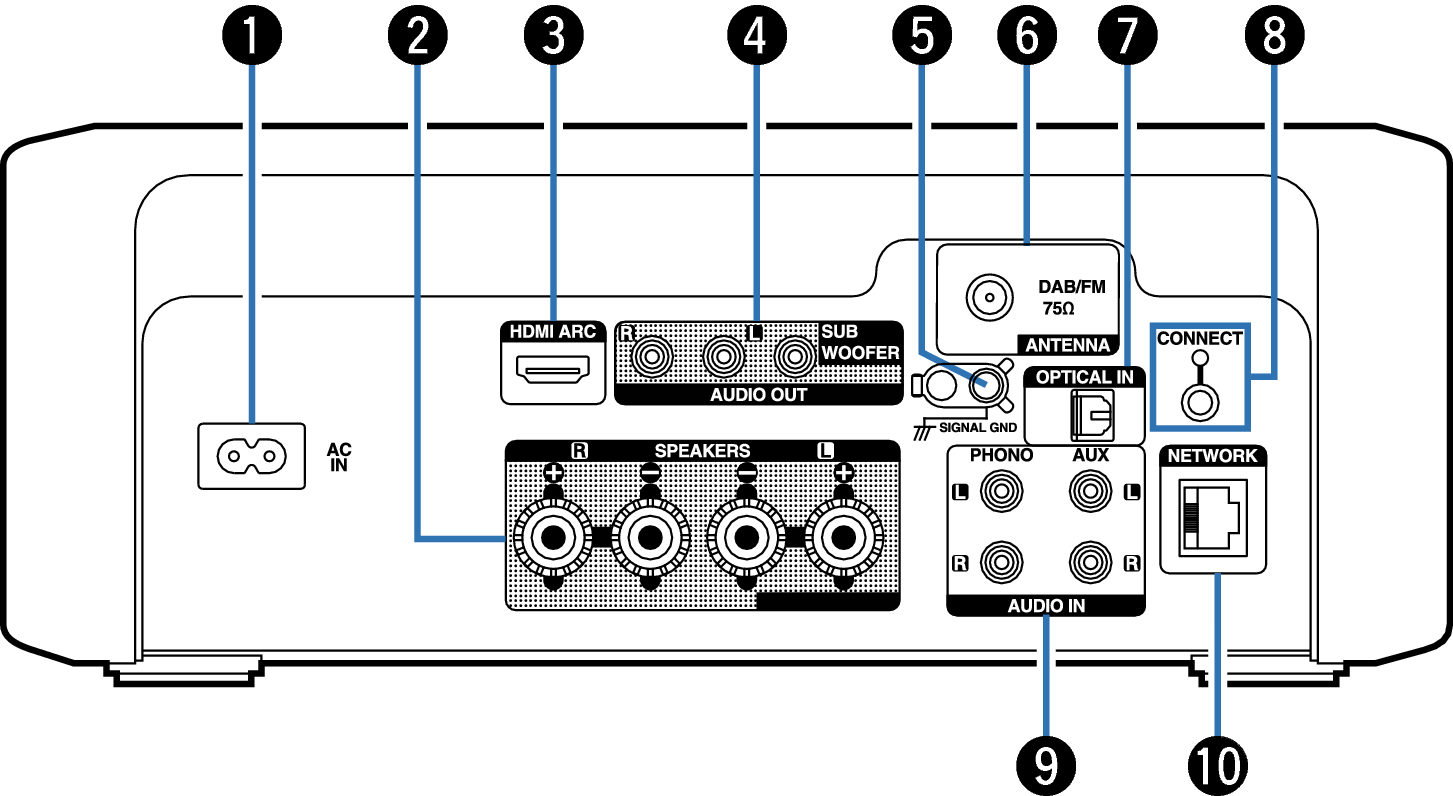

Rear panel

AC inlet (AC IN)

Used to connect the power cord. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

HDMI connector (HDMI ARC)

Used to connect an ARC function-compatible TV. link

AUDIO OUT connectors

Used to connect a subwoofer or powered speakers.

“Connecting the subwoofer” link

“Connecting powered speakers” link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

DAB/FM antenna terminal (ANTENNA)

Used to connect a DAB/FM antenna. link

OPTICAL IN connector

Connecting to a device with optical digital audio output connector. link

CONNECT button/light

Used for Wi-Fi setup. link

AUDIO IN connectors

Connecting to a device with analog audio output connectors. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link
