Connecting the speaker cables

Connect the speaker cable with a rubber tube (red) to the + speaker terminal (red), and the other cable to the - speaker terminal (black).

Peel off about 10 mm of sheathing from the tip of the speaker cable, then either twist the core wire tightly or terminate it.
Conn spCable1

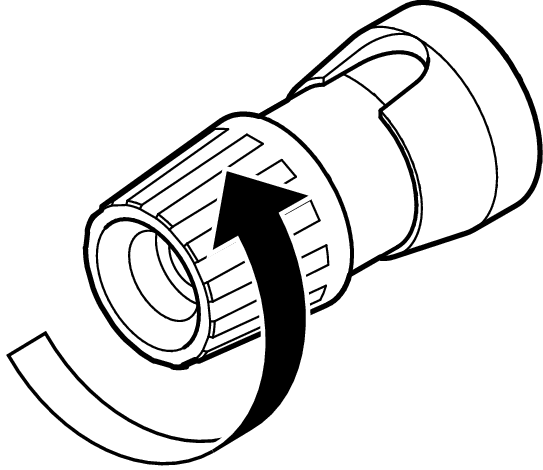

Turn the speaker terminal counterclockwise to loosen it.
Conne M40 SP cable 1

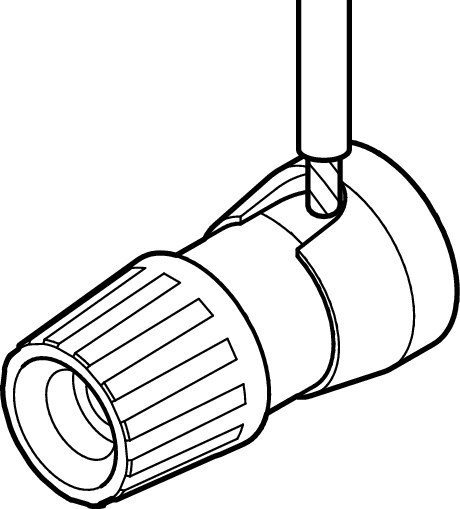

Insert the speaker cable’s core wire to all the way into the speaker terminal.
Conne M40 SP cable 2

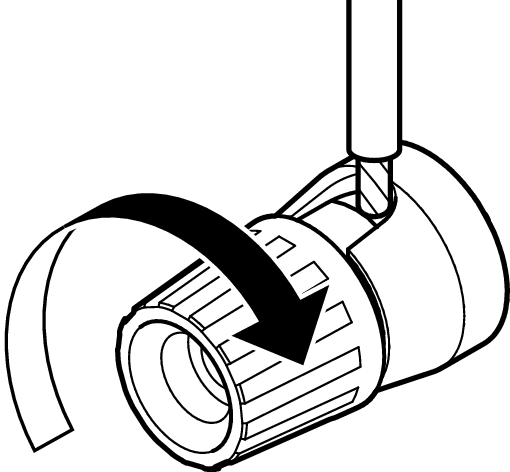

Turn the speaker terminal clockwise to tighten it.
Conne M40 SP cable 3
