Mounting the platter

Mount the hole in the center of the platter on the center spindle.
NOTE

Make sure there are no foreign objects around the center spindle before mounting the platter.

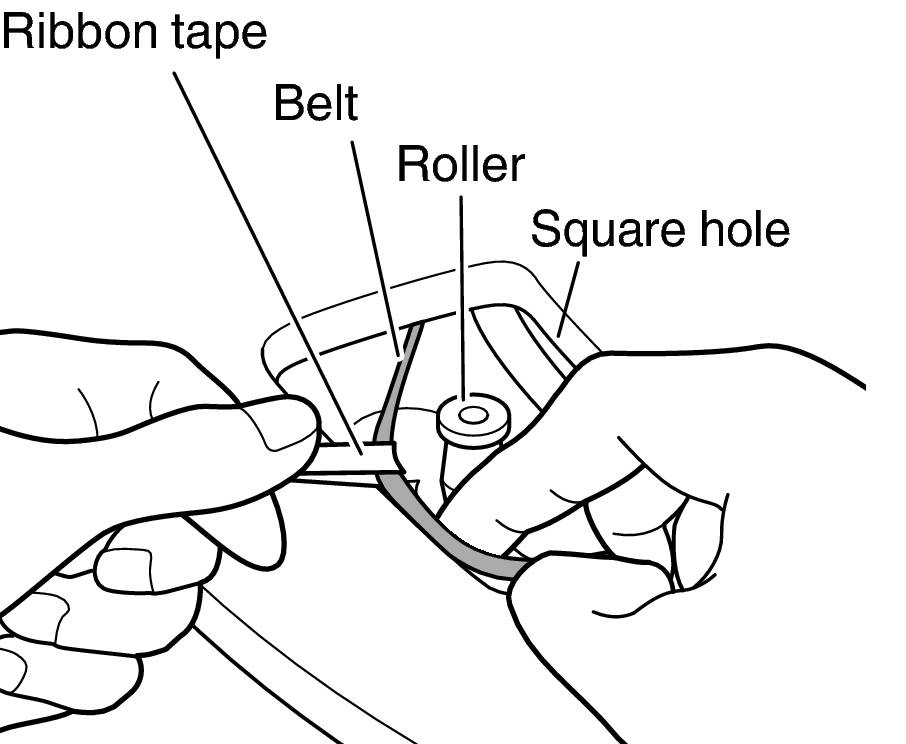

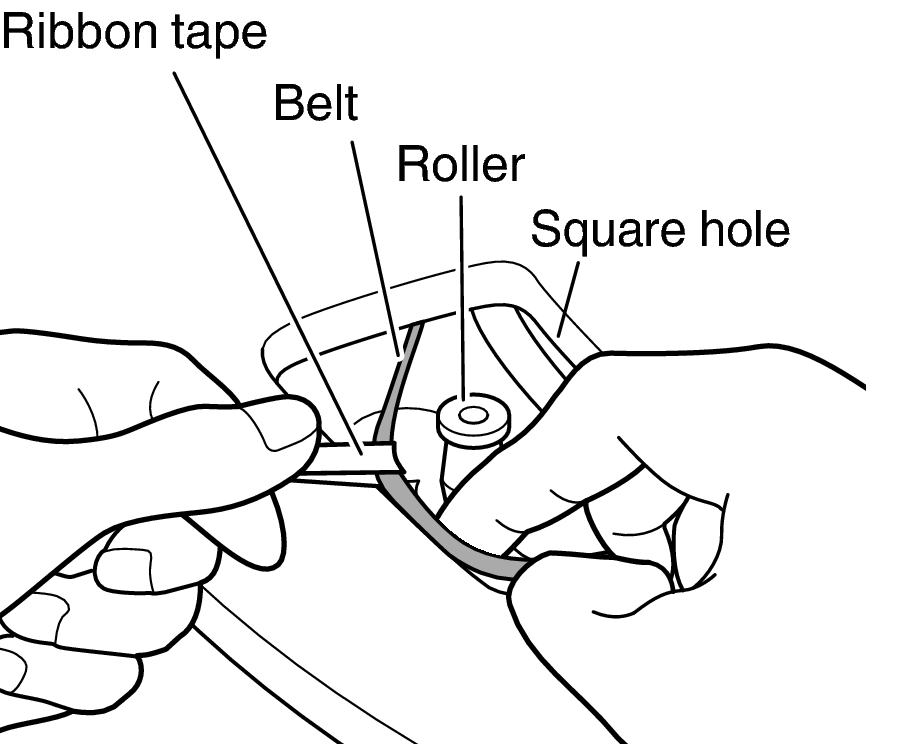

Turn the platter until the roller of the main unit is visible from the square hole on the side with the ribbon tape.
Pull out the ribbon tape, and hang the belt on the roller.

Remove the ribbon tape after hanging the belt.

Asse Belt

Take care not to twist the belt when hanging it.

Store the ribbon tape after use, as it is required when replacing the belt.

Mount the platter mat on the platter.

Mount the mat with the side featuring the DENON logo facing down.
