Playback the source in ZONE2
Playing the same source simultaneously in MAIN ZONE and ZONE2 (TV Audio Sharing setting)
By setting the ZONE2 input source to “Source” in the TV Audio sharing settings of this unit, you can play audio input from a TV via ARC or from a playback device in the MAIN ZONE while enjoying the same content in ZONE2.
Only the controls on the main unit can be used to set “Source” as the input source.

The indicator on the display lights.
If “Source” is selected as the input source of ZONE2, the input source is changed to mirror that of the MAIN ZONE. “Source” is the default setting.
The following audio signals can be played in ZONE2.
Input |
Output |
---|---|
ZONE2 |
|
Digital Audio (HDMI) |
|
Digital Audio (Coaxial/Optical) |
|
Analog Audio |
|
USB |
|
HEOS Music |
|
TUNER |
|

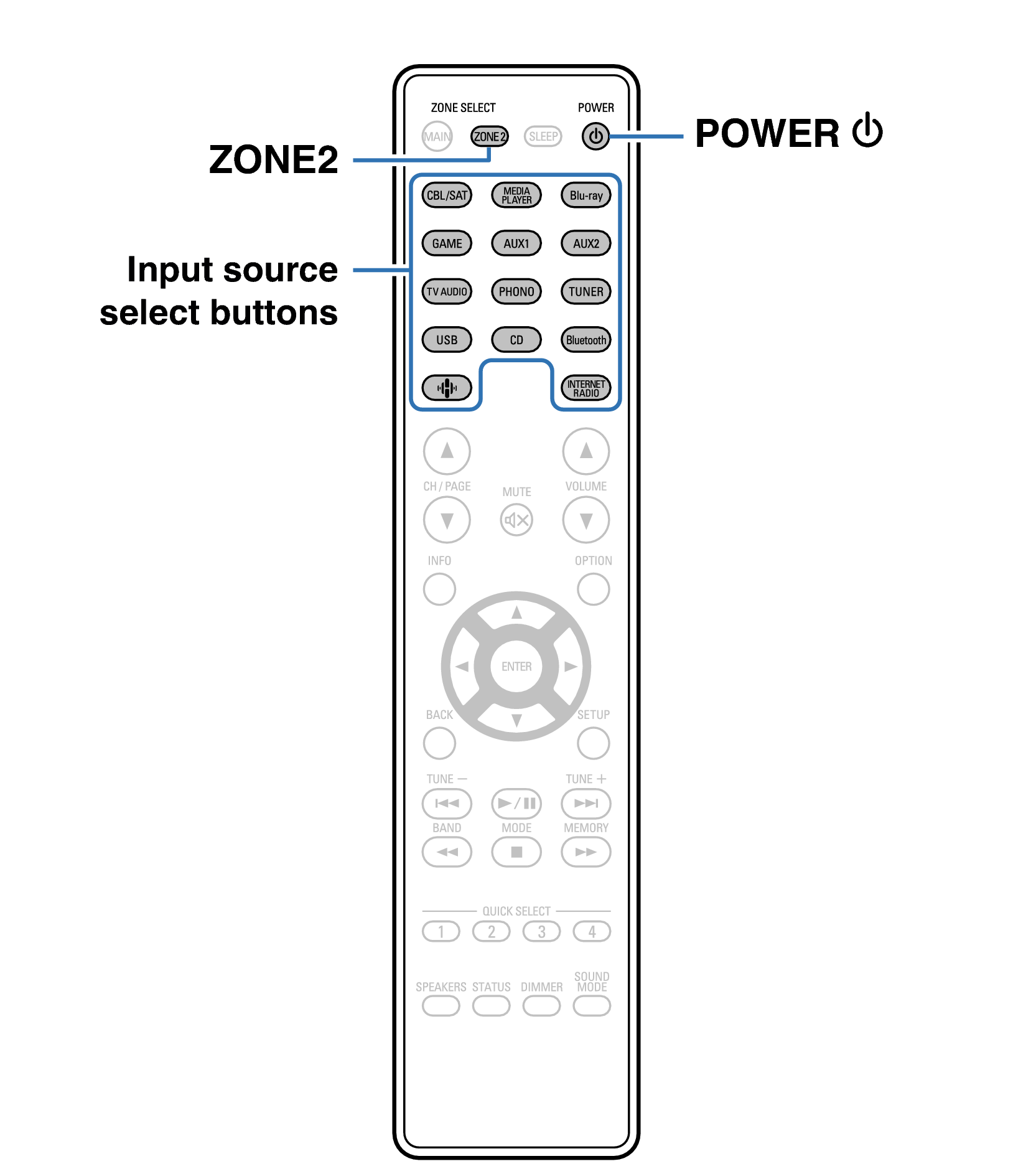

Playing different sources in MAIN ZONE and ZONE2

The ZONE2 button lights.

The indicator on the display lights.

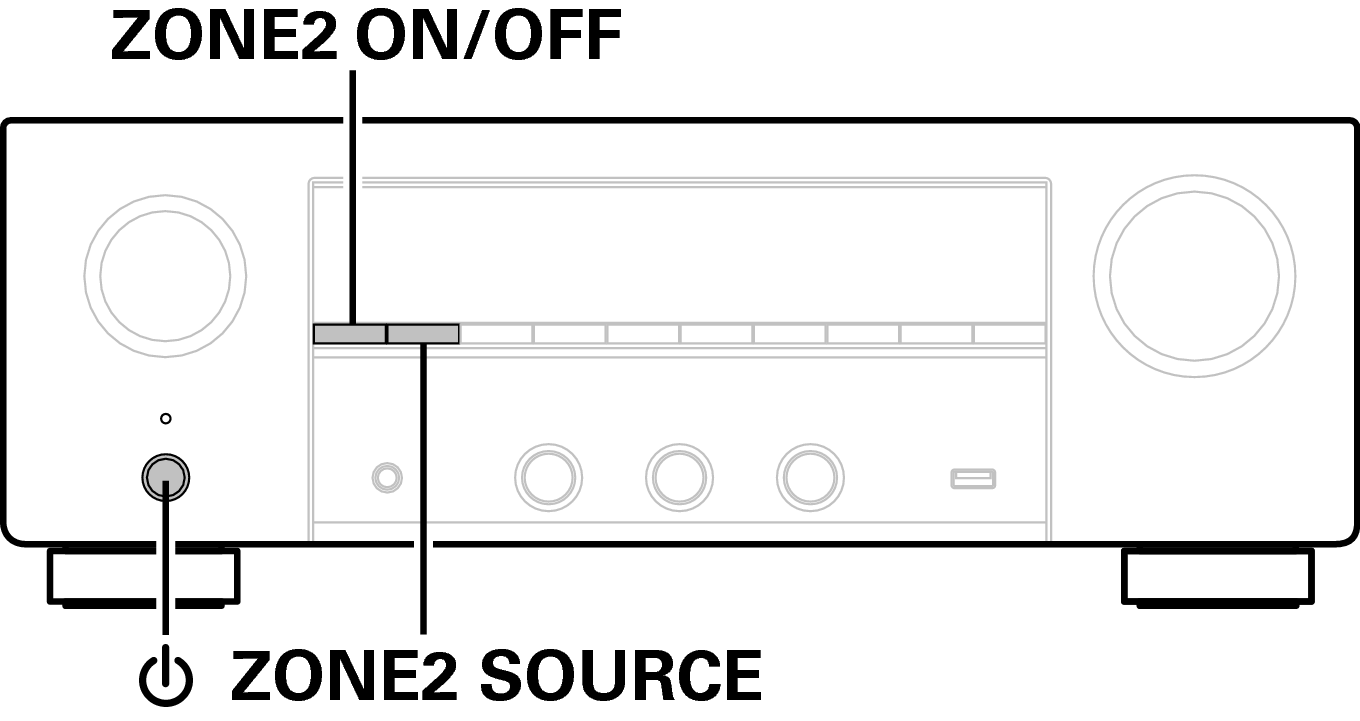

Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.
The audio signal of the selected source is output to ZONE2.
To perform an operation with the main unit, press ZONE2 SOURCE. Each time you press ZONE2 SOURCE, the input source changes.
The following audio signals can be played in ZONE2.
Input |
Output |
---|---|
ZONE2 |
|
Digital Audio (HDMI) |
|
Digital Audio (Coaxial/Optical) |
|
Analog Audio |
|
USB |
|
HEOS Music |
|
TUNER |
|
