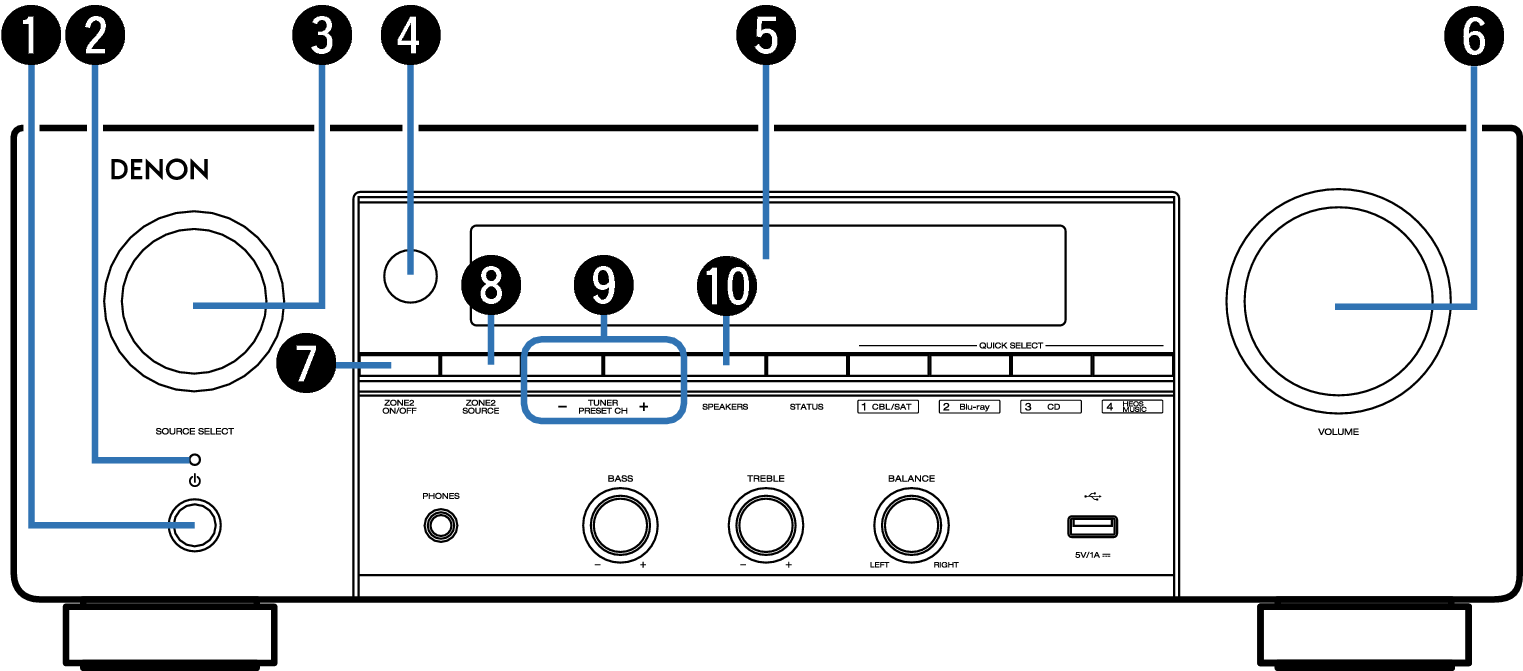

Front panel

Power operation button (
)
Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). link
Power indicator
This is lit as follows according to the power status:
Green: Power on
Off: Normal standby
Red:
When “HDMI Pass Through” is set to “On”link
When “HDMI Control” is set to “On”link
When “Network Control” is set to “Always On” link
SOURCE SELECT knob
This selects the input source. link
Remote control sensor
This receives signals from the remote control unit. link
Display
This displays various pieces of information. link
MASTER VOLUME knob
This adjusts the volume level. link
ZONE2 ON/OFF button
This turns the power of ZONE2 (another room) on/off. link
ZONE2 SOURCE button
This selects the input source for ZONE2. link
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. link
Speaker switching button (SPEAKERS)
This selects the speaker for audio output.

STATUS button
Each press of this switches the status information that is shown on the display.
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. link

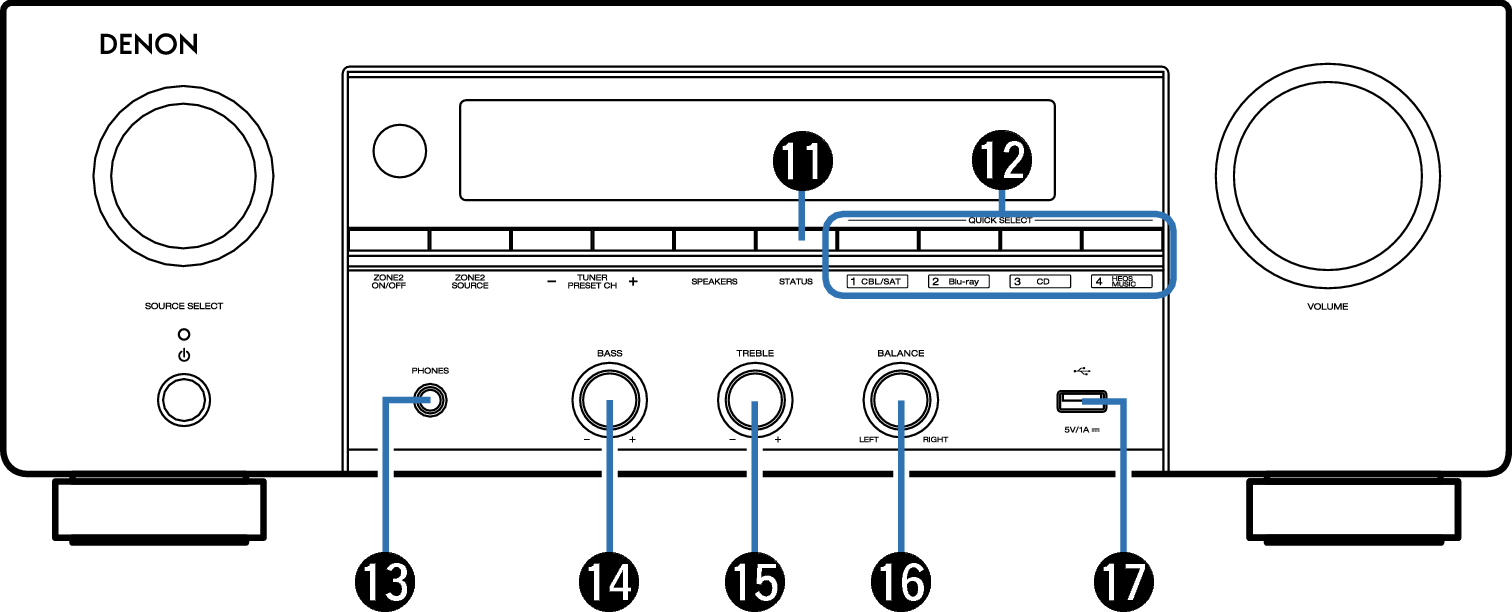

Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the SUBWOOFER connectors.
To prevent hearing loss, do not raise the volume level excessively when using headphones.
Bass control knob (BASS)
This setting adjusts the volume level for the bass.
Treble control knob (TREBLE)
This setting adjusts the volume level for the treble.
Balance knob (BALANCE)
This adjusts the balance of the volume output from the left and right speakers.
USB port (
)
This is used to connect USB storages (such as USB memory devices). link
