Installing horizontally

This orientation is suitable for placing this unit under the monitor when you use a desktop computer.

When placing this unit horizontally, install as follows.

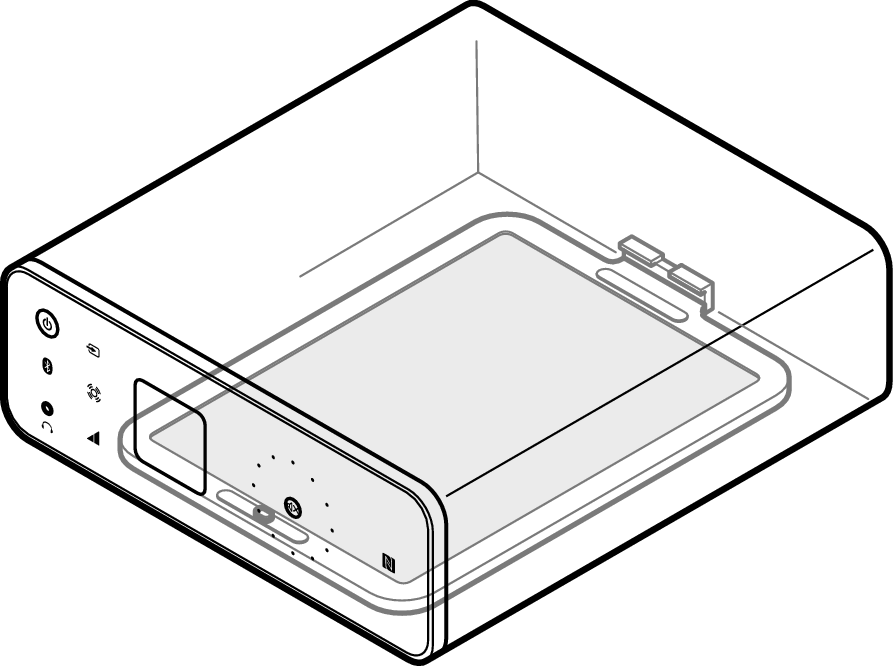

Horizontal placement1 PMA N2

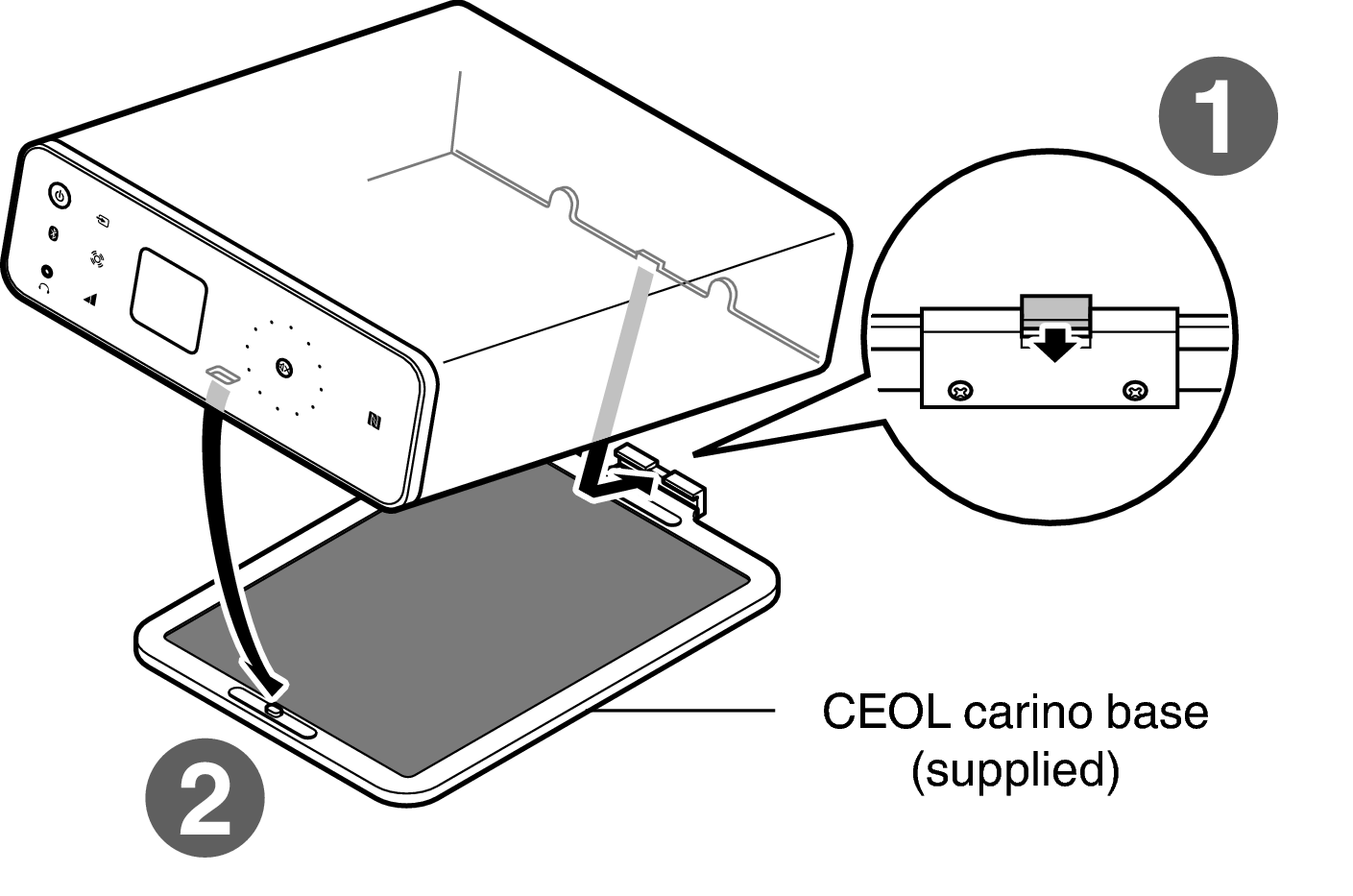

How to attach the CEOL carino base (for horizontal placement)

Attach the base to this unit as follows.

Horizontal placement2 PMA N2
