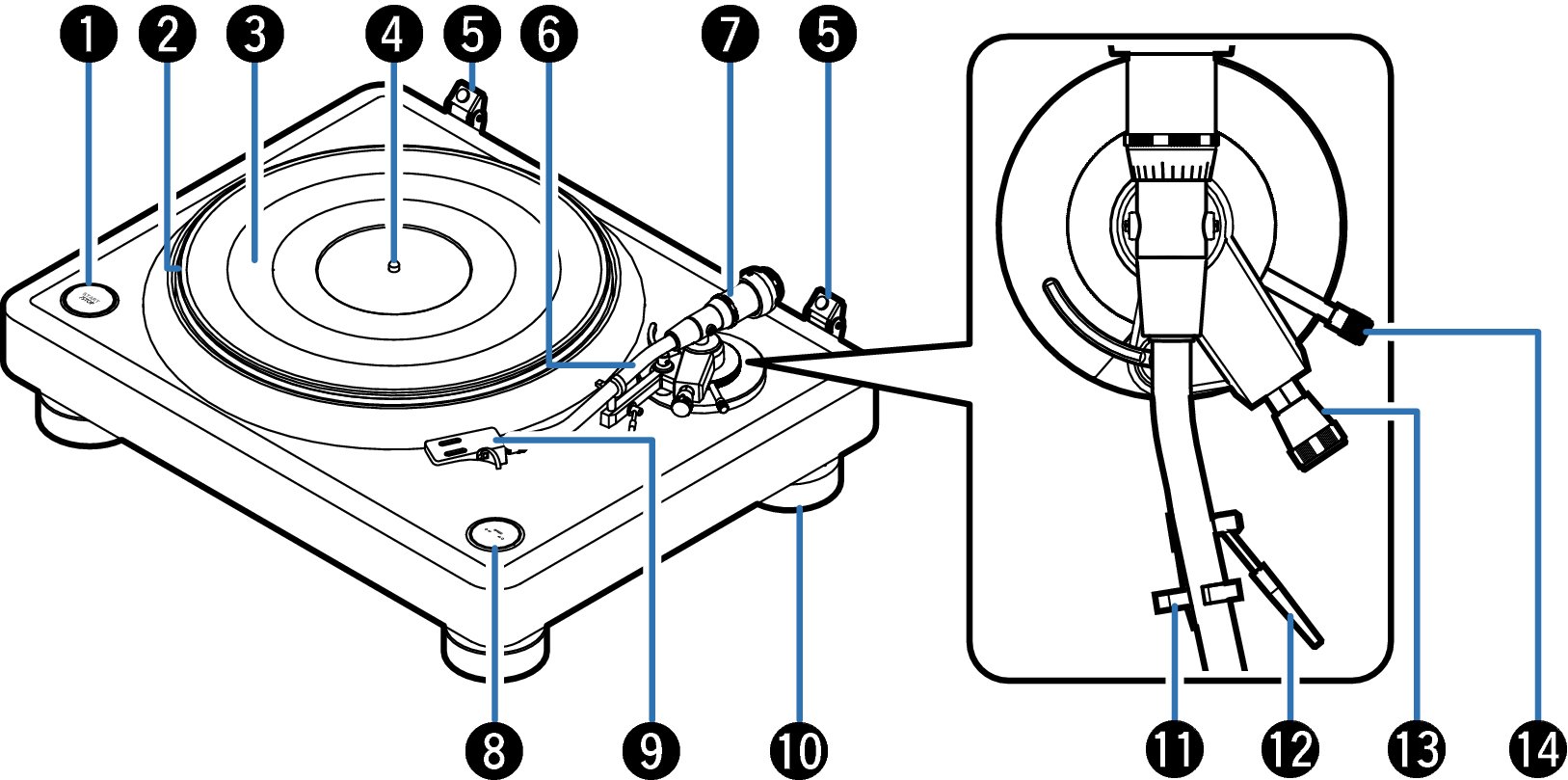

Front
START/STOP button
Starts and stops the platter. link
Platter
Attached by mounting on the center spindle on the main unit. link
Platter mat
Mounted on top of the platter. link
Center spindle
Place the platter and records so that it comes out through the center.
Hinge for attaching the dust cover
Used to attach the included dust cover. link
Tone arm
The counterweight is mounted on the back. link
The head shell is attached to the tip. link
The sub weight is mounted on the back. link
Counterweight
Attached to the back of the tone arm to adjust stylus pressure.
SPEED 33/45 button
Set the correct speed for the record you are playing. link
Head shell
Mount a commercial cartridge to the head shell and then mount the head shell at the tip of the tone arm. link
Insulator
The height of the insulator can be adjusted. link
Armrest
Rest the tone arm here when it is not in use for record playback.
Lifter lever
Raises and lowers the tone arm. Lowering the lever slowly lowers the tone arm to place the stylus without damaging it or the record to be played. (Factory default setting: lowered position)
Anti-skating knob
Adjusts anti-skating. link
Arm height adjustment knob
Adjust the height of the tone arm according to the cartridge and head shell you are using. link
