Before connecting speakers
Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also, turn off the subwoofer.
Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other. (Protection circuitlink)
Never touch the speaker terminals while the power cord is connected. Doing so could result in electric shock. When the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) is running, follow the instructions in the “Setup Assistant” screen for making connections. (Power is not supplied to the speaker terminals while the “Setup Assistant” is running.)
Use speakers with an impedance of 4 – 16 Ω/ohms.
Carry out the following settings when using a speaker with an impedance of 4 – 6 Ω/ohms.
“ Video Format < PAL>” appears on the display.
“ Sp. Impedance <8ohms>” appears on the display.
8ohms |
Select when the impedance for all of the connected speakers is 8 Ω/ohms or over. |
6ohms: |
Select when the impedance for any of the connected speakers is 6 Ω/ohms. |
4ohms: |
Select when the impedance for any of the connected speakers is 4 Ω/ohms. |
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.

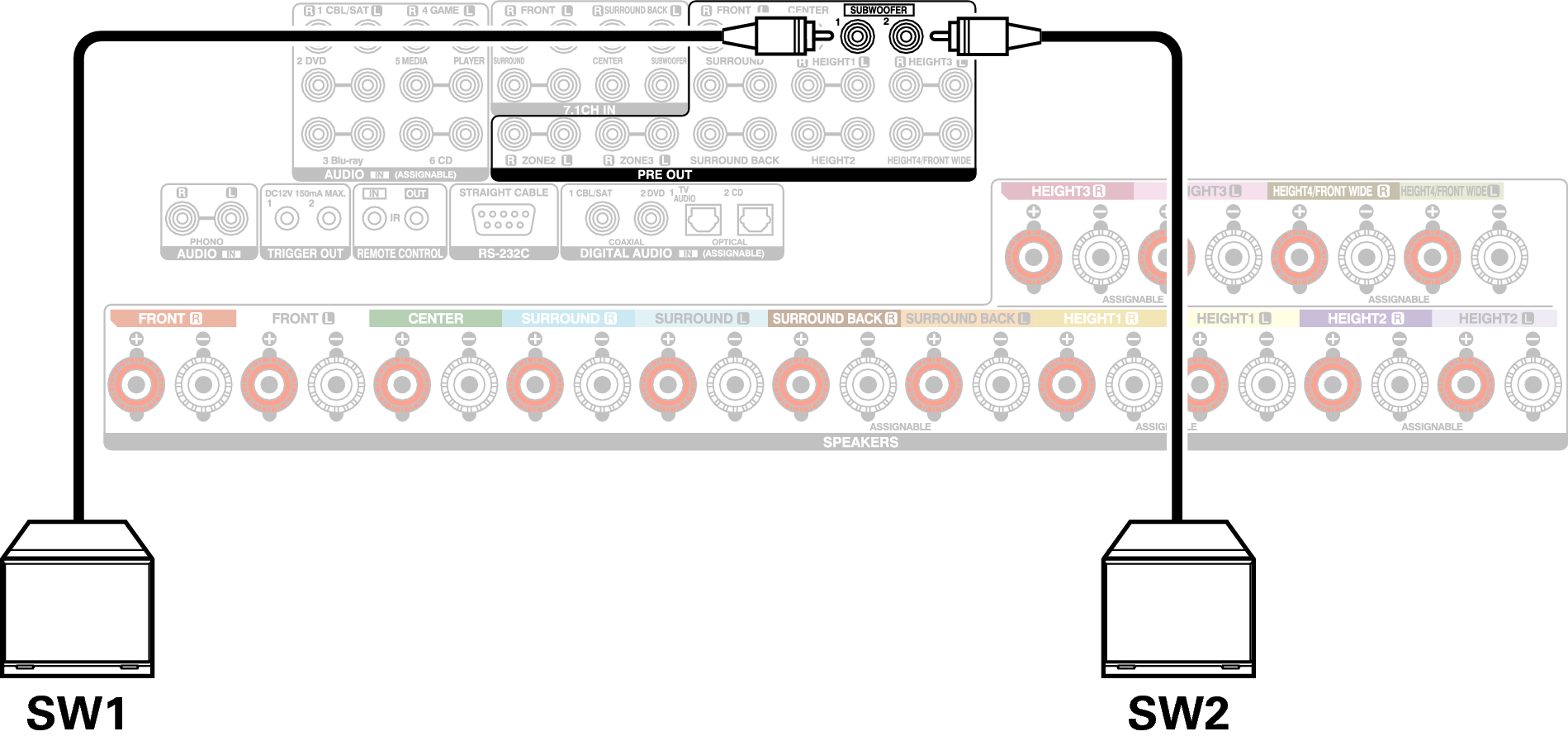

Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can be connected to this unit.
To use two subwoofers, set “Subwoofer” to “2 spkrs” in the “Speaker Config.” setting. link
The level and distance can be set separately for Subwoofer 1 and Subwoofer 2.
About the cable labels (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker cable.
Speaker |
Color |
---|---|
FRONT L |
White |
FRONT R |
Red |
CENTER |
Green |
SURROUND L |
Light Blue |
SURROUND R |
Blue |
SURROUND BACK L |
Beige |
SURROUND BACK R |
Brown |
FRONT WIDE L |
Glass Green |
FRONT WIDE R |
Olive Green |
FRONT HEIGHT L |
Light Yellow |
FRONT HEIGHT R |
Yellow |
TOP FRONT L |
Light Yellow |
TOP FRONT R |
Yellow |
TOP MIDDLE L |
Pink |
TOP MIDDLE R |
Magenta |
TOP REAR L |
Light Purple |
TOP REAR R |
Purple |
SURROUND HEIGHT L |
Pink |
SURROUND HEIGHT R |
Magenta |
REAR HEIGHT L |
Light Purple |
REAR HEIGHT R |
Purple |
TOP SURROUND |
Glass Green |
CENTER HEIGHT |
Olive Green |
FRONT DOLBY L |
Light Yellow |
FRONT DOLBY R |
Yellow |
SURROUND DOLBY L |
Pink |
SURROUND DOLBY R |
Magenta |
BACK DOLBY L |
Light Purple |
BACK DOLBY R |
Purple |
SUBWOOFER 1 |
Black |
SUBWOOFER 2 |
Black |

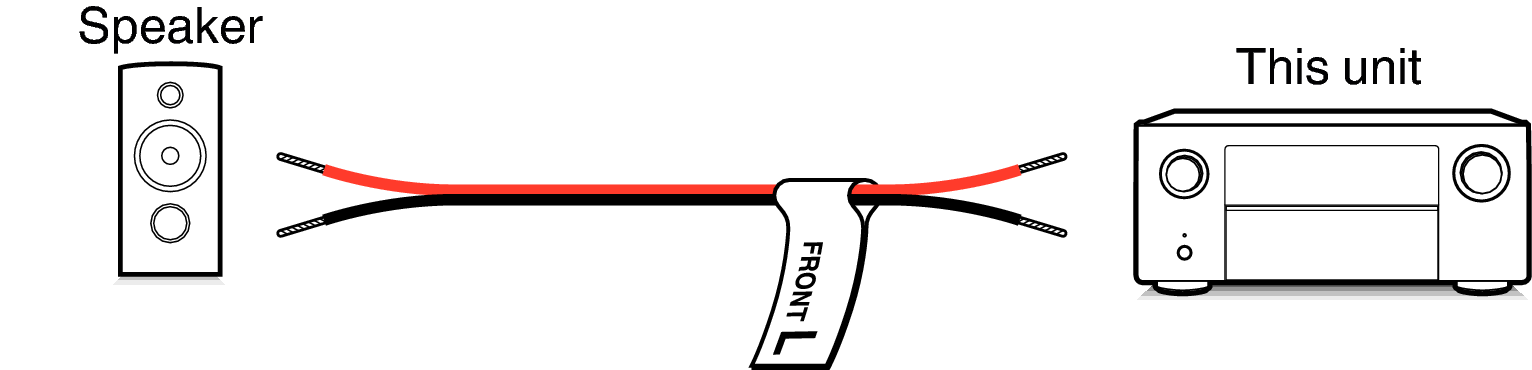

Attach the cable label for each channel to its speaker cable as shown in the diagram.
Refer to the table and attach the label to each speaker cable.
Then, make connection so that the color of the speaker terminal matches that of the cable label.
How to attach the cable labels
