Menu map

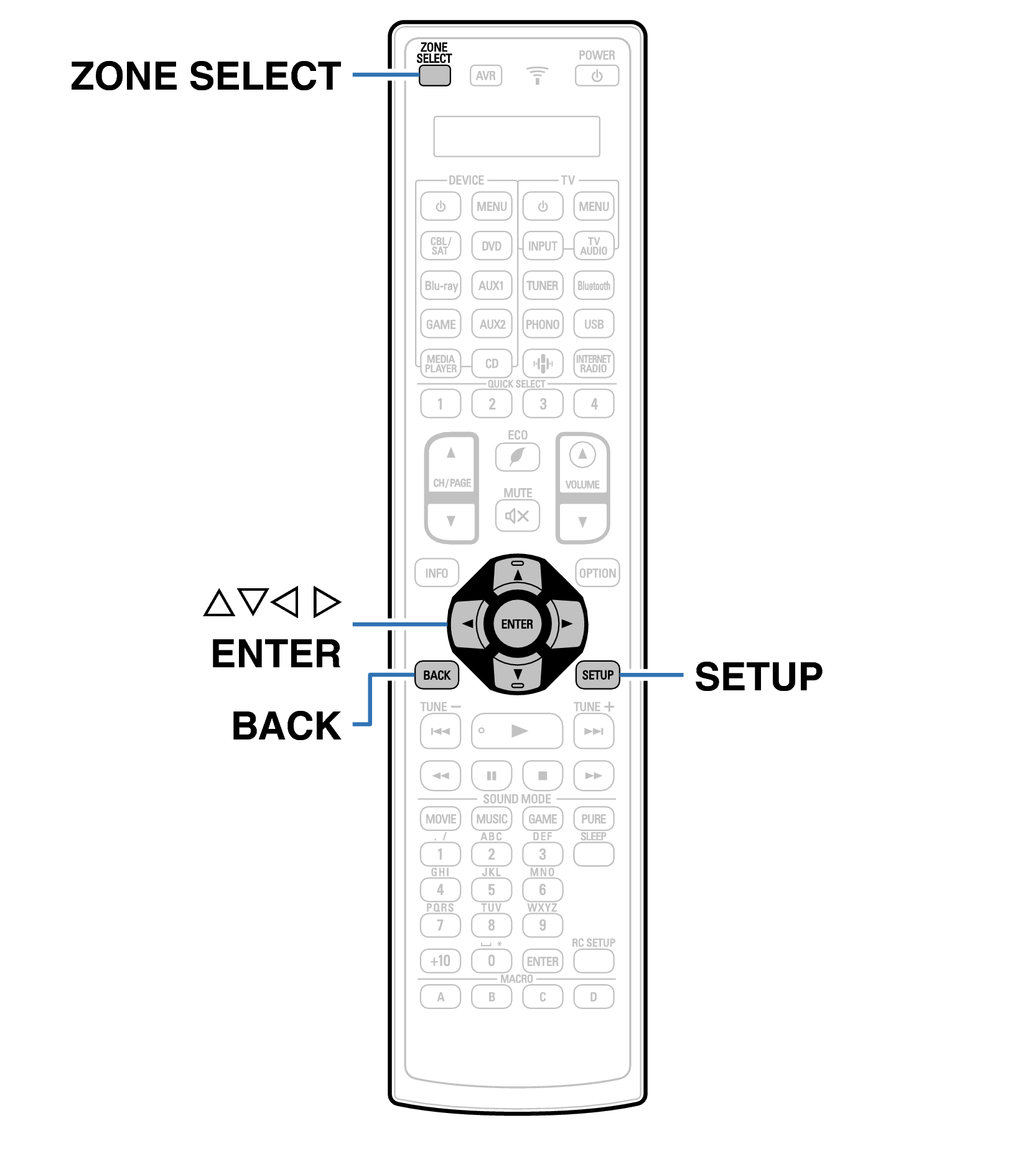

When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Audio |
Subwoofer Level Adjust |
Adjusts the subwoofer channel volume for all input sources. |
|
Bass Sync |
Adjusts the phase shift when there is a delay in the bass (LFE) recorded on a disc. |
||
Surround Parameter |
Adjusts surround sound parameters. |
||
Restorer |
Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. |
||
Audio Delay |
Compensates for incorrect timing between video and audio. |
||
Volume |
Sets the MAIN ZONE (room where the unit is located) volume setting. |
||
Audyssey |
Makes Audyssey MultEQ® XT32, Audyssey Dynamic EQ®, Audyssey Dynamic Volume® and Audyssey LFCTM settings. |
||
Graphic EQ |
Uses the graphic equalizer to adjust the tone of each speaker. |
||
Video |
Picture Adjust |
Adjusts picture quality. |
|
HDMI Setup |
Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. |
||
Output Settings |
Makes settings for video output. |
||
Analog Video Out |
Selects the zone that uses component video output and video output. |
||
On Screen Display |
Configures the on-screen display settings. |
||
4K/8K Signal Format |
Sets signal format options for your 4K or 8K video equipment. |
||
TV Format |
Sets the video signal format to be output for the TV you are using. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
Inputs |
Input Assign |
Changes input connector assignment. |
|
Source Rename |
Changes the display name for input source. |
||
Hide Sources |
Removes from the display input sources that are not used. |
||
Source Level |
Adjusts the playback level of the audio input. |
||
Input Select |
Sets the audio input mode. |
||
Speakers |
Audyssey® Setup |
The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. |
|
Manual Setup |
Sets up the speakers manually or changes Audyssey® Setup settings. |
||
Network |
Information |
Displays network information. |
|
Connection |
Selects whether to connect the home network to a wireless LAN or a wired LAN. |
||
Settings |
Used for manually setting the IP address. |
||
Network Control |
Enables network communication in standby power mode. |
||
Friendly Name |
The “Friendly Name” is the name of this unit displayed on the network. You can change the Friendly Name according to your preferences. |
||
Diagnostics |
Used to check the network connection. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
HEOS Account |
【When the user is signed out the HEOS Account】 |
||
I have a HEOS Account |
Selects to sign in. |
||
Create Account |
Creates new HEOS Account. |
||
Forgot Password |
If you forgot your password, we'll send you an email with instructions about how to reset it. |
||
【When the user is signed in the HEOS Account】 |
|||
Signed in As |
Displays your HEOS Account. |
||
Change Location |
Selects your location. |
||
Change Password |
Changes your HEOS Account Password. |
||
Delete Account |
Deletes your HEOS Account. |
||
Sign Out |
Sign out of your HEOS Account. |
Setting items |
Detailed items |
Description |
Page |
---|---|---|---|
General |
Language |
Changes the language of the display on the TV screen. |
|
ECO |
Configures the ECO Mode and Auto Standby energy-saving functions. |
||
ZONE2 Setup/ |
Makes settings for audio playback with ZONE2 and ZONE3. |
||
Zone Rename |
Changes the display title of each zone to one you prefer. |
||
Quick Select Names |
Changes the Quick Select Name display title to one you prefer. |
||
Trigger Out 1/ |
Select the conditions for activating trigger out function. |
||
Front Display |
Makes settings related to the display on this unit. |
||
Firmware |
Checks for the latest firmware information about updates and upgrades, updates the firmware, and sets up the notification message display. |
||
Information |
Shows information about this unit settings, input signals, etc. |
||
Remote ID |
Sets the ID of the remote control code to which this unit responds. |
||
Usage Data |
Selects whether or not to send anonymous usage data to Denon. |
||
Save & Load |
Save and restore device settings by using a USB memory device. |
||
Setup Lock |
Protects settings from inadvertent changes. |
||
Setup Assistant |
Begin Setup... |
Performs basic installation/connections/settings from the beginning according to the guidance indicated on the TV screen. |
Page 9 of the separate manual “Quick Start Guide” |
Language Select |
Sets individual setting items according to the guidance displayed on the TV screen. |
||
Speaker Setup |
|||
Speaker Calibration |
|||
Network Setup |
|||
TV Audio Connection |
|||
Input Setup |
|||
Mobile Apps |
