Playback

Playback in ZONE2/ZONE3

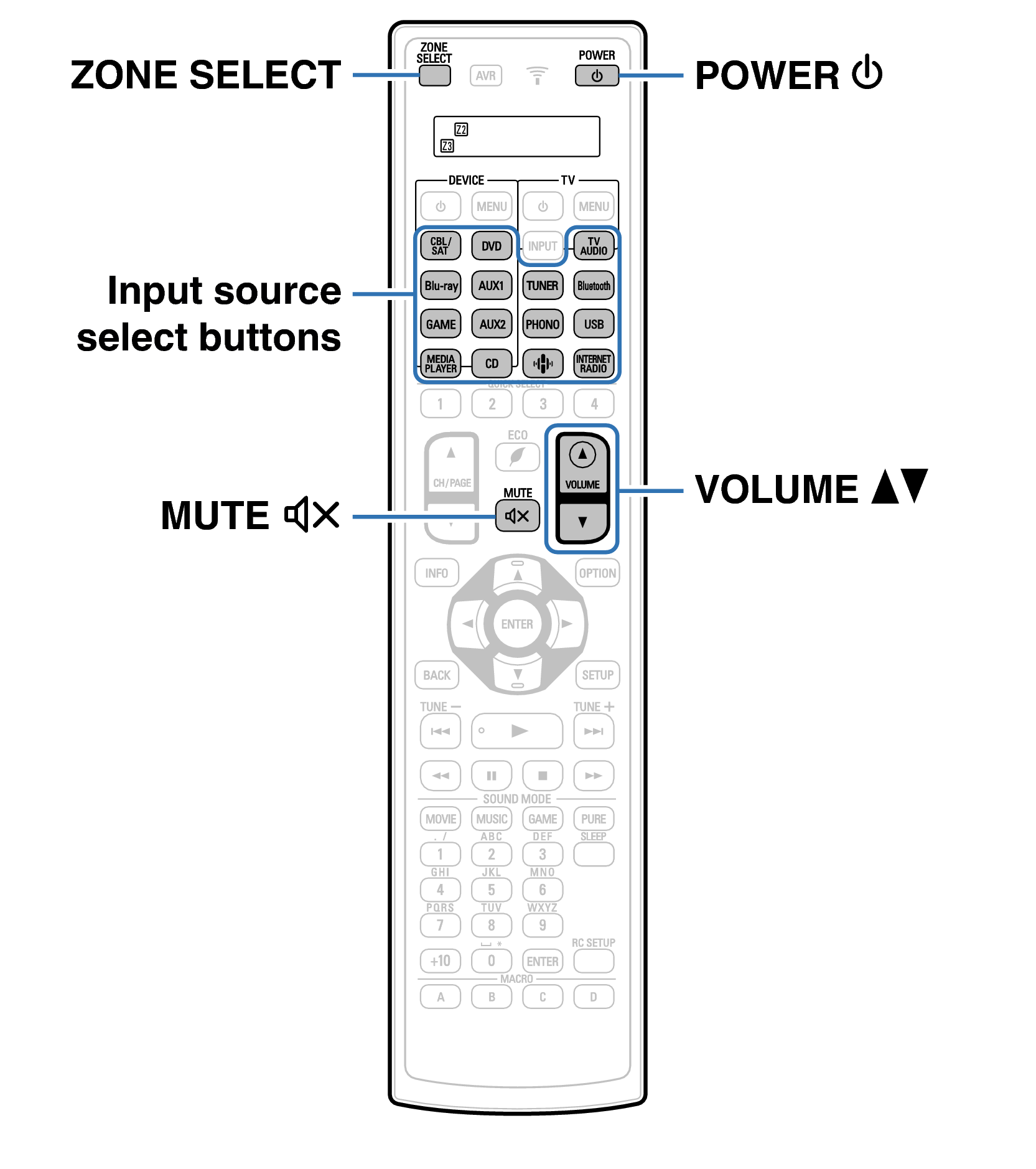

Ope ZONE RC1221
Press ZONE SELECT to switch the zone mode.

The Z2-waku or Z3-waku indicator lights.

Press POWER  Power Button to turn on the ZONE2 or ZONE3 power.

The MULTI ZONE indicator on the display lights.

Power in ZONE2 or ZONE3 can be turned on or off by pressing ZONE2 ON/OFF or ZONE3 ON/OFF on the main unit.

Press the input source select button to select the input source to be played.

The audio signal of the selected source is output to ZONE2 or ZONE3.

To perform an operation with the main unit, press ZONE2 SOURCE or ZONE3 SOURCE. Each time you press ZONE2 SOURCE or ZONE3 SOURCE, the input source changes.

Adjusting the volume (ZONE2/ZONE3)

Use VOLUME  kurosankaku Sankaku-Reverse to adjust the volume.

At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. link

Turn MASTER VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.

Turning off the sound temporarily (Muting) (ZONE2/ZONE3)

Press MUTE  Silent .

The sound is reduced to the level set at “Mute Level” in the menu. link

To cancel mute, either adjust the sound volume or press MUTE  Silent again.
