Playback

Video conversion function

This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV.

Pict VideoConversion X85

The MAIN ZONE Video Conversion function is compatible with the following formats: NTSC, PAL, SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.

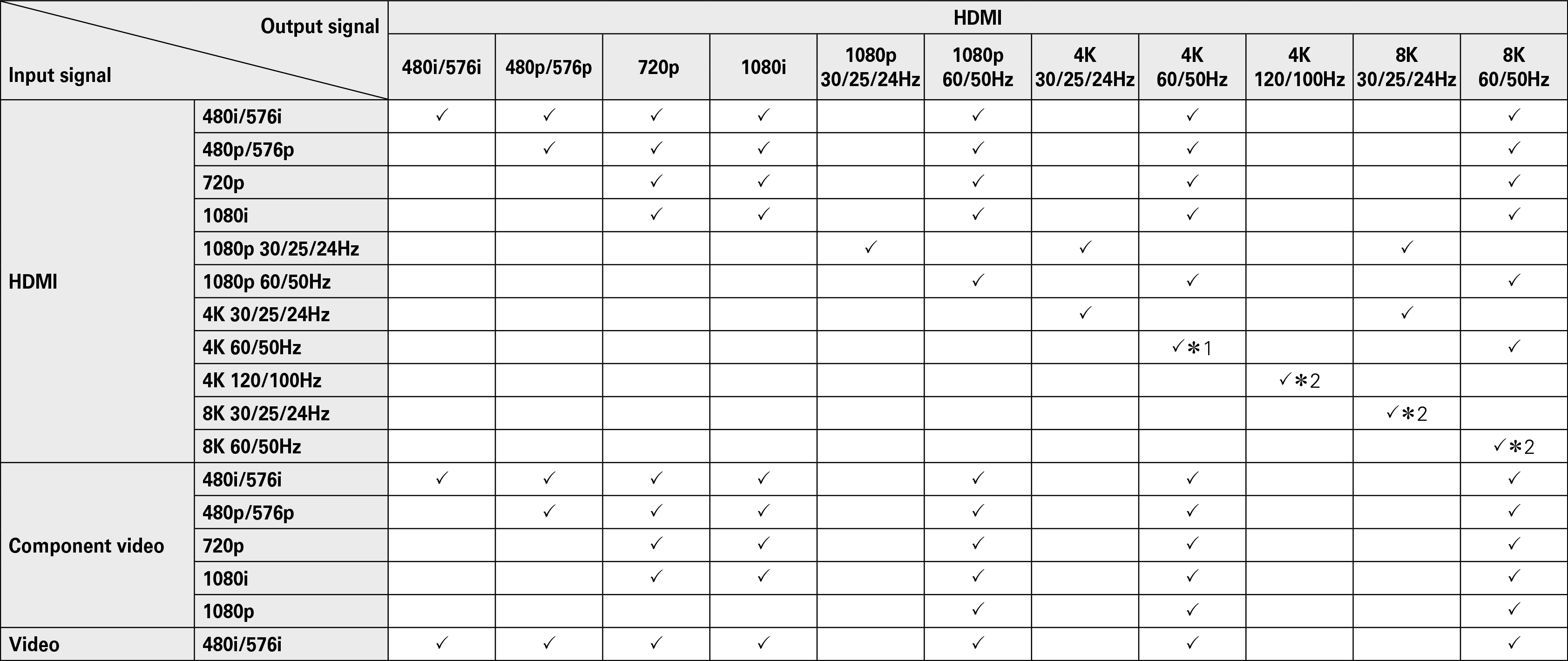

This unit can convert the input video signals to the resolution that is set for “Resolution” in the menu before outputting them to the TV. link

Pict VideoConversion A110

The HDMI connector on the front panel supports YCbCr 4:2:0 format only.

Only supported by the HDMI 7 connector.
