Operating devices

To operate an external device, press the input source button registered with the preset code, followed by one of the buttons in the following tables.

The input source name is displayed on the remote control unit when an external device is being operated.

The “TV” is displayed on the remote control unit when the TV is being operated.

To operate the menu of this unit, press AVR before operating the unit. The “AVR” is displayed on the remote control unit when this unit is being operated.

CBL/SAT group(Set top box for satellite (SAT)/cable TV (CBL)/Media player/IP TV) operation

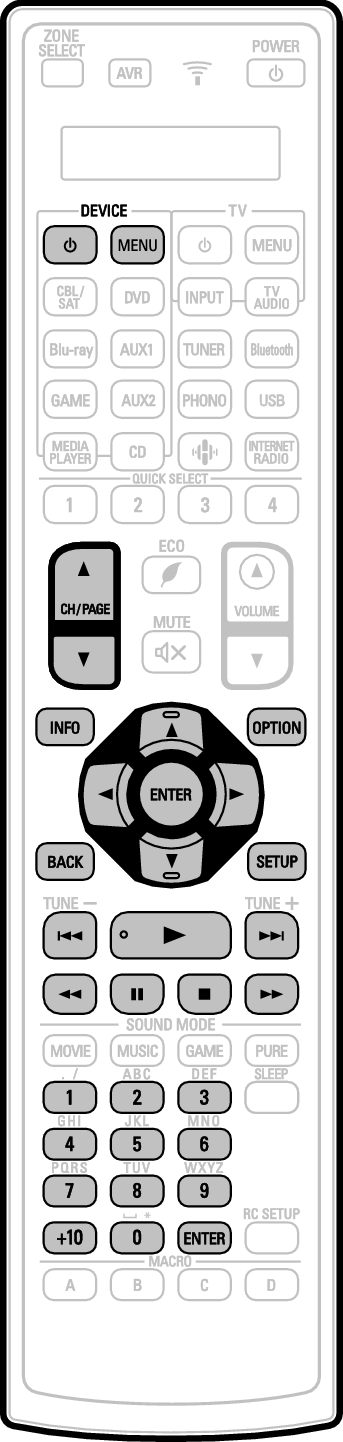

RC1221 CBL SAT

Operation buttons	Function
Operation buttons	Function
DEVICE	Power on/off
DEVICE MENU	Menu
CH/PAGE	Switch channels (up/down)
INFO	Information
OPTION	Sub menu, Option
	Cursor operation
ENTER(Cursor)	Enter
BACK	Back
SETUP	Home menu
	Skip chapter
	Playback
	Fast-reverse / Fast-forward
	Pause
	Stop
0 – 9, +10	Channel selection
ENTER(Number)	3 digit entry

Depending on the device, the DEVICE Power Button button only performs the power-on operation.

TV group(TV) operation

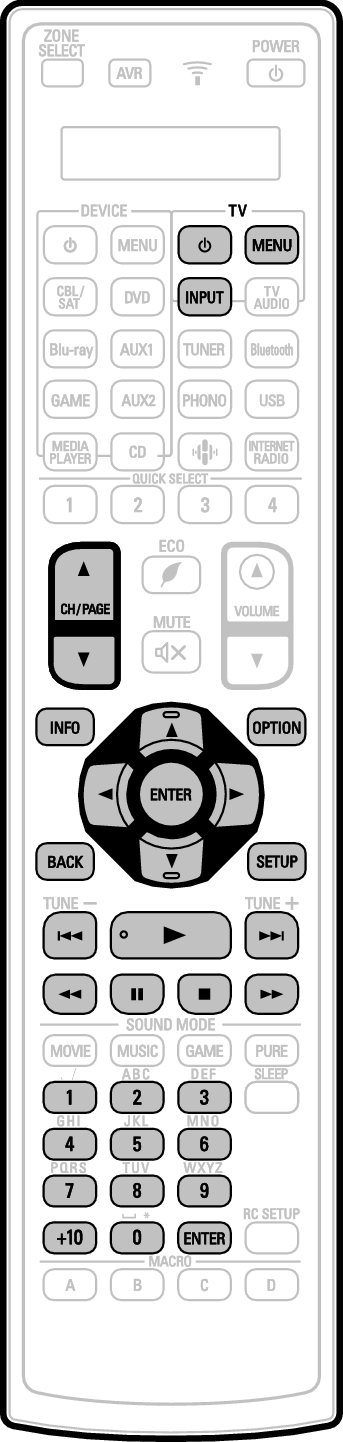

RC1221 TV

Operation buttons	Function
Operation buttons	Function
TV	TV power on/off
TV INPUT	Switch TV input
TV MENU	TV menu
CH/PAGE	Switch channels (up/down)
INFO	Information
OPTION	Sub menu, Option
	Cursor operation
ENTER(Cursor)	Enter
BACK	Back
SETUP	Setup
	Skip chapter
	Playback
	Fast-reverse / Fast-forward
	Pause
	Stop
0 – 9, +10	Channel selection
ENTER(Number)	3 digit entry

Depending on the device, the power may not be turned off for the DEVICE Power Button and TV buttons.

TV Power Button and TV INPUT buttons can be operated at any time without pressing the TV button.

VCR/PVR group(Video cassette recorder (VCR)/personal video recorder (PVR)) operation

RC1221 VCR

Operation buttons	Function
Operation buttons	Function
DEVICE	Power on/off
DEVICE MENU	Menu
CH/PAGE	Switch channels (up/down)
INFO	Information
OPTION	Sub menu, Option
	Cursor operation
ENTER	Enter
BACK	Back
SETUP	Setup
	Skip chapter
	Playback
	Fast-reverse / Fast-forward
	Pause
	Stop
0 – 9, +10	Select title, chapter or channel selection

Depending on the device, the power may not be turned off for the DEVICE Power Button and TV buttons.

BD/DVD group(Blu-ray Disc player/HD-DVD player/DVD player/DVD recorder) operation

RC1221 BD DVD

Operation buttons	Function
Operation buttons	Function
DEVICE	Power on/off
DEVICE MENU	(Popup) Menu
CH/PAGE	Switch channels (up/down)
INFO	Information
OPTION	Top menu
	Cursor operation
ENTER	Enter
BACK	Back
SETUP	Setup
	Skip chapter
	Playback
	Fast-reverse / Fast-forward
	Pause
	Stop
0 – 9, +10	Select title, chapter or channel selection

Depending on the device, the DEVICE Power Button button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.)

Audio group(CD player/CD recorder) operation

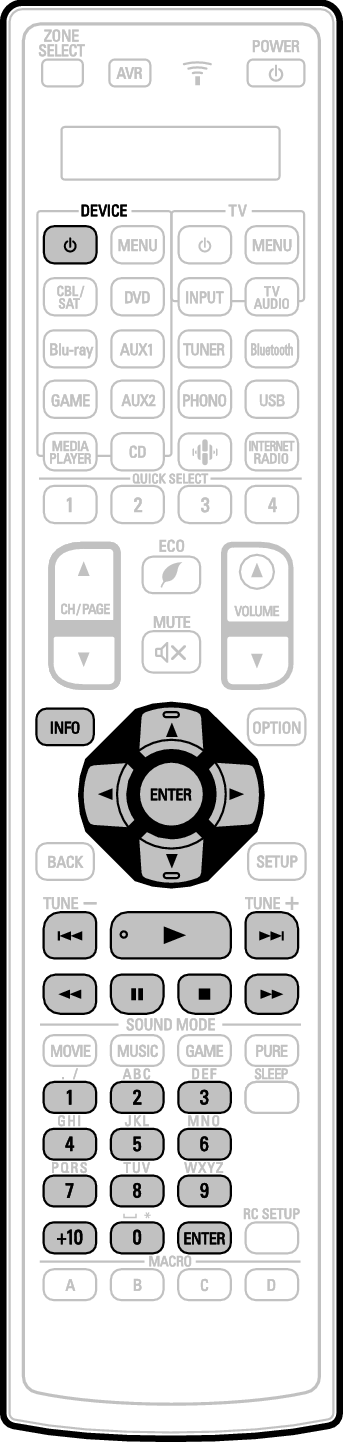

RC1221 CD

Operation buttons	Function
Operation buttons	Function
DEVICE	Power on/off
INFO	Information
	Cursor operation
ENTER	Enter
	Skip track
	Playback
	Fast-reverse / Fast-forward
	Pause
	Stop
0 – 9, +10	Track selection

Depending on the device, the DEVICE Power Button button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.)
