Remote control unit

Name RC1196

ECO Mode button

This switches to ECO Mode. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Input source select buttons

These select the input source. link

Channel level button (CH LEVEL)

Adjusting the volume of the speakers. link


Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items. link

Name RC1196a

ENTER button

This determines the selection. link

BACK button

This returns to the previous screen. link

System buttons

These perform playback related operations. link

Skip buttons ( Skip-Left , Skip-Right )

Play/pause button ( Triangle Right / Pause )

SOUND MODE buttons ( Triangle Left   Triangle Right )

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off. link

Preset memory button (MEMORY)

The current broadcast station that is preset. link

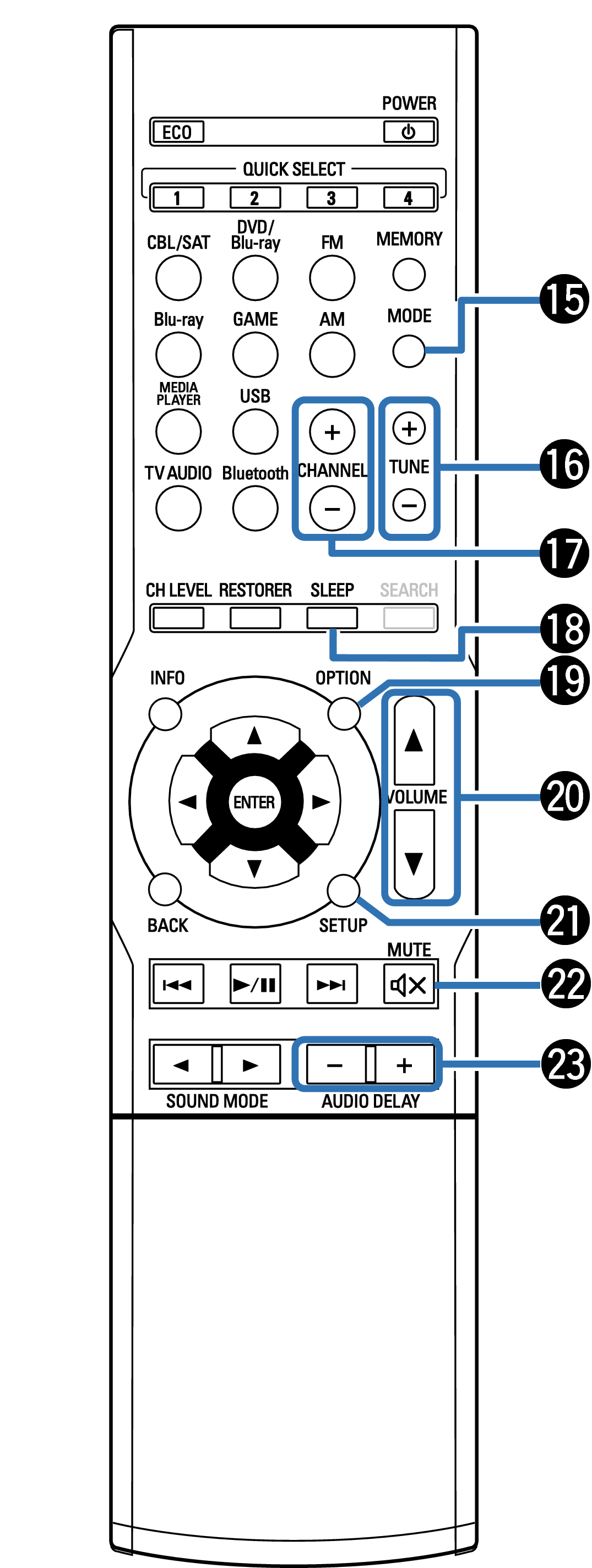

Name RC1196b

Tuning mode select button (MODE)

This switches the tune mode. link

Tuning buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

Channel buttons (CHANNEL +, –)

These select preset radio stations. link

SLEEP button

This sets the sleep timer. link

OPTION button

This displays the option menu on the TV screen. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level. link

SETUP button

This displays the menu on the TV screen. link

MUTE button ( Silent )

This mutes the output audio. link

AUDIO DELAY buttons (+, –)

Compensates for incorrect timing between video and audio. link

The SEARCH button on this unit cannot be used.
