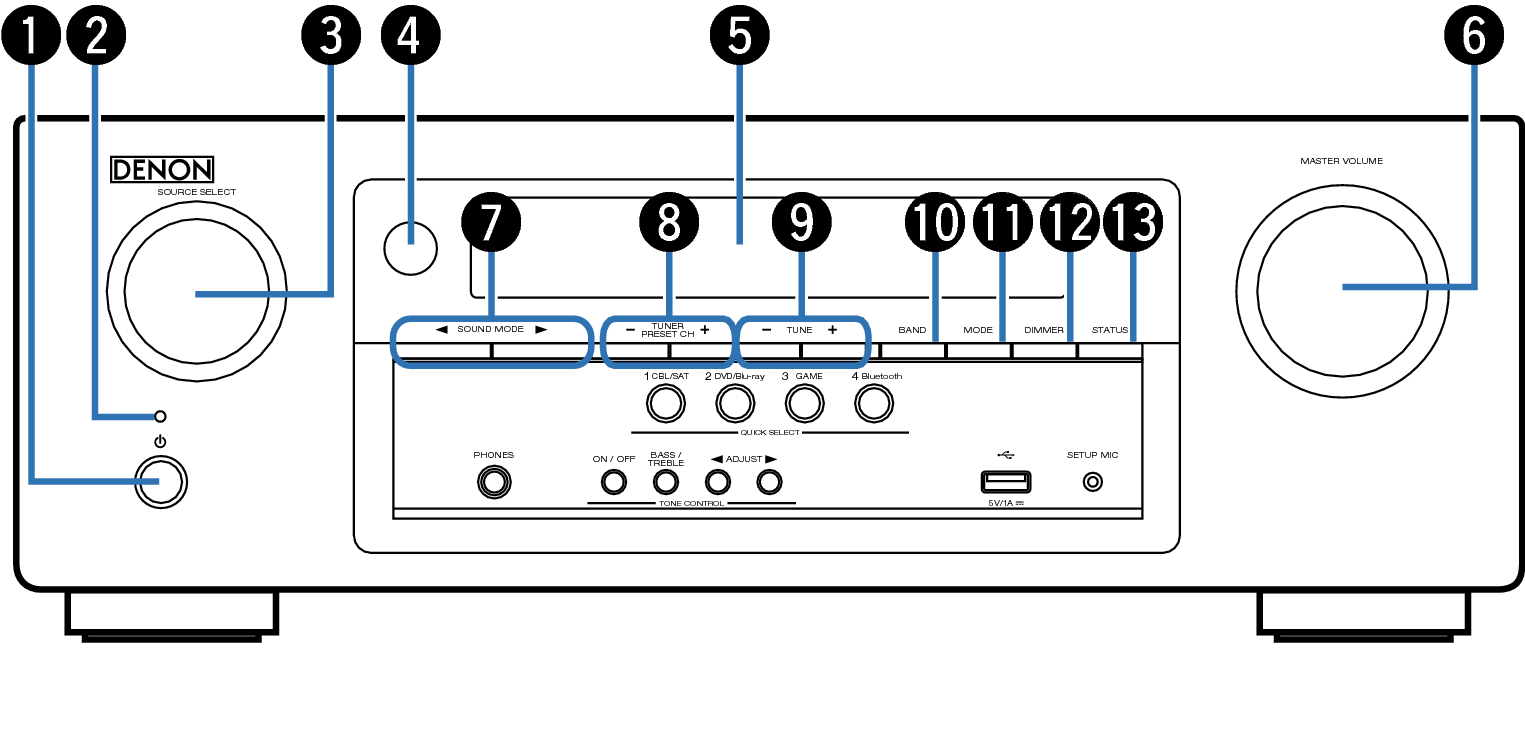

Front panel
Power operation button (
)
Used to turn the power on/off (standby).
link
Power indicator
This is lit as follows according to the power status:
Green : Power on
Off: Normal standby
Red:
When “HDMI PassThrough”link is set to “On”
When “BluetoothStandby”link is set to “On”
SOURCE SELECT knob
This selects the input source. link
Remote control sensor
This receives signals from the remote control unit. link
Display
This displays various pieces of information. link
MASTER VOLUME knob
This adjusts the volume level. link
SOUND MODE buttons (
)
These select the sound mode. link
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. link
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. link
Reception band select button (BAND)
This switches the reception band. link
Tuning mode select button (MODE)
This switches the tuning mode. link
DIMMER button
Each press of this switches the brightness of the display. link
STATUS button
Each press of this switches the status information that is shown on the display. link

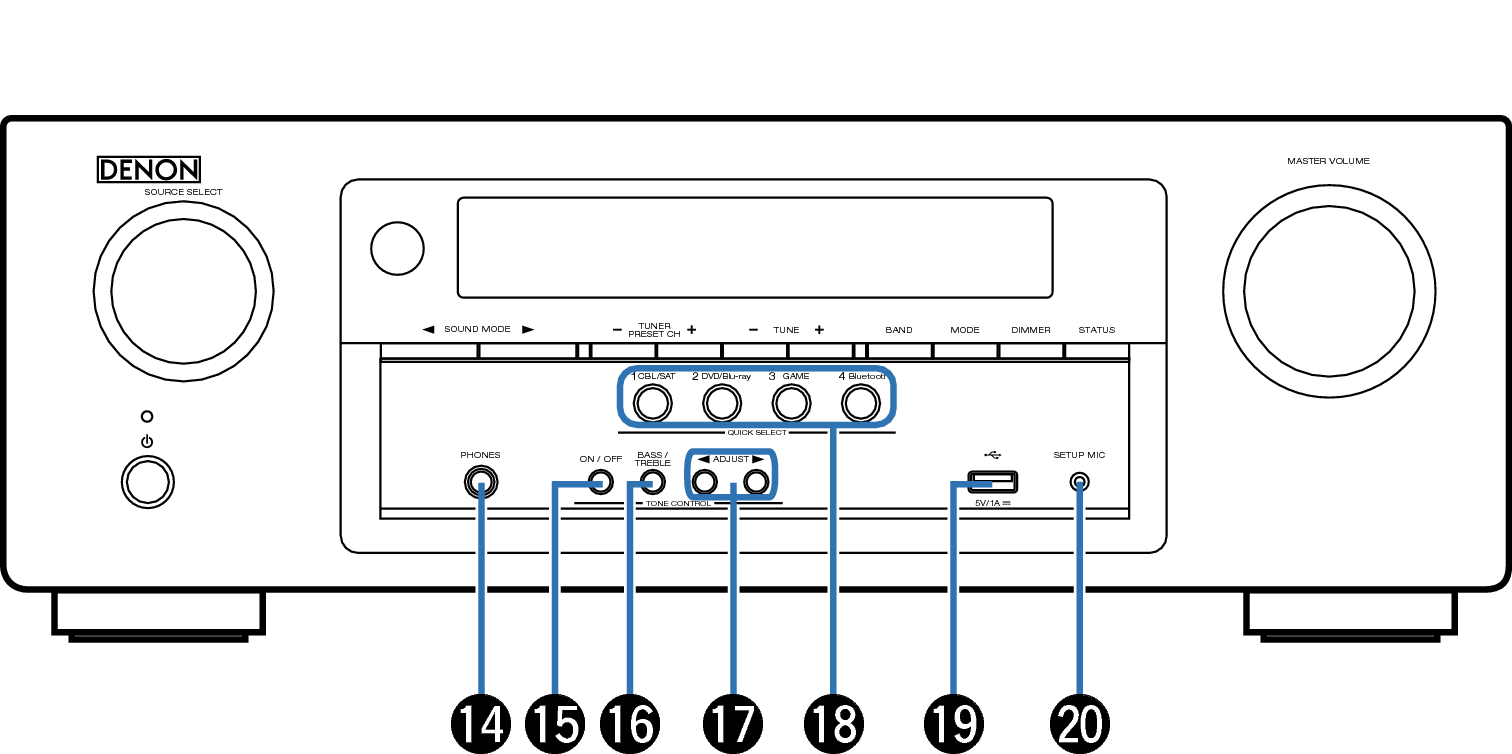

Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the SUBWOOFER connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
TONE CONTROL ON/OFF button
Set the tone control function to on/off. link
BASS/TREBLE button
Selects the range for which to adjust the tone. link
Tone adjustment buttons (ADJUST )
Adjusts the tonal quality of the sound. link
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. link
USB port
This is used to connect USB storages (such as USB memory devices) and the USB cable supplied. link
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone. link
BASS/TREBLE button and ADJUST buttons can be operated when the “Tone”link setting is “On”.
