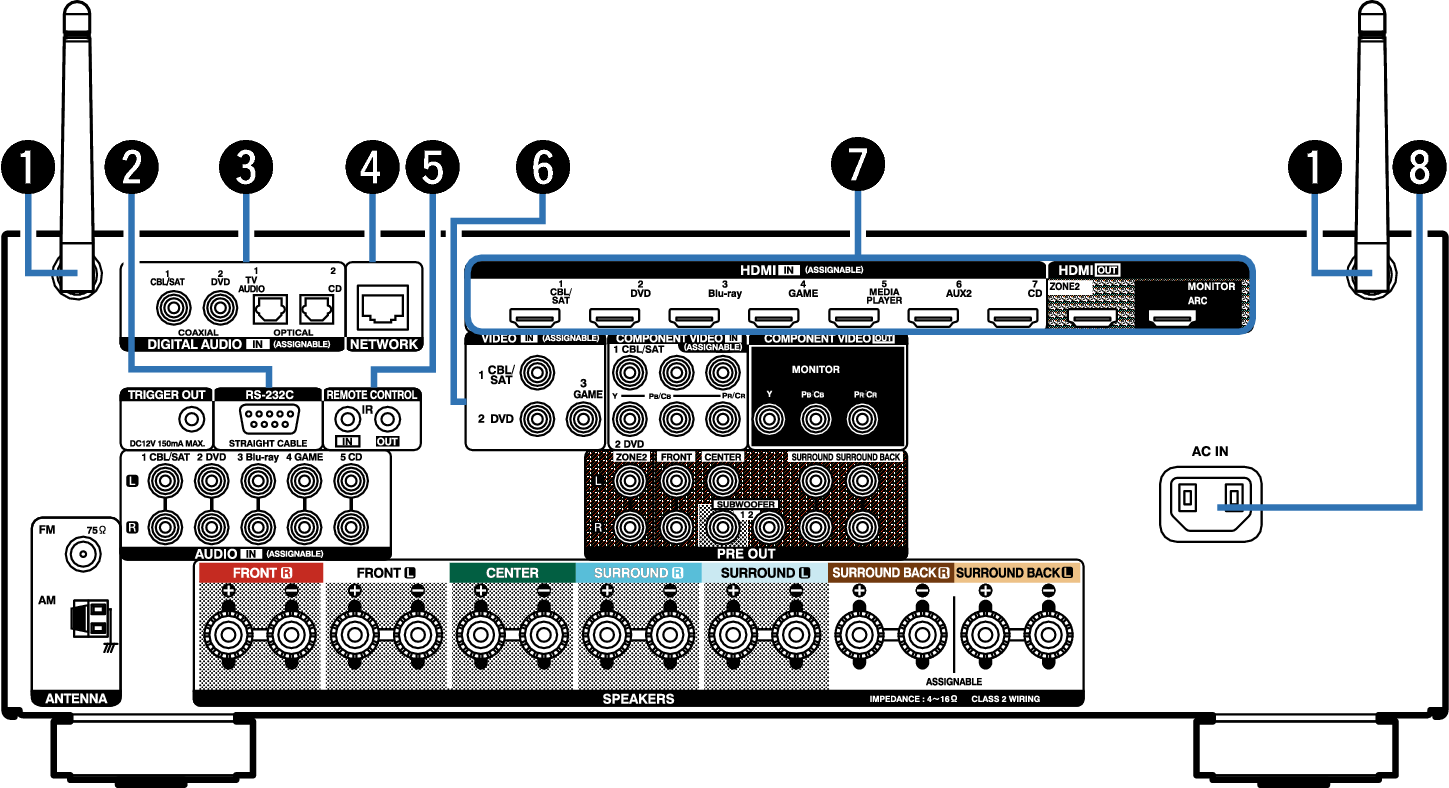

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

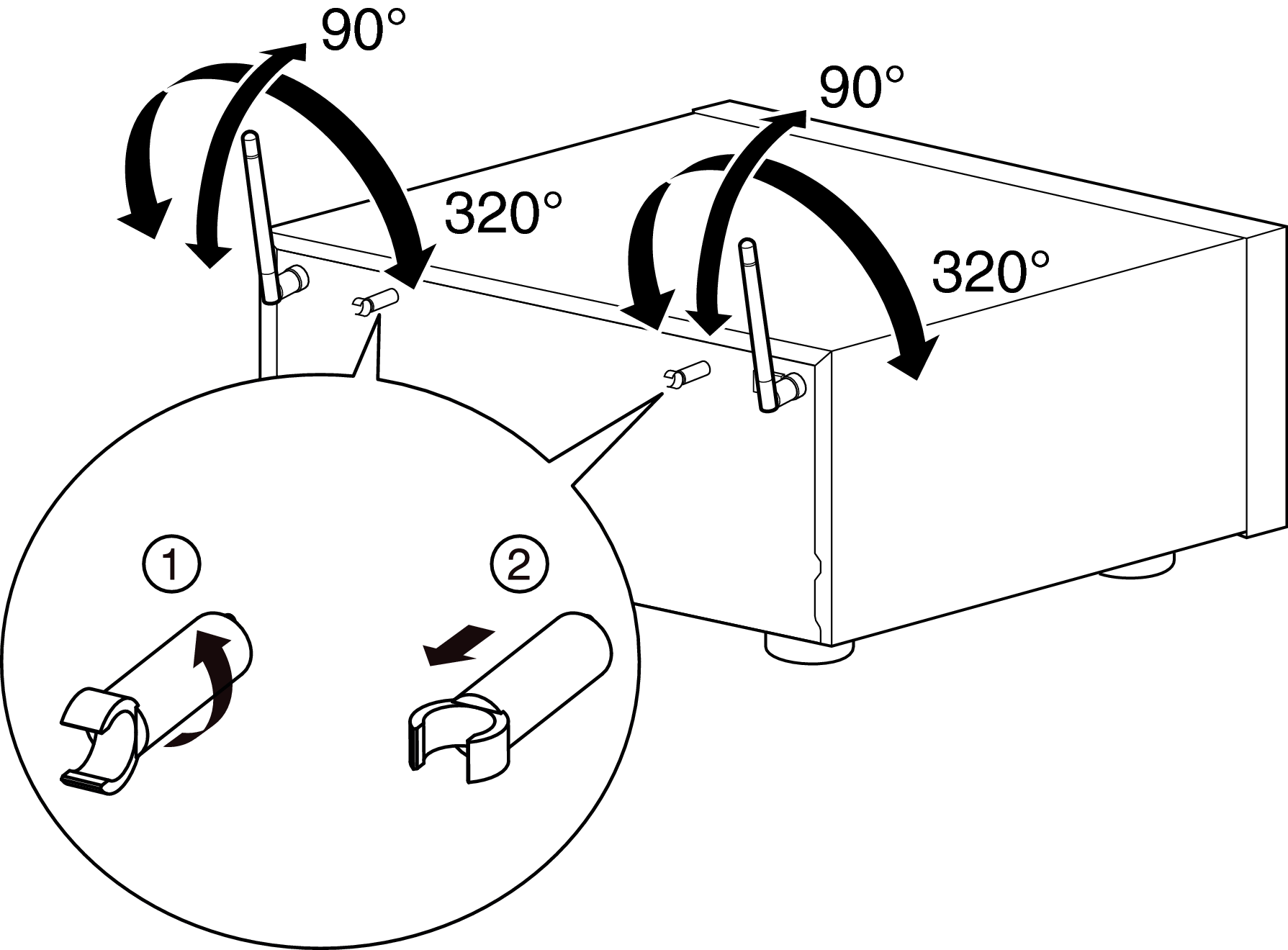

The antenna clip can be removed from the rear panel.
The antenna clip is needed when transporting this unit. Keep it in a safe place.
Attach the antenna clip by following the steps for removing it in reverse.
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Digital audio connectors (DIGITAL AUDIO)
Used to connect to a LAN cable when connecting to a wired LAN network. link

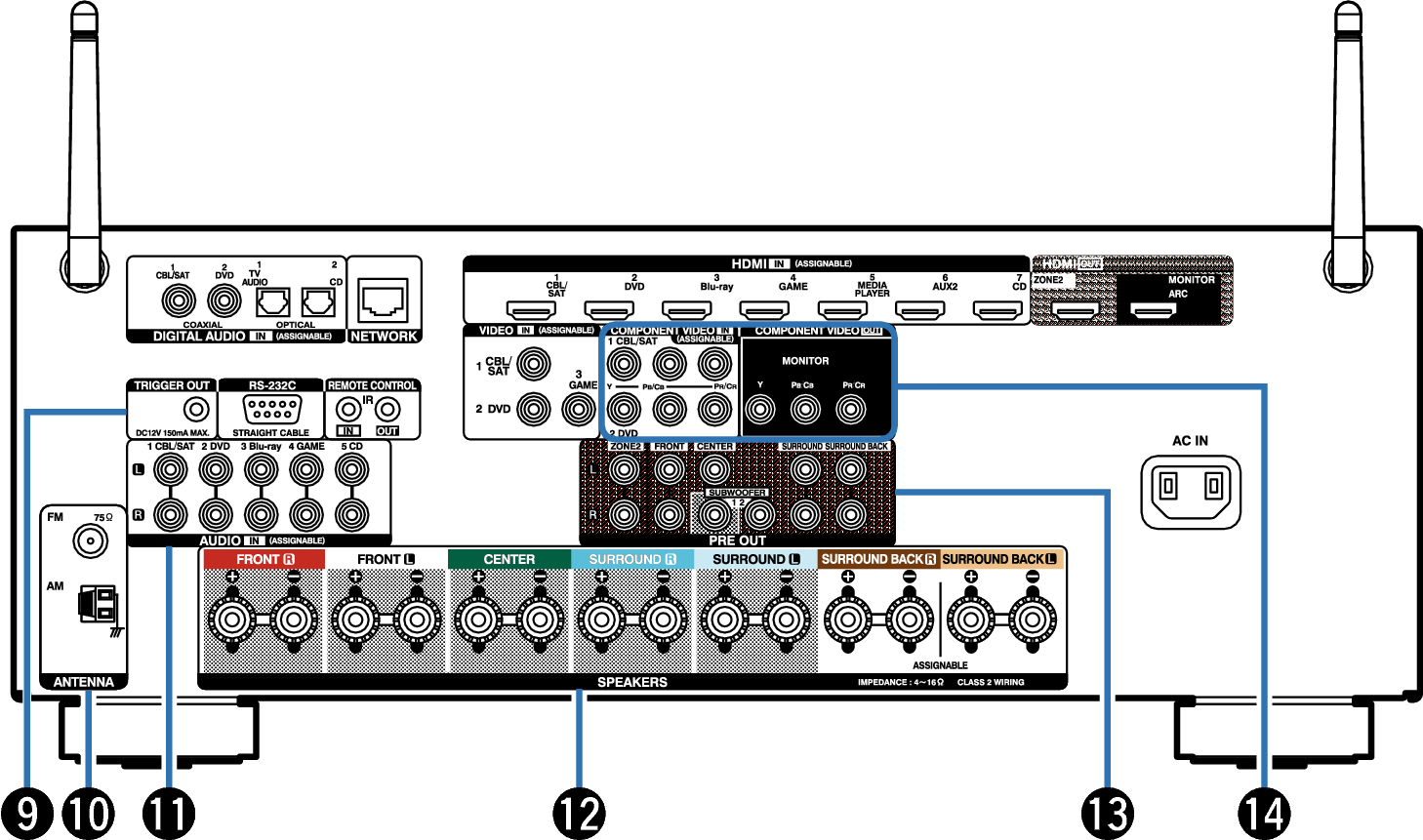

REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link
Video connectors (VIDEO)
AC inlet (AC IN)
Used to connect the power cord. link
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function. link
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Analog audio connectors (AUDIO)
Speaker terminals (SPEAKERS)
Used to connect speakers. link
PRE OUT connectors
Component video connectors (COMPONENT VIDEO)
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
