Sound bar

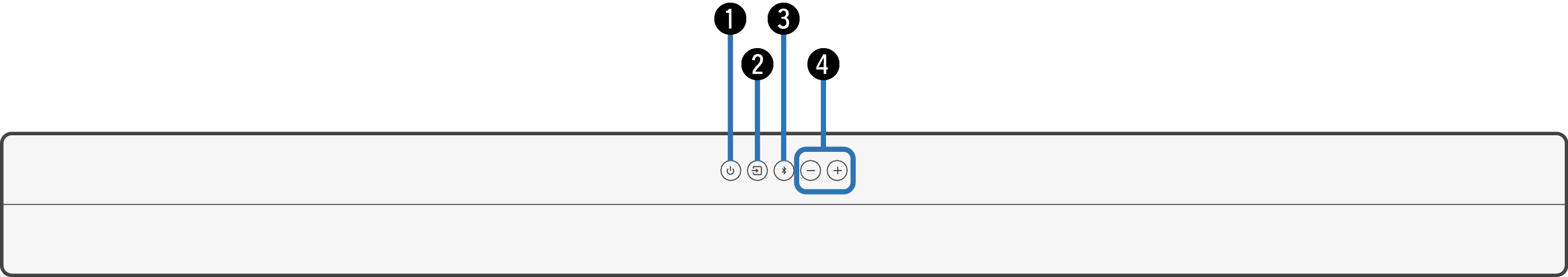

Top panel
Power operation button ( )
Turns the sound bar power on/off (standby). link
Links to sound bar power and turns the subwoofer power on/off (standby).
Input source button ( )
This selects the input source. link
Switches the input source each time the button is pressed.
Bluetooth button ( )
Switches the input source to “Bluetooth”. link
Used to pair with Bluetooth devices. link
Volume buttons (+, –)
These adjusts the volume level. link
Front panel
Status LED
The status, such as for the power, input source, audio format, or sound mode is displayed. link
Remote control sensor
This receives signals from the remote control unit. link
Status LED

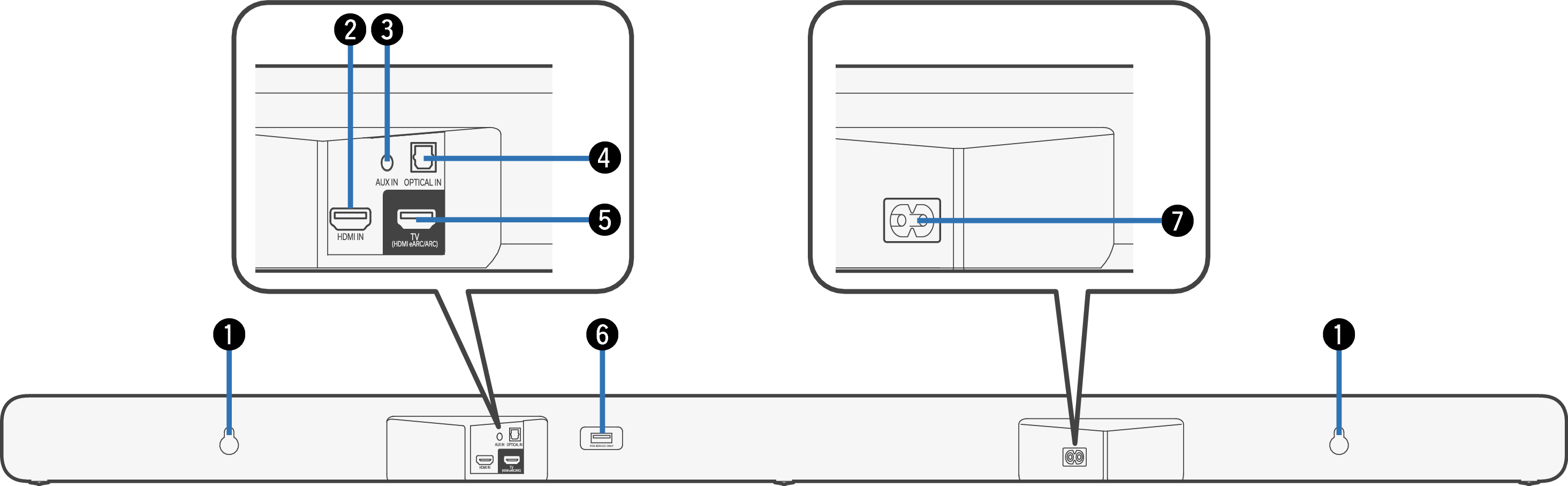

Rear panel
Wall hook hole
Used to mount the sound bar on a wall. link
HDMI IN connector
Used to connect to the HDMI equipment with an HDMI cable. link
Analog audio input connector (AUX IN)
Use a commercially available 3.5 mm stereo audio cable to connect a TV with an AUX audio output connector. link
Optical digital input connector (OPTICAL IN)
Use the included optical digital cable to connect a TV with an optical digital terminal. link
HDMI connector (TV (HDMI eARC/ARC))
Use the included HDMI cable to connect an eARC or ARC function-compatible TV. link
USB port
Service terminal. This port does not support playback of music from USB flash drives.
AC inlet
Used to connect the power cord. link
