Subwoofer

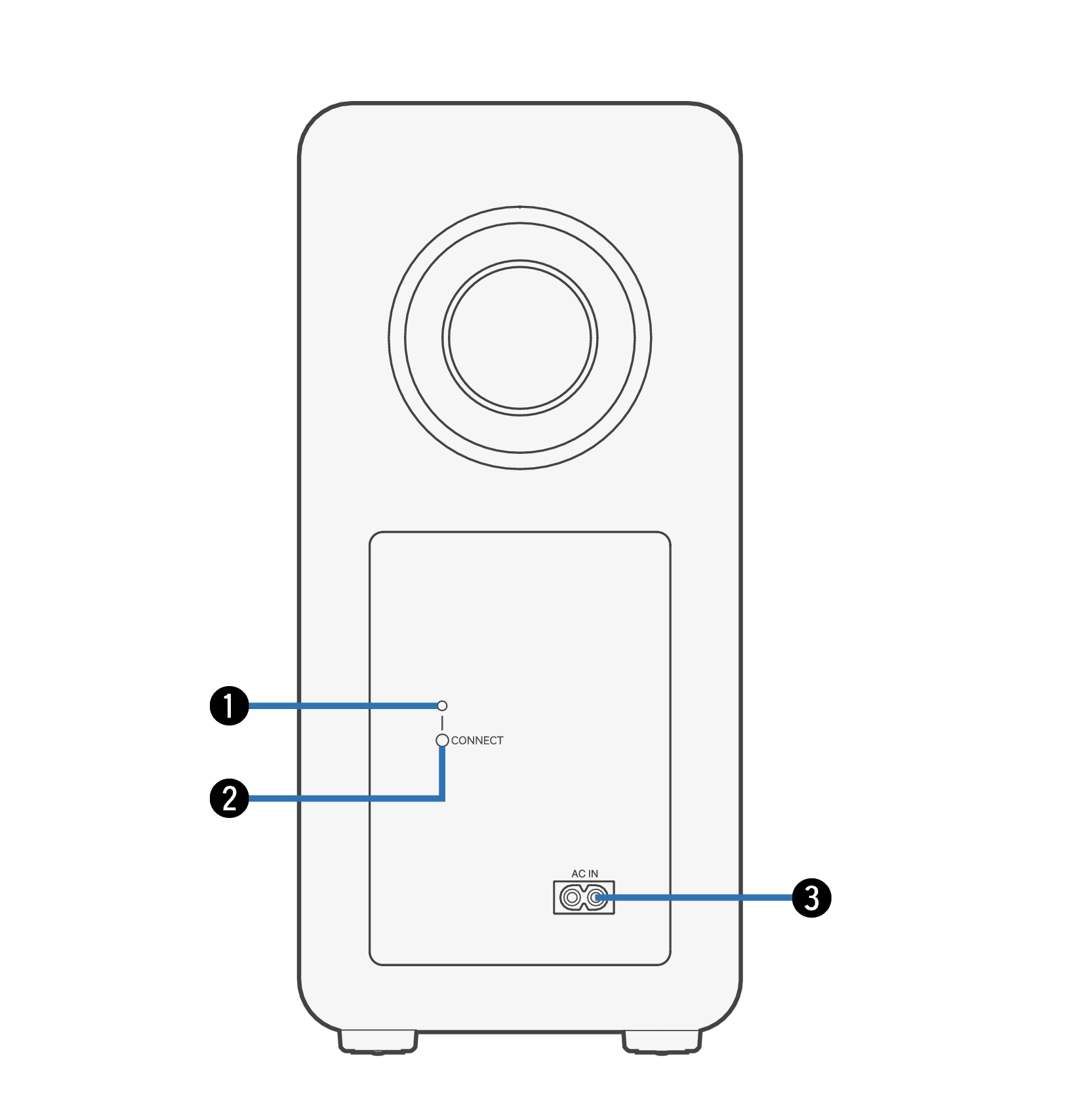

Rear panel

Name Sub Rear S517

Status LED

Displays subwoofer status.

LED indication	Status
	When subwoofer power is standby

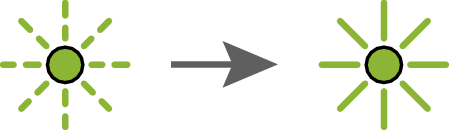

	When the sound bar and subwoofer are wirelessly connected

The sound bar and subwoofer are wirelessly connected as the factory default. If no audio is output from the subwoofer, wirelessly connect the sound bar and subwoofer again. link

CONNECT button

Used to wirelessly connect the sound bar and subwoofer. link

AC inlet (AC IN)

Used to connect the power cord. link
