Switching the standby linking via HDMI control function on or off

In the default settings, the HDMI control automatically puts the unit into standby mode, linked to the TV's power standby operation. When the standby linking via HDMI control function is turned off, music playback can continue without this unit switching to standby, even if the TV is set to standby while a music player or other device is connected and playing.

Press and hold MOVIE for 5 seconds or more.

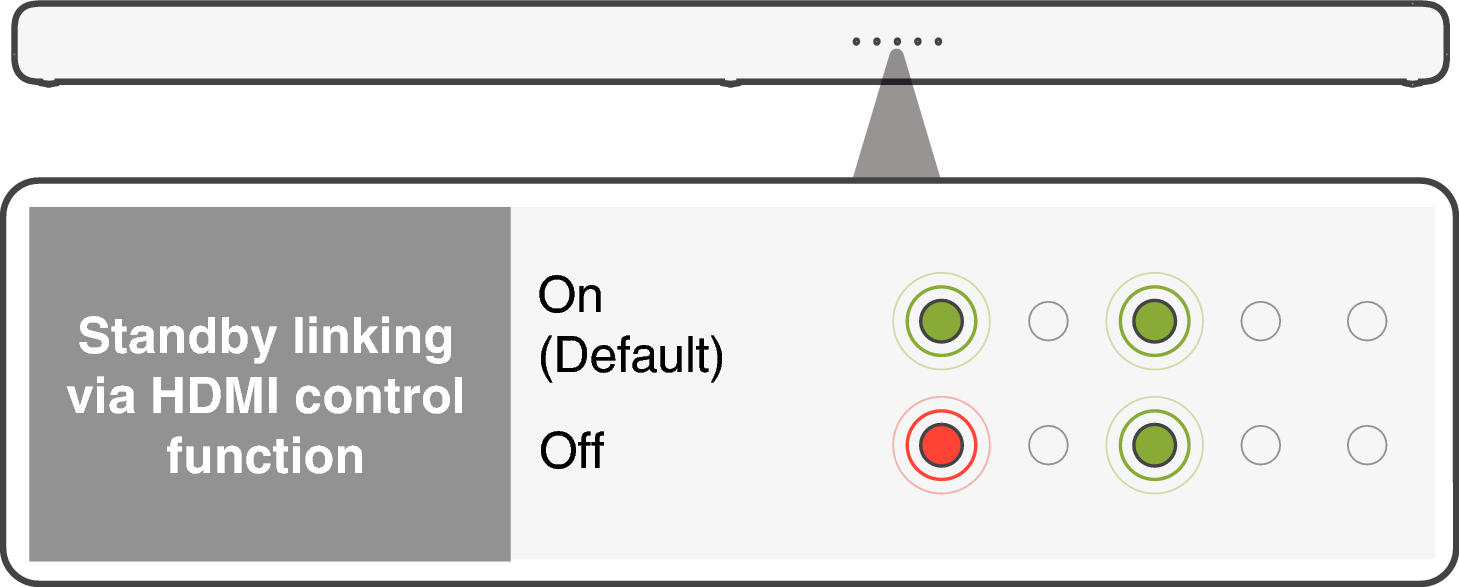

The standby linking via HDMI control function switches on or off and the status LED blinks as indicated below.

LED S517 StbyLink
