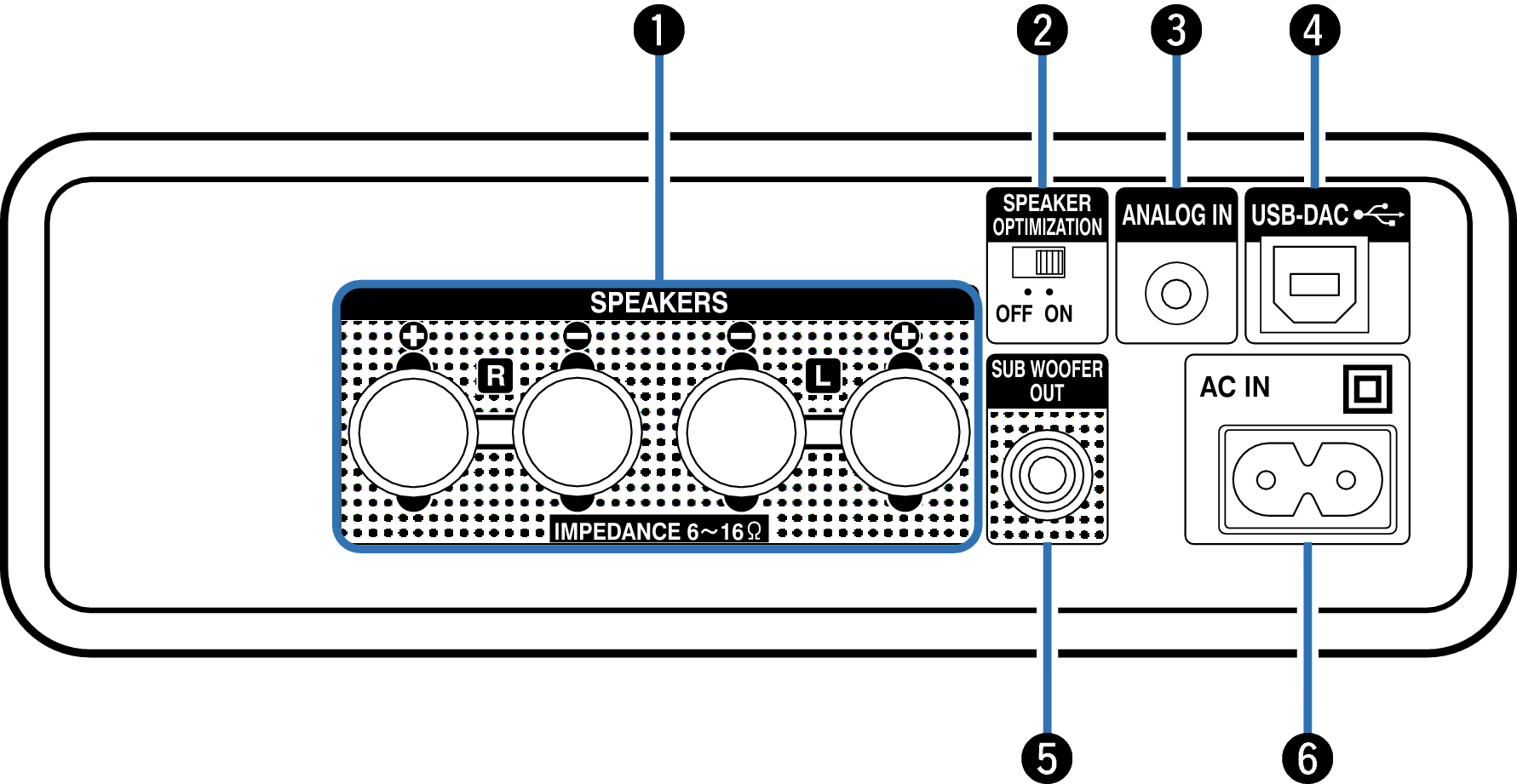

Rear panel

Name Rear N2

Speaker terminals (SPEAKERS)

Used to connect speakers. link

Speaker Optimization switch (SPEAKER OPTIMIZATION)

This switches the Speaker Optimization function on/off. link

Analog audio input terminal (ANALOG IN)

Use a stereo mini plug cable (sold separately) to connect between this terminal and a headphones jack on a portable music player, etc. link

USB digital audio input terminal (USB-DAC USB DAC )

Used to connect to a computer with a USB port. link

Subwoofer terminal (SUB WOOFER OUT)

Used to connect a subwoofer with a built-in amplifier. link

AC inlet (AC IN)

Used to connect the supplied power cord. link
