Connections

NOTE

Do not plug in the power cord until all connections have been completed.

Do not bundle power cords with connection cables. Doing so can result in humming or noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

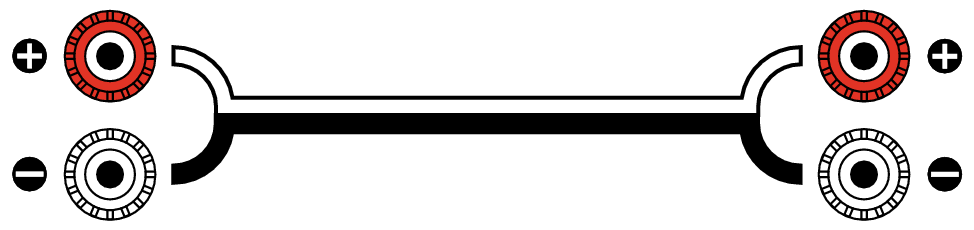

Speaker cable

Connection_Cable I

Subwoofer cable

Connection_Cable B

Optical cable

Connection_Cable D

Coaxial digital cable

Connection_Cable C

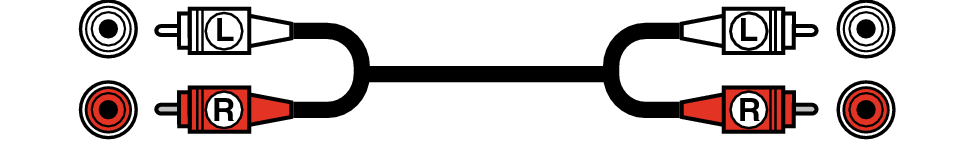

Audio cable

Connection_Cable A

USB Cable

Connection_Cable S

LAN cable

Connection_Cable M

IR control cable
(supplied)

Connection_Cable Mono
