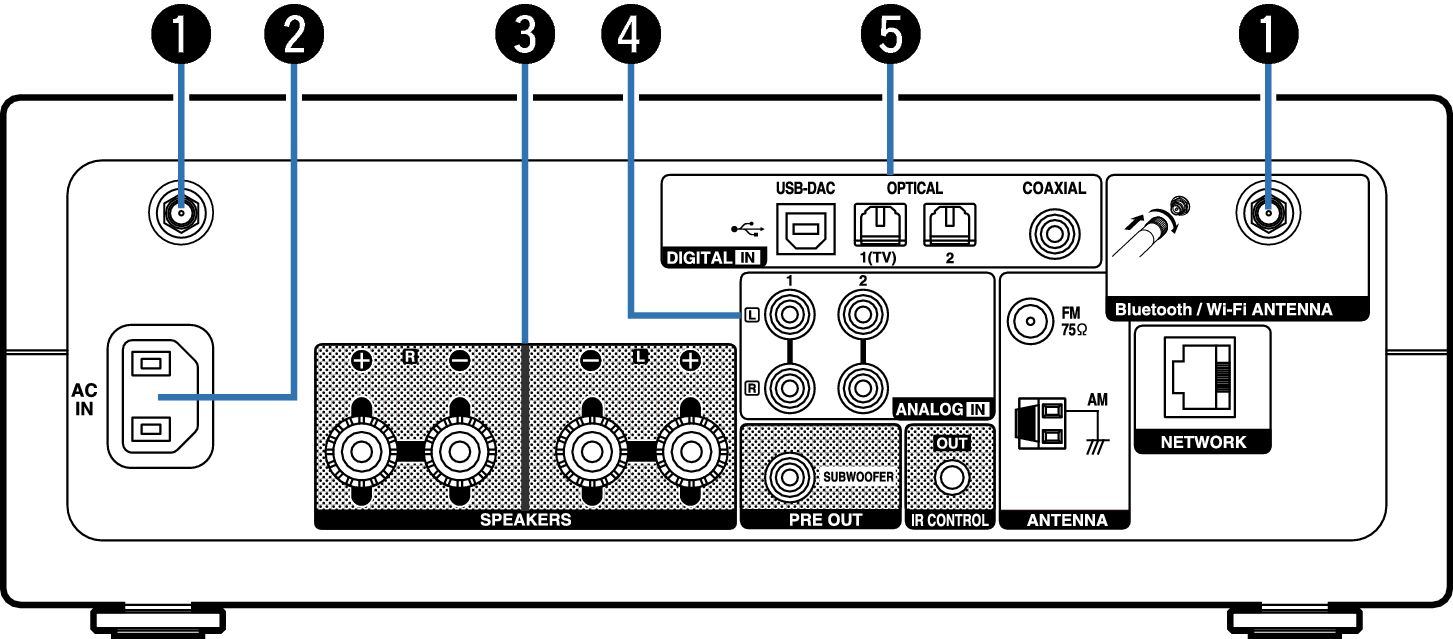

Rear panel

Name Rear PMA150HE3 small

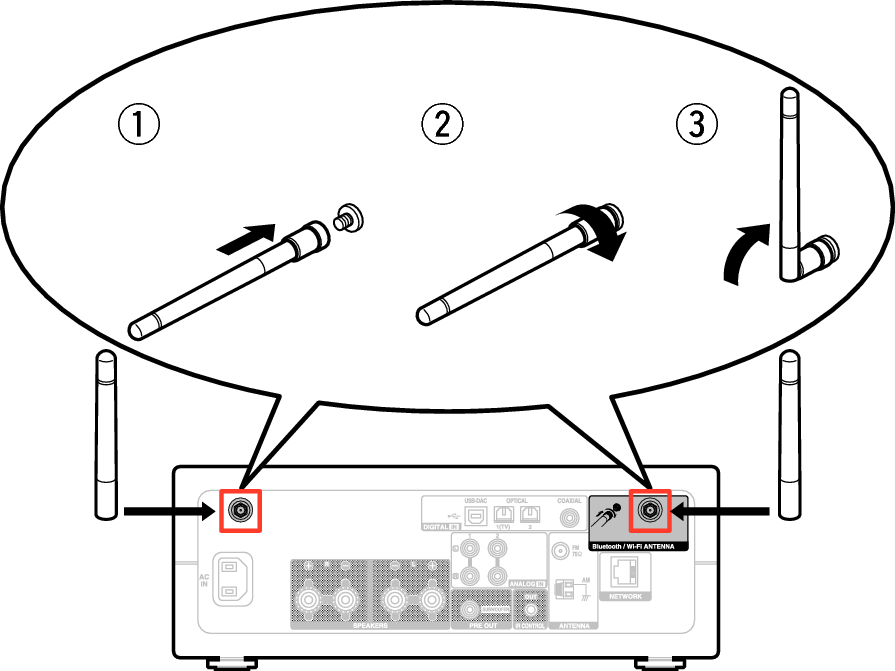

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle PMA150HE3

AC inlet (AC IN)

Used to connect the power cord. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

ANALOG IN connectors

Connecting to a device with analog audio output connectors. link

DIGITAL IN connectors

Connecting to a device with digital audio output connectors. link

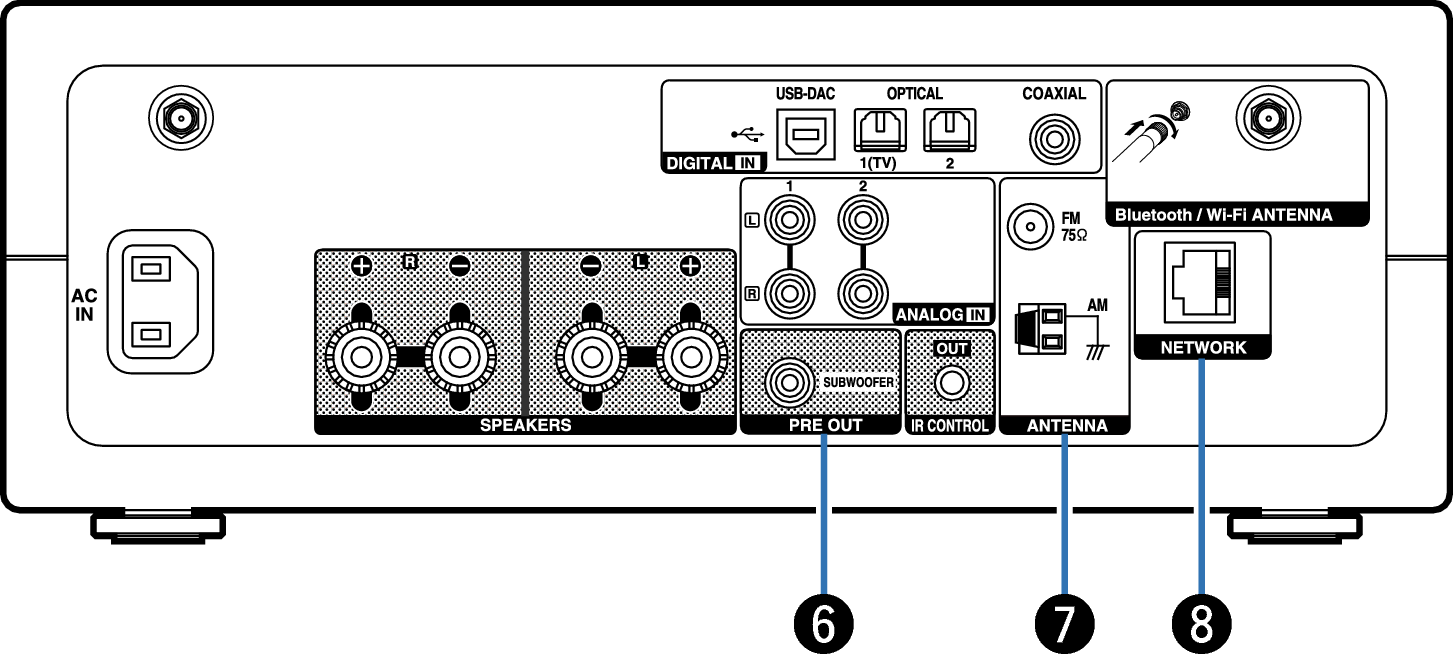

Name Rear PMA150HE3 small 2 v01

PRE OUT connector

Used to connect a subwoofer with a built-in amplifier. link

Antenna terminals (ANTENNA)

Used to connect FM room antennas and AM loop antennas. link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link
