Connect and play back from an analog device

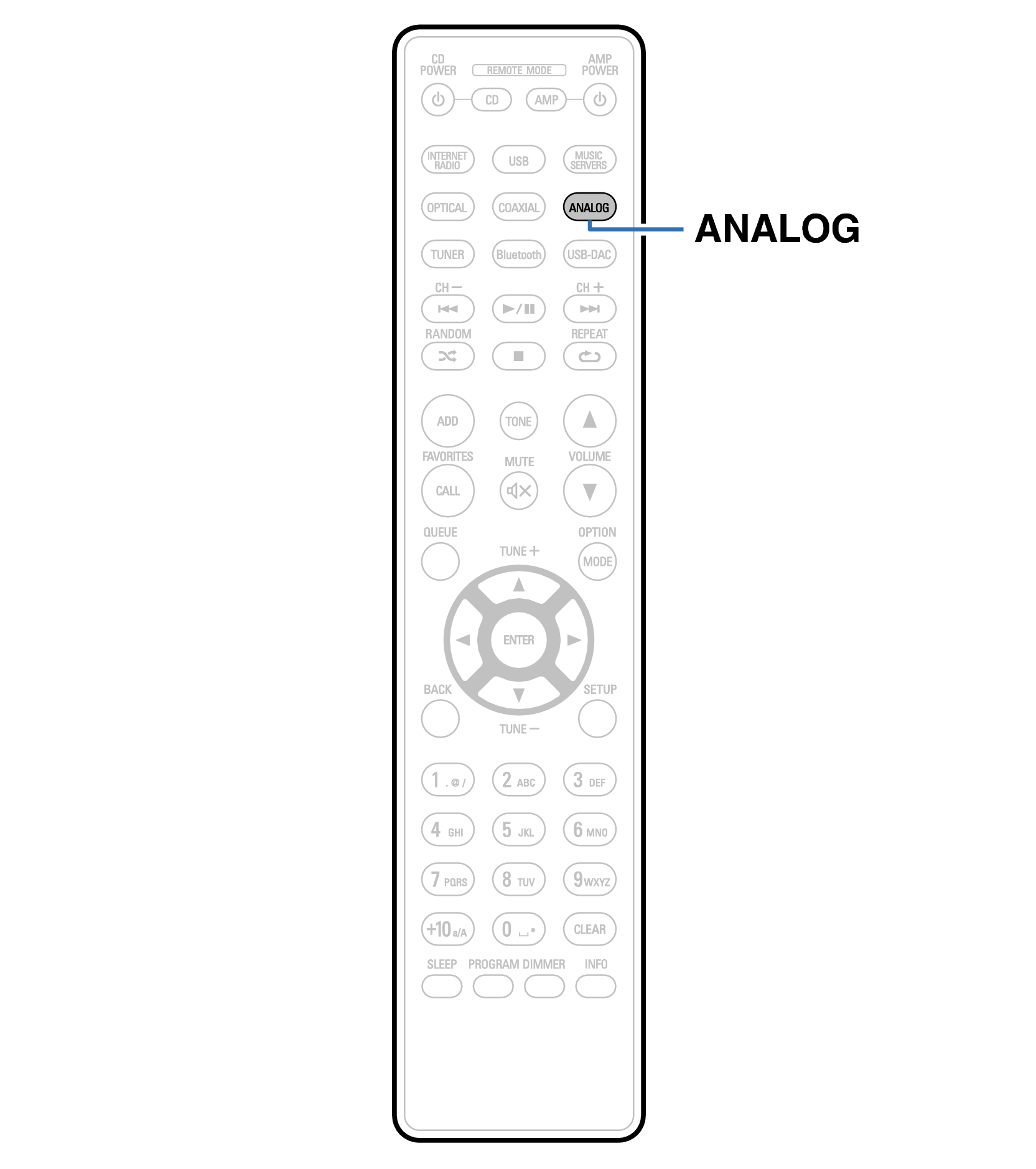

Ope Analog RC1233
Prepare for playback.

Check the connection, then turn on this units. (Connecting an analog devicelink)

Press ANALOG to switch the input source to “Analog 1” or “Analog 2”.
Play the component connected to this unit.
