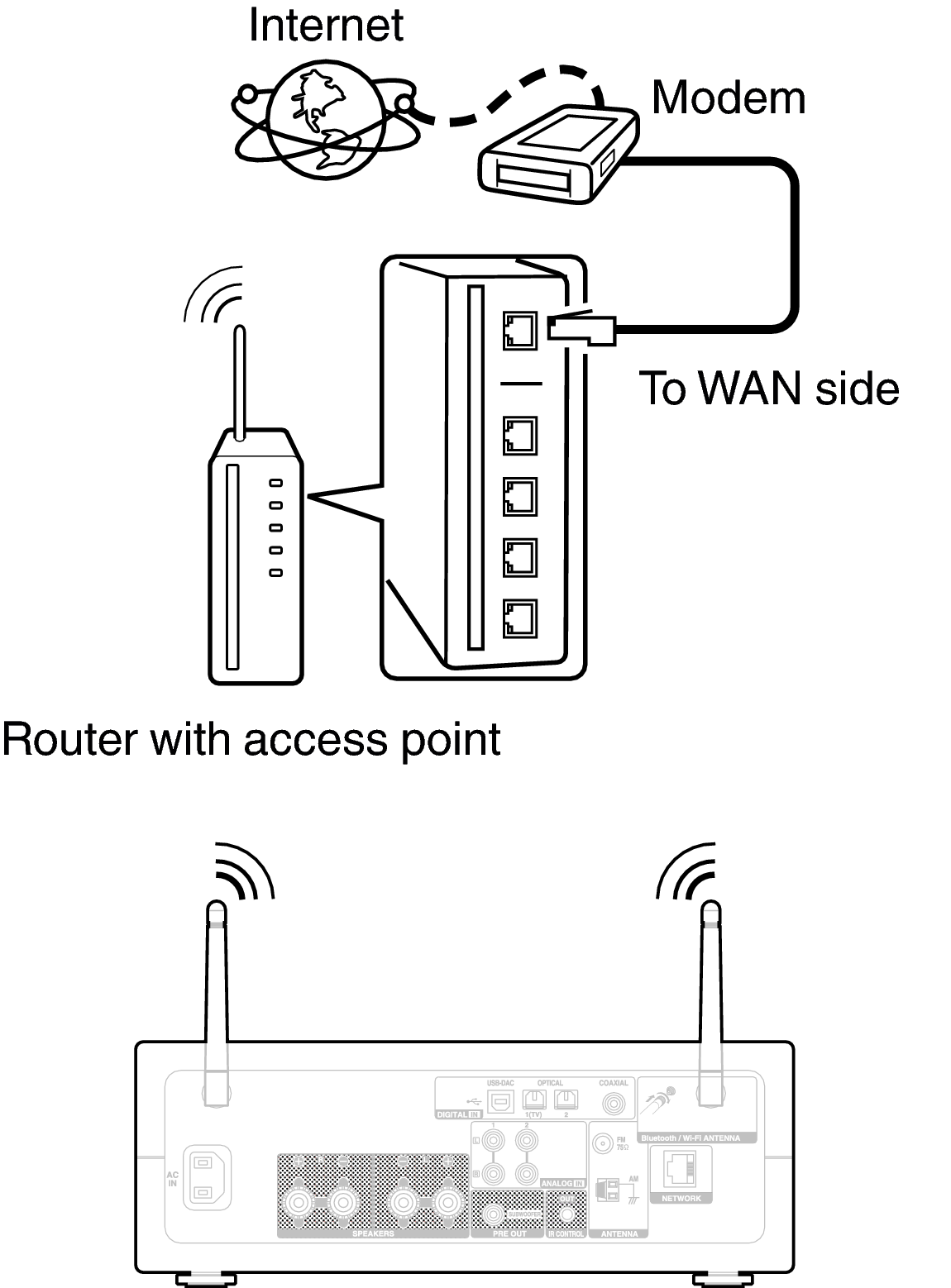

When connecting to the network via wireless LAN, connect the external antennas for Bluetooth/wireless connectivity connection to the rear panel and stand them upright.
See “Wi-Fi Setup” on how to connect to a wireless LAN router. link
When using this unit, we recommend you use a router equipped with the following functions:
Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.
Only use a shielded STP or ScTP LAN cable (readily available at electronics stores). (CAT-5 or greater recommended)
The normal shielded-type LAN cable is recommended. If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.
When using this unit connected to a network with no DHCP function, configure the IP address, etc. in “Network”. link
The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details.
This unit is not compatible with PPPoE. A PPPoE compatible router is required if your contracted line is not set using PPPoE.
Do not connect a NETWORK connector directly to the LAN port/ Ethernet connector on your computer.
Various online services may be discontinued without prior notice.
